| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (427-15-11004) | TRANSMISSION ASS'Y | 50029- | ||
| (427-15-11003) | TRANSMISSION ASS'Y | 50002-50028 | ||
| (427-15-00013) | TRANSMISSION ASS'Y | 50001-50001 | ||

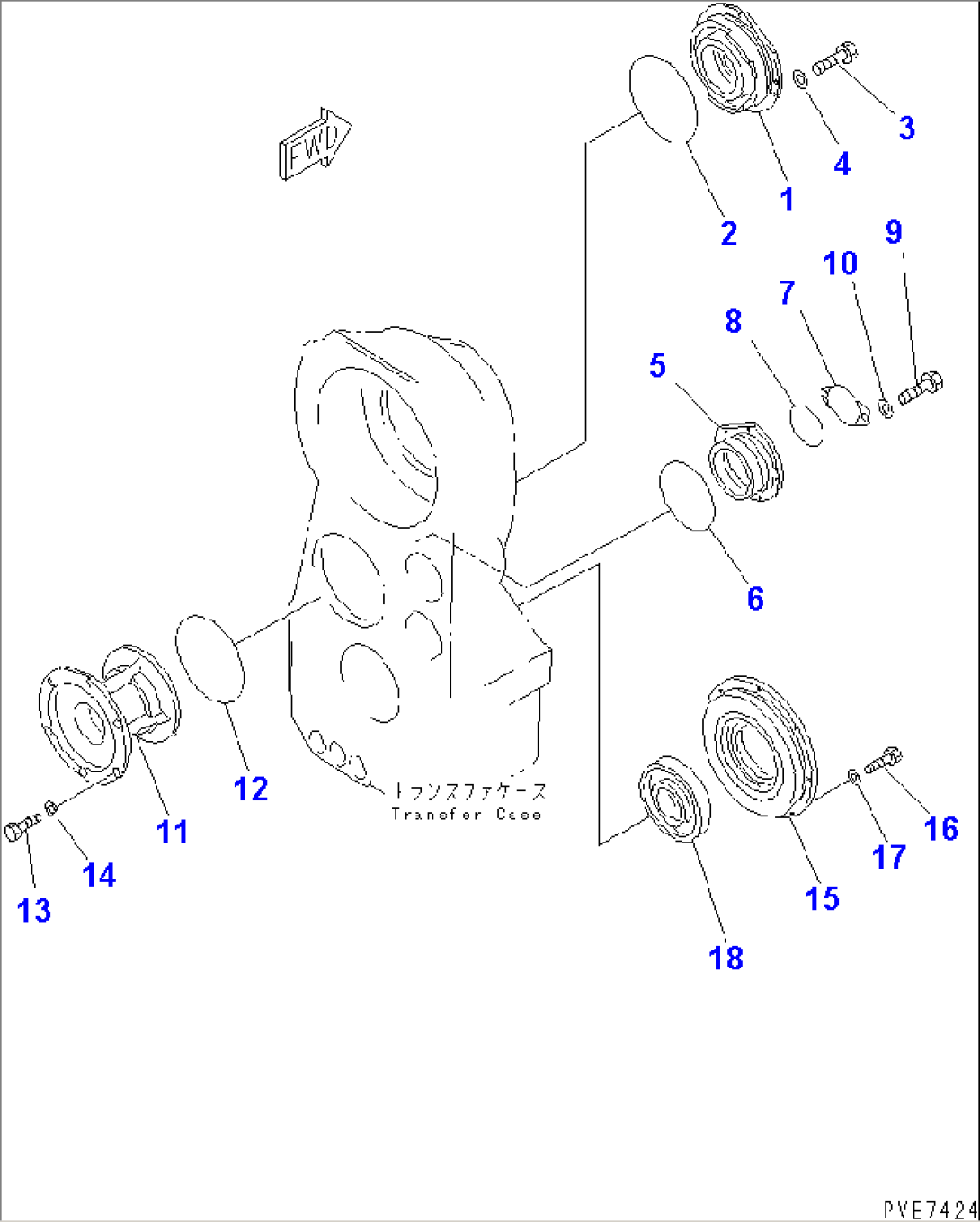

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-65A0. | ||||
| 1 | 427-15-13150 | CASE | 50001- | |
| 2 | 07000-15305 | O-RING (K3) | (1041)- | |
| 07000-05310 | O-RING (K3) | 50001-(1040) | ||
| 3 | 01010-81240 | BOLT | 50001- | |
| 4 | 01643-31232 | WASHER | 50001- | |
| 5 | 427-15-13160 | CAGE | 50001- | |
| 6 | 07000-05210 | O-RING (K3) | 50001- | |
| 7 | 425-15-13191 | PLATE | 50001- | |
| 8 | 07000-02135 | O-RING (K3) | 50001- | |
| 9 | 01010-61635 | BOLT | 50001- | |
| 10 | 01643-31645 | WASHER | 50001- | |
| 11 | 427-15-13170 | CAGE | 50001- | |
| 12 | 07000-15315 | O-RING (K3) | (1041)- | |
| 07000-05320 | O-RING (K3) | 50001-(1040) | ||
| 13 | 01010-81240 | BOLT | 50001- | |
| 14 | 01643-31232 | WASHER | 50001- | |
| 15 | 427-15-13180 | CAGE | 50001- | |
| 16 | 01010-81240 | BOLT | 50001- | |
| 17 | 01643-31232 | WASHER | 50001- | |
| 18 | 427-15-13280 | SPACER | 50001- |
