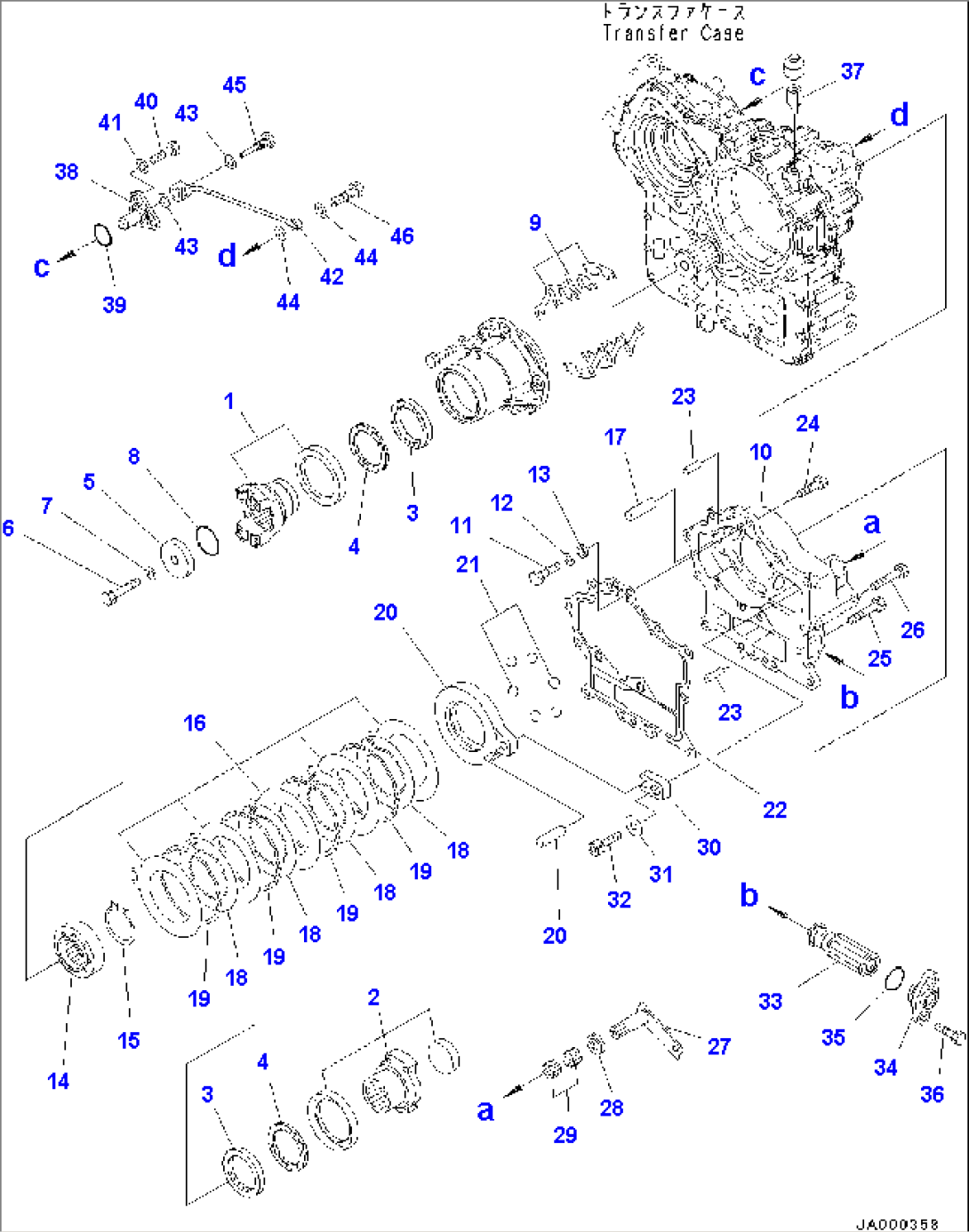

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-17-31004 | TRANSFER ASSEMBLY | 70136-70342 | ||
| 1 | 417-17-33310 | COUPLING COMPLETE | 70136-70342 | |
| \6\ | COUPLING | 70136-70342 | ||
| \6\ | COVER | 70136-70342 | ||
| 2 | 418-17-33320 | COUPLING COMPLETE | 70136-70342 | |
| \6\ | COUPLING | 70136-70342 | ||
| \6\ | COUPLING | 70136-70342 | ||
| \6\ | COVER | 70136-70342 | ||
| \6\ | COVER | 70136-70342 | ||
| 3 | 07012-50075 | SEAL | 70136-70342 | |
| 4 | 419-15-13660 | SEAL | 70136-70342 | |
| 5 | 423-22-11240 | HOLDER | 70136-70342 | |
| 6 | 01010-61680 | BOLT | 70136-70342 | |
| 7 | 01643-31645 | WASHER | 70136-70342 | |
| 8 | 07000-72055 | O-RING | 70136-70342 | |
| 9 | 418-17-33420 | SHIM, T=0.05MM | 70136-70342 | |
| 418-17-33430 | SHIM, T=0.20MM | 70136-70342 | ||
| 418-17-33440 | SHIM, T=0.5MM | 70136-70342 | ||
| 10 | 418-17-38116 | HOUSING | 70136-70342 | |
| 11 | 01010-80816 | BOLT | 70136-70342 | |
| 12 | 01643-30823 | WASHER | 70136-70342 | |
| 13 | 418-17-38160 | SPACER | 70136-70342 | |
| 14 | 418-17-38210 | HUB | 70136-70342 | |
| 15 | 04064-06020 | RING | 70136-70342 | |
| 16 | 418-17-38221 | PLATE | 70136-70342 | |
| 17 | 418-17-38170 | PIN | 70136-70342 | |
| 18 | 418-17-39710 | DISC | 70136-70342 | |
| 19 | 56D-15-12710 | SPRING, WAVE | 70136-70342 | |
| 20 | 418-17-38522 | PISTON, AND PIN | 70136-70342 | |
| 21 | 714-11-18340 | BALL | 70136-70342 | |
| 22 | 418-17-38134 | GASKET | 70136-70342 | |
| 23 | 04020-01228 | PIN, DOWEL | 70136-70342 | |
| 24 | 01010-81235 | BOLT | 70136-70342 | |
| 25 | 01010-81285 | BOLT | 70136-70342 | |
| 26 | 01011-81255 | BOLT | 70136-70342 | |
| 27 | 418-17-38142 | LEVER | 70136-70342 | |
| 28 | 714-11-19810 | SEAL | 70136-70342 | |
| 29 | 06120-02520 | BEARING | 70136-70342 | |
| 30 | 418-17-38150 | LEVER | 70136-70342 | |
| 31 | 714-09-16282 | WASHER | 70136-70342 | |
| 32 | 01252-30816 | BOLT | 70136-70342 | |
| 33 | 124-15-51740 | MAGNET ASSEMBLY | 70136-70342 | |
| 34 | 418-17-38120 | COVER | 70136-70342 | |
| 35 | 07000-73042 | O-RING | 70136-70342 | |
| 36 | 01010-81235 | BOLT | 70136-70342 | |
| 37 | 170-21-11190 | NIPPLE | 70136-70342 | |
| 38 | 418-17-34410 | FLANGE | 70136-70342 | |
| 39 | 07000-72040 | O-RING | 70136-70342 | |
| 40 | 01010-81030 | BOLT | 70136-70342 | |
| 41 | 01643-31032 | WASHER | 70136-70342 | |
| 42 | 418-17-34420 | TUBE | 70136-70342 | |
| 43 | 07005-02012 | GASKET | 70136-70342 | |
| 44 | 07005-01212 | GASKET | 70136-70342 | |
| 45 | 418-17-34440 | JOINT | 70136-70342 | |
| 46 | 07206-30812 | BOLT, JOINT | 70136-70342 |
