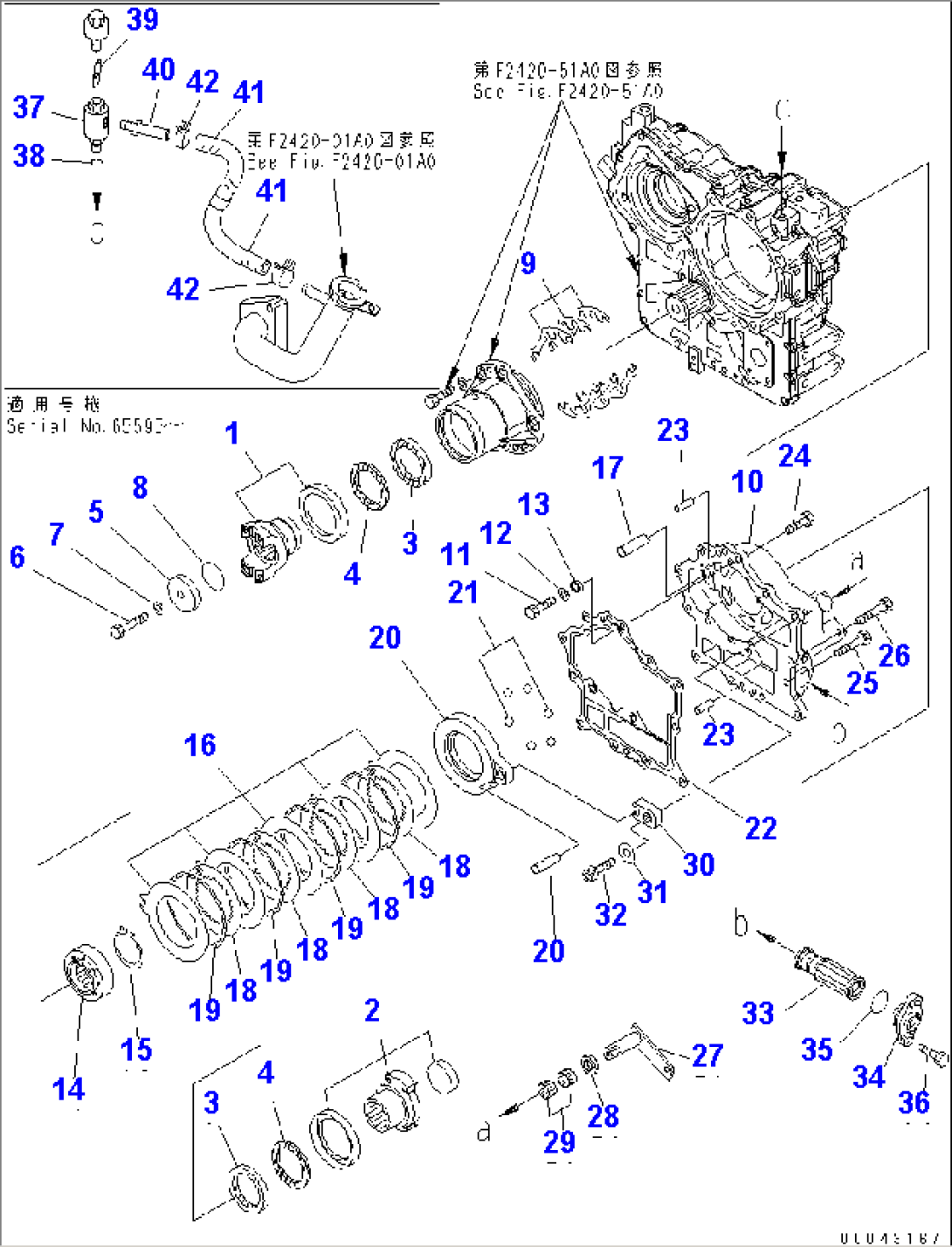

| Item | Part No. | Part Name | Qty | Serial No. |
| (417-17-31002) | TRANSFER ASS'Y | 67059-69106 | ||
| (417-17-31001) | TRANSFER ASS'Y | 65001-67058 | ||
| (\2\417-17-31000) | TRANSFER ASS'Y | (65001-65594) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2420-51A0 TO F2420-54A0. | ||||
| 1 | 417-17-33310 | COUPLING COMPLETE | 65001-@ | |
| 1 | \6\ | COUPLING | 65001-@ | |
| 1 | \6\ | COVER | 65001-@ | |
| 2 | 418-17-33320 | COUPLING, COMPLETE | 65001-@ | |
| 2 | \6\ | COUPLING | 65001-@ | |
| 2 | \6\ | COUPLING | 65001-@ | |
| 2 | \6\ | COVER | 65001-@ | |
| 2 | \6\ | COVER | 65001-@ | |
| 3 | 07012-50075 | SEAL | 65001-@ | |
| 4 | 419-15-13660 | SEAL | 65001-@ | |
| 5 | 423-22-11240 | HOLDER | 65001-@ | |
| 6 | 01010-61680 | BOLT | 65001-@ | |
| 7 | 01643-31645 | WASHER | 65001-@ | |
| 8 | 07000-72055 | O-RING | 65001-@ | |
| 9 | 418-17-33420 | SHIM, 0.05MM | 65001-@ | |
| 9 | 418-17-33430 | SHIM, 0.20MM | 65001-@ | |
| 9 | 418-17-33440 | SHIM, 0.50MM | 65001-@ | |
| 10 | 418-17-38115 | HOUSING | 65001-@ | |
| 11 | 01010-80812 | BOLT | 65001-@ | |
| 12 | 01643-30823 | WASHER | 65001-@ | |
| 13 | 418-17-38160 | SPACER | 65001-@ | |
| 14 | 418-17-38210 | HUB | 65001-@ | |
| 15 | 04064-06020 | RING | 65001-@ | |
| 16 | 418-17-38221 | PLATE | 65001-@ | |
| 17 | 418-17-38170 | PIN | 65001-@ | |
| 18 | 418-17-39710 | DISC | 65001-@ | |
| 19 | 56D-15-12710 | SPRING | 65001-@ | |
| 20 | 418-17-38521 | PISTON ASS'Y | 65001-@ | |
| 21 | 714-11-18340 | BALL | 65001-@ | |
| 22 | 418-17-38134 | GASKET | 65001-@ | |
| 23 | 04020-01228 | PIN | 65001-@ | |
| 24 | 01010-81235 | BOLT | 65001-@ | |
| 25 | 01010-81285 | BOLT | 65001-@ | |
| 26 | 01011-81255 | BOLT | 65001-@ | |
| 27 | 418-17-38142 | LEVER | 65001-@ | |
| 28 | 714-11-19810 | SEAL | 65001-@ | |
| 29 | 06120-02520 | BEARING | 65001-@ | |
| 30 | 418-17-38150 | LEVER | 65001-@ | |
| 31 | 714-09-16282 | WASHER | 65001-@ | |
| 32 | 01252-30816 | BOLT | 65001-@ | |
| 33 | 124-15-51740 | MAGNET ASS'Y | 65001-@ | |
| 34 | 418-17-38120 | COVER | 65001-@ | |
| 35 | 07000-73042 | O-RING | 65001-@ | |
| 36 | 01010-81235 | BOLT | 65001-@ | |
| 37 | 417-17-34290 | JOINT | 67059-69106 | |
| 37 | 417-17-34270 | JOINT | 65595-67058 | |
| 38 | 07002-61623 | O-RING | 67059-69106 | |
| 39 | 124-15-41690 | PIN | 65595-69106 | |
| 40 | 417-17-34281 | JOINT | 65595-69106 | |
| 41 | 07260-21440 | HOSE | 65595-69106 | |
| 42 | 09479-02400 | CLAMP | 65595-69106 |
