| Item | Part No. | Part Name | Qty | Serial No. |
| (418-17-31004) | TRANSFER ASS'Y | 75001- | ||

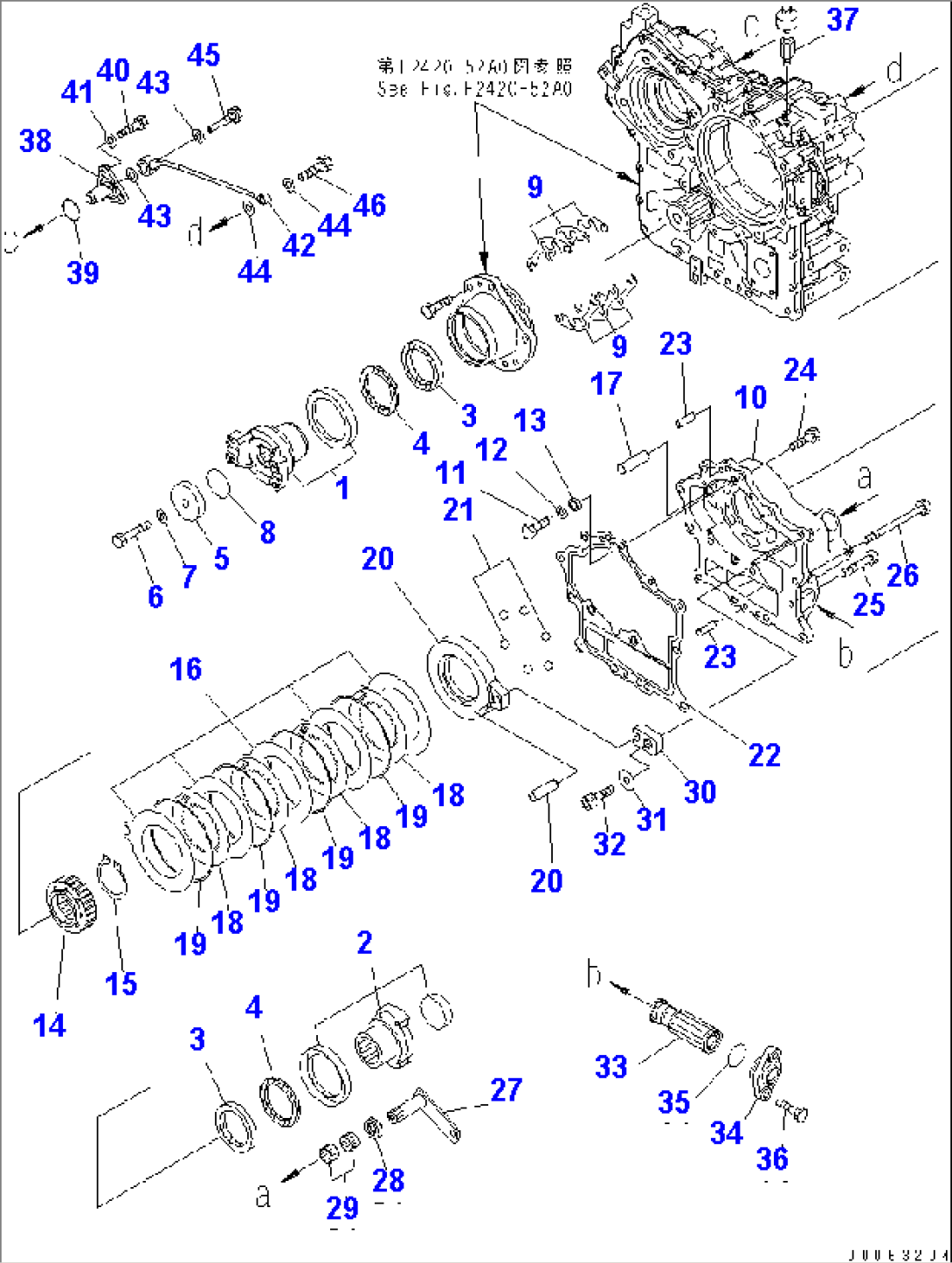

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2420-51A0 TO F2420-55A0. | ||||
| 1 | 418-17-33312 | COUPLING, COMPLETE | 75001- | |
| 1 | \6\ | COUPLING | 75001- | |
| 1 | \6\ | COVER | 75001- | |
| 2 | 418-17-33320 | COUPLING, COMPLETE | 75001- | |
| 2 | \6\ | COUPLING | 75001- | |
| 2 | \6\ | COUPLING | 75001- | |
| 2 | \6\ | COVER | 75001- | |
| 2 | \6\ | COVER | 75001- | |
| 3 | 07012-50075 | SEAL | 75001- | |
| 4 | 419-15-13660 | SEAL | 75001- | |
| 5 | 423-22-11240 | HOLDER | 75001- | |
| 6 | 01010-61680 | BOLT | 75001- | |
| 7 | 01643-31645 | WASHER | 75001- | |
| 8 | 07000-72055 | O-RING | 75001- | |
| 9 | 418-17-33420 | SHIM, 0.05MM | 75001- | |
| 9 | 418-17-33430 | SHIM, 0.20MM | 75001- | |
| 9 | 418-17-33440 | SHIM, 0.50MM | 75001- | |
| 10 | 418-17-38116 | HOUSING | 75001- | |
| 11 | 01010-80816 | BOLT | 75001- | |
| 12 | 01643-30823 | WASHER | 75001- | |
| 13 | 418-17-38160 | SPACER | 75001- | |
| 14 | 418-17-38210 | HUB | 75001- | |
| 15 | 04064-06020 | RING | 75001- | |
| 16 | 418-17-38221 | PLATE | 75001- | |
| 17 | 418-17-38170 | PIN | 75001- | |
| 18 | 418-17-39710 | DISC | 75001- | |
| 19 | 56D-15-12710 | SPRING | 75001- | |
| 20 | 418-17-38522 | PISTON AND PIN | 75001- | |
| 21 | 714-11-18340 | BALL | 75001- | |
| 22 | 418-17-38134 | GASKET | 75001- | |
| 23 | 04020-01228 | PIN | 75001- | |
| 24 | 01010-81235 | BOLT | 75001- | |
| 25 | 01010-81285 | BOLT | 75001- | |
| 26 | 01011-81255 | BOLT | 75001- | |
| 27 | 418-17-38142 | LEVER | 75001- | |
| 28 | 714-11-19810 | SEAL | 75001- | |
| 29 | 06120-02520 | BEARING | 75001- | |
| 30 | 418-17-38150 | LEVER | 75001- | |
| 31 | 714-09-16282 | WASHER | 75001- | |
| 32 | 01252-30816 | BOLT | 75001- | |
| 33 | 124-15-51740 | MAGNET ASS'Y | 75001- | |
| 34 | 418-17-38120 | COVER | 75001- | |
| 35 | 07000-73042 | O-RING | 75001- | |
| 36 | 01010-81235 | BOLT | 75001- | |
| 37 | 170-21-11190 | NIPPLE | 75001- | |
| 38 | 418-17-34410 | FLANGE | 75001- | |
| 39 | 07000-72040 | O-RING | 75001- | |
| 40 | 01010-81030 | BOLT | 75001- | |
| 41 | 01643-31032 | WASHER | 75001- | |
| 42 | 418-17-34420 | TUBE | 75001- | |
| 43 | 07005-02012 | SEAL, WASHER | 75001- | |
| 44 | 07005-01212 | SEAL, WASHER | 75001- | |
| 45 | 418-17-34440 | JOINT | 75001- | |
| 46 | 07206-30812 | BOLT | 75001- |
