| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (427-15-11004) | TRANSMISSION ASS'Y | 52001- | ||

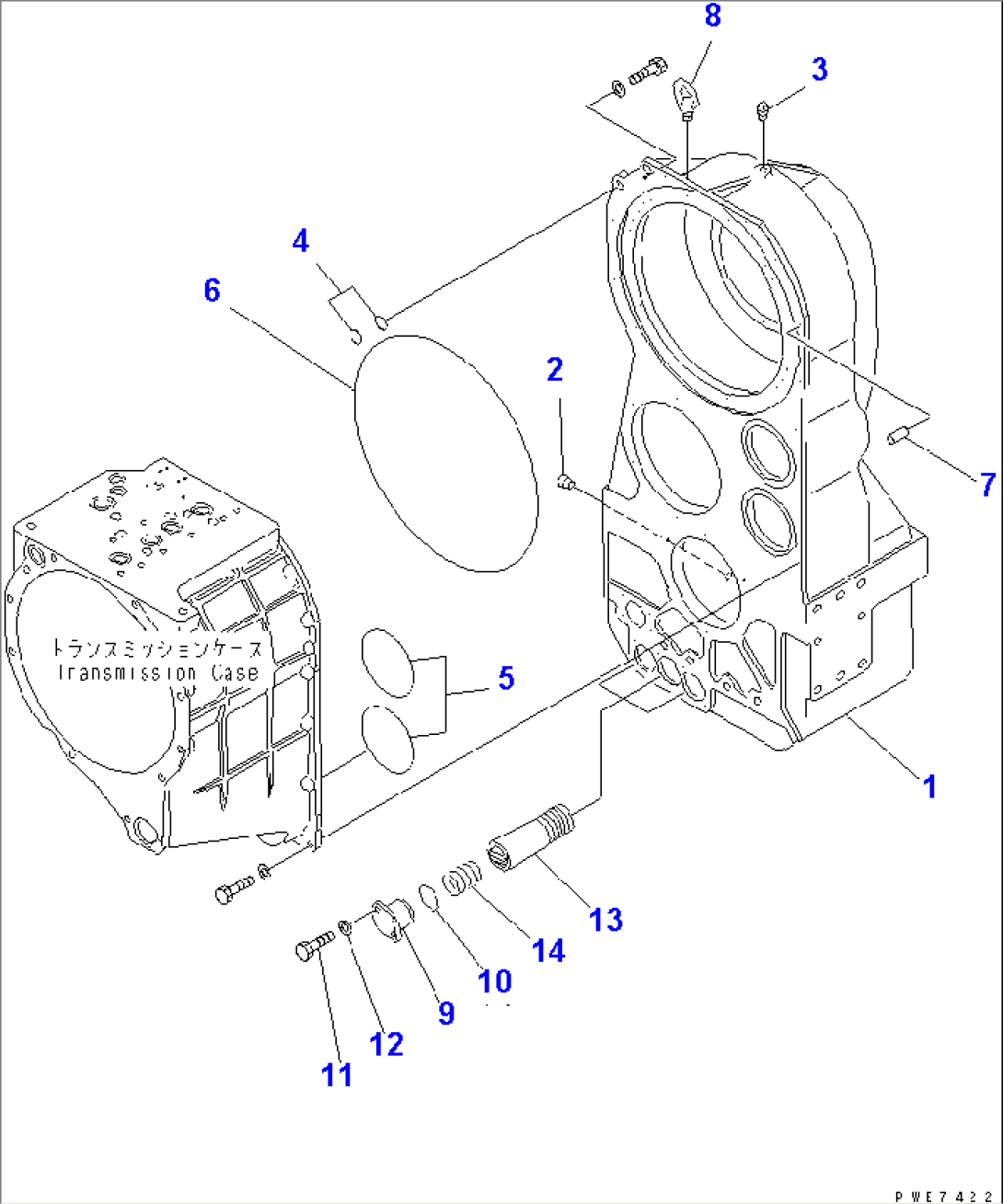

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-65A0. | ||||
| 427-15-00181 | CASE ASS'Y | 52001- | ||
| 1 | \6\ | CASE | 52001- | |
| 2 | 07043-72026 | PLUG | 52001- | |
| 3 | 07042-70211 | PLUG | 52001- | |
| 4 | 07000-73035 | O-RING (K3) | 52001- | |
| 5 | 07000-05190 | O-RING (K3) | 52001- | |
| 6 | 281-09-11110 | O-RING (K3) | 52001- | |
| 7 | 04020-01842 | PIN,DOWEL | 52001- | |
| 8 | 04530-13655 | BOLT | (101410)- | |
| 8 | 04530-03655 | BOLT | 52001-(101409) | |
| 9 | 427-15-13390 | COVER | 52001- | |
| 10 | 07000-02075 | O-RING (K3) | 52001- | |
| 11 | 01010-81240 | BOLT | 52001- | |
| 12 | 01643-31232 | WASHER | 52001- | |
| 13 | 562-15-11570 | MAGNET ASS'Y | 52001- | |
| 14 | 287-15-11560 | SPRING, (L=114.0) | 52001- |
