| Item | Part No. | Part Name | Qty | Serial No. |
| (154-15-00017) | TRANSMISSION ASS'Y | 2530- | ||
| (\0\154-15-00016) | TRANSMISSION ASS'Y | 2347-2529 | ||
| (\0\154-15-00015) | TRANSMISSION ASS'Y | 2001-2346 | ||

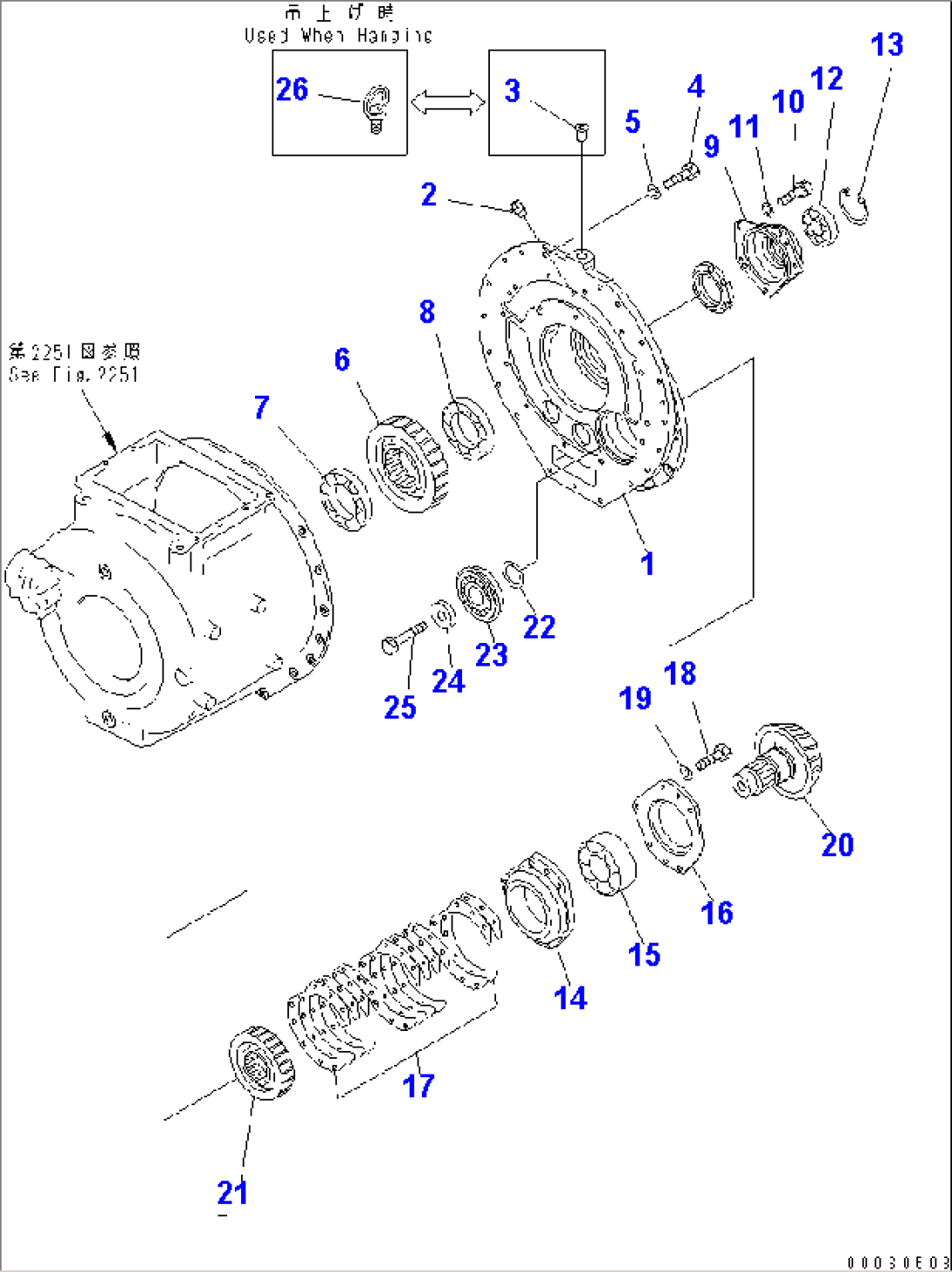

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2251 TO 2263A. | ||||
| (154-15-00026) | TRANSMISSION ASS'Y | 2347- | ||
| (\0\154-15-00025) | TRANSMISSION ASS'Y | 2001-2346 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2251 TO 2255. | ||||
| 154-15-00333 | REAR CASE ASS'Y | 2001- | ||
| 1 | \6\ | CASE | 2001- | |
| 2 | 07042-70108 | PLUG | 2001- | |
| 3 | 07048-02216 | PLUG | 2001- | |
| 4 | 01010-81240 | BOLT | 2001- | |
| 5 | 01602-21236 | WASHER,SPRING | 2001- | |
| 6 | 154-15-33211 | GEAR | 2001- | |
| 7 | 175-15-49340 | BEARING | 2001- | |
| 8 | 175-15-43270 | BEARING | 2001- | |
| 9 | 154-15-23151 | CAGE | 2001- | |
| 10 | 01010-81230 | BOLT | 2001- | |
| 11 | 01602-21236 | WASHER,SPRING | 2001- | |
| 12 | 06000-22210 | BEARING | 2001- | |
| 13 | 04065-09030 | RING,SNAP | 2001- | |
| 14 | 154-15-33350 | CAGE | 2001- | |
| 15 | 154-15-29120 | BEARING | 2001- | |
| 16 | 154-15-23360 | COVER | 2001- | |
| 17 | 154-15-00421 | SHIM ASS'Y (KIT) | 2001- | |
| 17 | \6\ | SHIM, 0.2MM (KIT) | 2001- | |
| 17 | \6\ | SHIM, 0.2MM (KIT) | 2001- | |
| 17 | \6\ | SHIM, 0.3MM (KIT) | 2001- | |
| 17 | \6\ | SHIM, 0.3MM (KIT) | 2001- | |
| 17 | \6\ | SHIM, 1.0MM (KIT) | 2001- | |
| 17 | \6\ | SHIM, 1.0MM (KIT) | 2001- | |
| 18 | 01010-81250 | BOLT | 2001- | |
| 19 | 01602-21236 | WASHER,SPRING | 2001- | |
| 20 | 154-15-33241 | SHAFT | 2001- | |
| 21 | 154-15-33230 | GEAR | 2001- | |
| 22 | 154-15-43340 | SPACER | .- | |
| 22 | \0\154-15-33340 | SPACER | 2001-. | |
| 23 | 154-15-39112 | BEARING | 2530- | |
| 23 | 154-15-39111 | BEARING | 2001-2529 | |
| 23 | (\2\154-15-39110) | BEARING | (2001-(2529)) | |
| 24 | 154-15-33392 | HOLDER | 2001- | |
| 24 | (\2\154-15-33391) | HOLDER | (2001-(2529)) | |
| 25 | 01010-61680 | BOLT | 2001- | |
| 26 | 04530-12438 | BOLT | 2001- |
