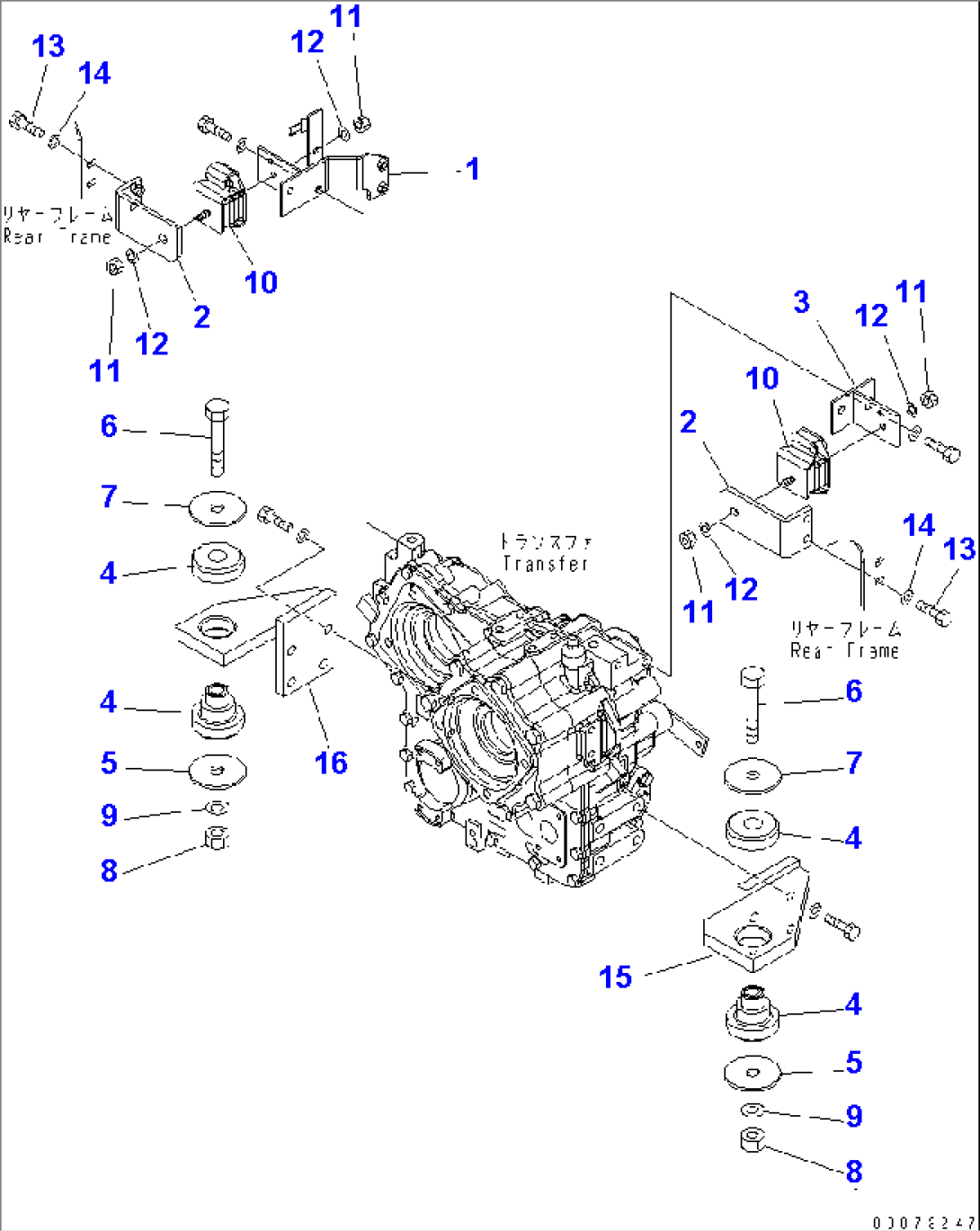

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BRACKET,(SEE FIG. F2420-01A0) | A89001- | ||
| 2 | 418-14-31133 | PLATE | A89001- | |
| 3 | BRACKET,(SEE FIG. F2420-01A0) | A89001- | ||
| 4 | 418-01-11112 | CUSHION | A89001- | |
| \6\ | CUSHION | A89001- | ||
| \6\ | CUSHION | A89001- | ||
| 5 | 419-01-11162 | WASHER | A89001- | |
| 6 | 01011-62220 | BOLT | A89001- | |
| 7 | 419-01-11162 | WASHER | A89001- | |
| 8 | 01580-02218 | NUT | A89001- | |
| 9 | 01643-32260 | WASHER | A89001- | |
| 10 | 20S-01-71331 | CUSHION | A89001- | |
| 11 | 01580-11008 | NUT | A89001- | |
| 12 | 01643-31032 | WASHER | A89001- | |
| 13 | 01010-81035 | BOLT | A89001- | |
| 14 | 01643-31032 | WASHER | A89001- | |
| 15 | BRACKET,(SEE FIG. F2420-01A0) | A89001- | ||
| 16 | BRACKET,(SEE FIG. F2420-01A0) | A89001- |
