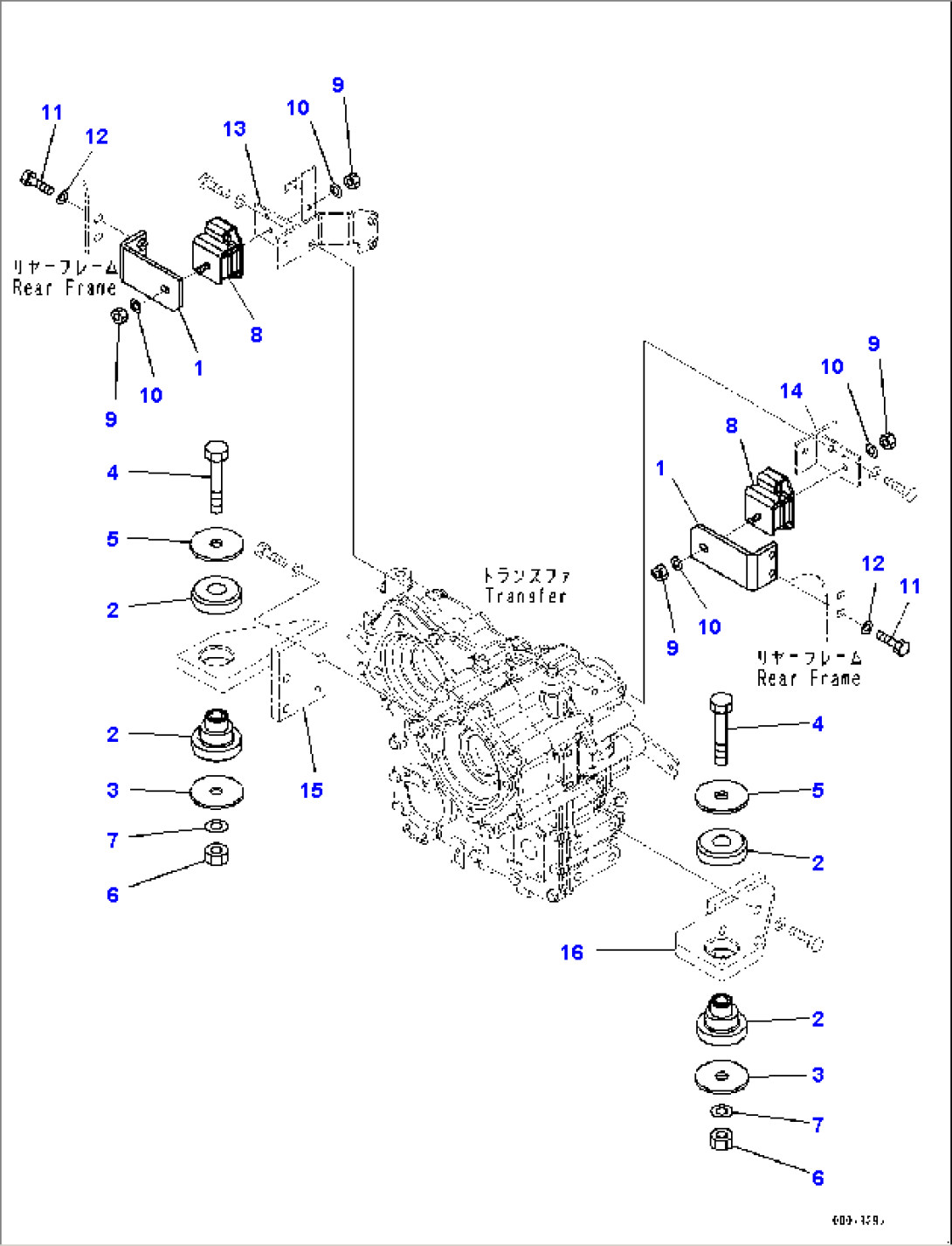

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-14-31133 | PLATE | H00051- | |
| 2 | 418-01-11112 | CUSHION ASSEMBLY | H00051- | |
| 418-01-11121 | CUSHION | H00051- | ||
| 418-01-11131 | CUSHION | H00051- | ||
| 3 | 419-01-11162 | WASHER | H00051- | |
| 4 | 01011-62220 | BOLT | H00051- | |
| 5 | 419-01-11162 | WASHER | H00051- | |
| 6 | 01580-02218 | NUT | H00051- | |
| 7 | 01643-32260 | WASHER | H00051- | |
| 8 | 20S-01-71331 | CUSHION | H00051- | |
| 9 | 01580-11008 | NUT | H00051- | |
| 10 | 01643-31032 | WASHER | H00051- | |
| 11 | 01016-51035 | BOLT | H00051- | |
| 12 | 01643-31032 | WASHER | H00051- | |
| 13 | (418-14-41121) | BRACKET | ||
| 14 | (418-14-31152) | BRACKET, LHS | ||
| 15 | (418-14-31143) | BRACKET, RHS | ||
| 16 | (418-14-31113) | BRACKET, LHS |
