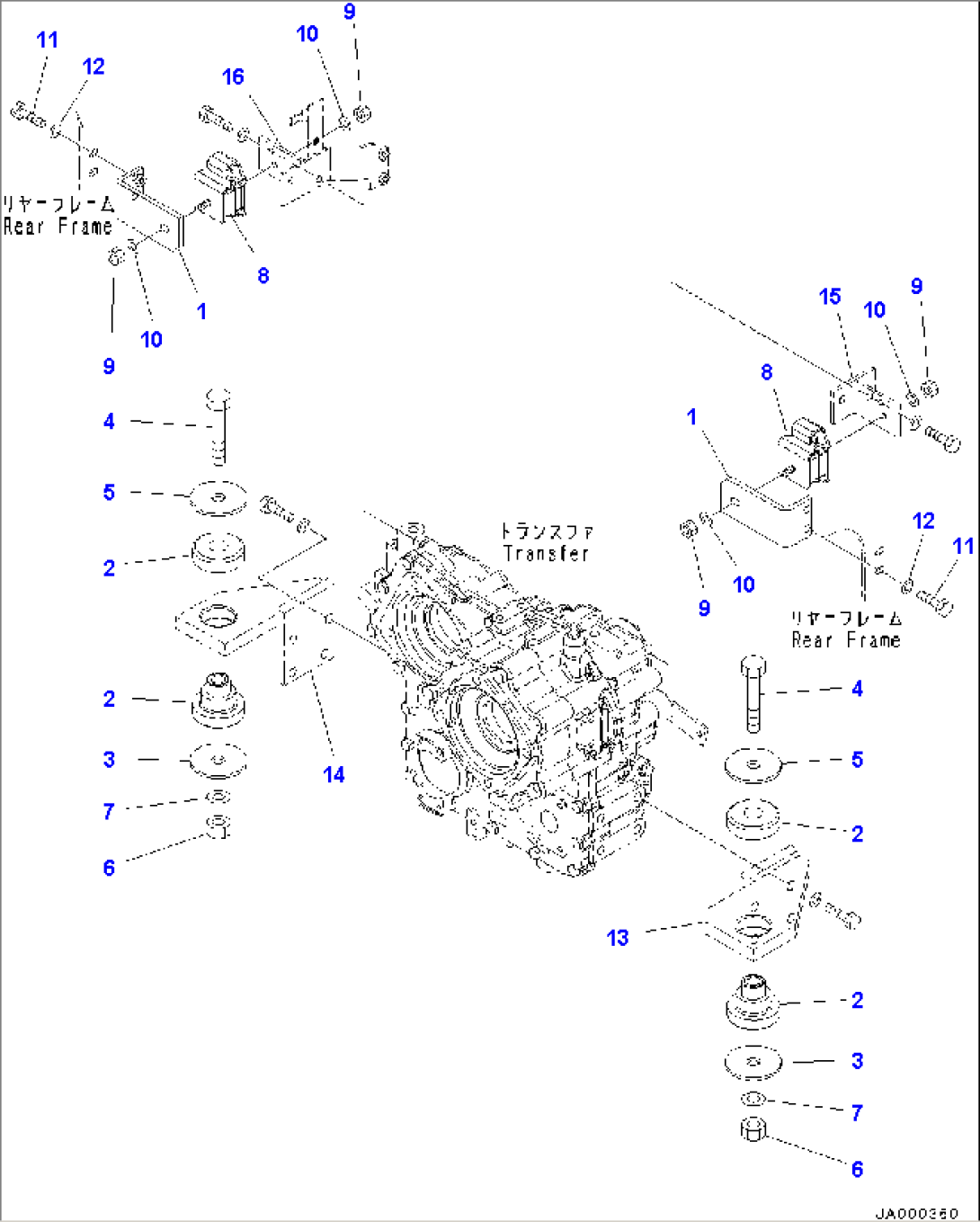

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-14-31133 | Plate | C10001- | |
| 2 | 418-01-11112 | Cushion | C10001- | |
| 418-01-11121 | Cushion | C10001- | ||
| 418-01-11131 | Cushion | C10001- | ||
| 3 | 419-01-11162 | Washer | C10001- | |
| 4 | 01011-62220 | Bolt | C10001- | |
| 5 | 419-01-11162 | Washer | C10001- | |
| 6 | 01580-02218 | Nut | C10001- | |
| 7 | 01643-32260 | Washer | C10001- | |
| 8 | 20S-01-71331 | Cushion | C10001- | |
| 9 | 01580-11008 | Nut | C10001- | |
| 10 | 01643-31032 | Washer | C10001- | |
| 11 | 01010-81035 | Bolt | C10001- | |
| 12 | 01643-31032 | Washer | C10001- | |
| 13 | (418-14-31113) | Bracket | - | |
| 14 | (418-14-31143) | Bracket | - | |
| 15 | (418-14-31152) | Bracket | - | |
| 16 | (418-14-41121) | Bracket | - |
