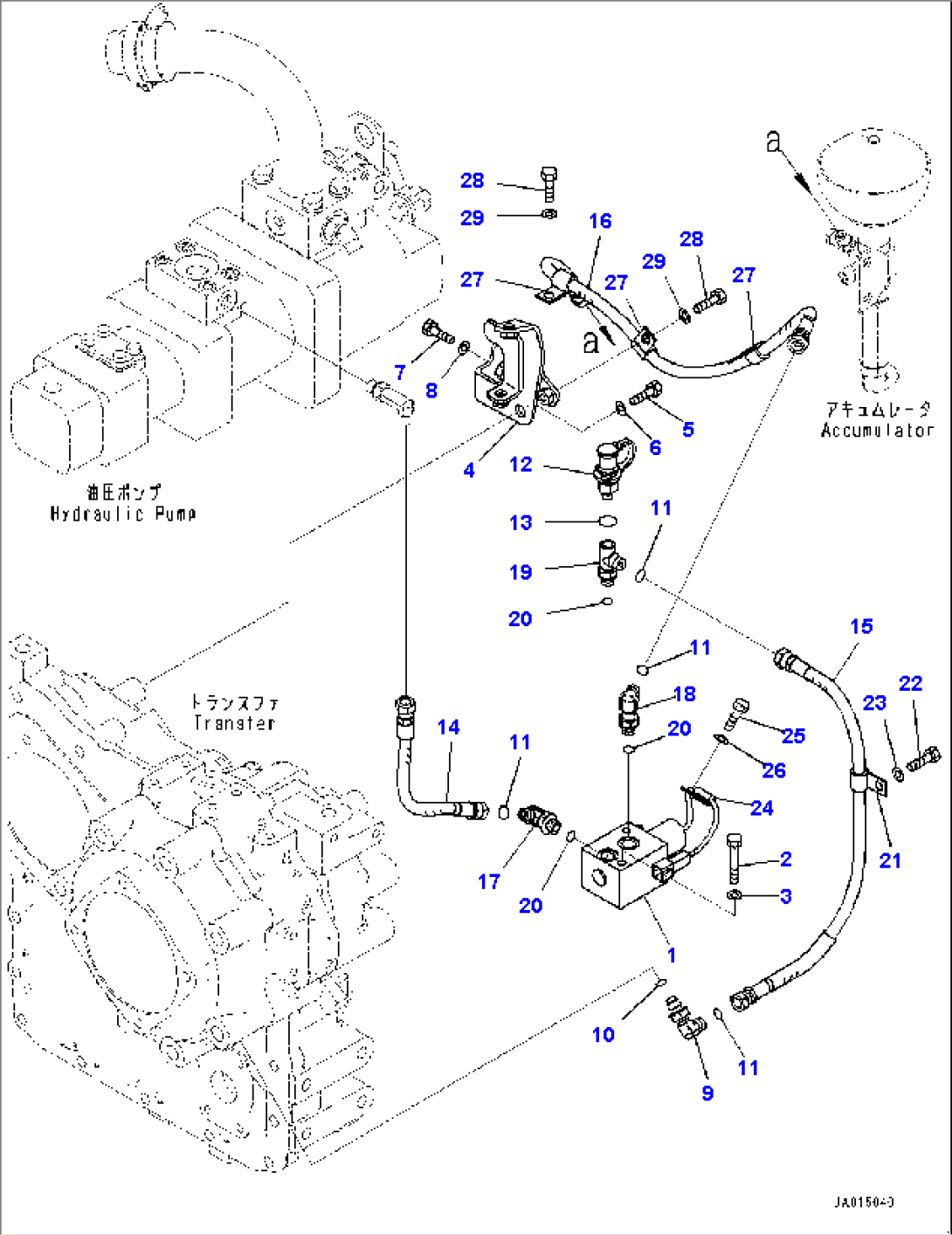

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-18-31111 | Valve Assembly, Solenoid | 80001- | |
| 2 | 01010-80870 | Bolt | 80001- | |
| 3 | 01643-30823 | Washer | 80001- | |
| 4 | 417-18-53120 | Bracket | 80001- | |
| 5 | 01010-81225 | Bolt | 80001- | |
| 6 | 01643-31232 | Washer | 80001- | |
| 7 | 01010-81230 | Bolt | 80001- | |
| 8 | 01643-31232 | Washer | 80001- | |
| 9 | 21W-62-43960 | Elbow | 80001- | |
| 10 | 07002-11423 | O-ring | 80001- | |
| 11 | 02896-11008 | O-ring | 80001- | |
| 12 | 799-101-5220 | Nipple | 80001- | |
| 13 | 07002-11023 | O-ring | 80001- | |
| 14 | 417-18-51610 | Hose | 80001- | |
| 15 | 417-18-51550 | Hose | 80001- | |
| 16 | 417-18-51510 | Hose | 80001- | |
| 17 | 21W-62-43980 | Elbow | 80001- | |
| 18 | 21W-62-43970 | Elbow | 80001- | |
| 19 | 418-18-31111 | Elbow | 80001- | |
| 20 | 07000-12011 | O-ring | 80001- | |
| 21 | 04434-51210 | Clip | 80001- | |
| 22 | 01010-81020 | Bolt | 80001- | |
| 23 | 01643-31032 | Washer | 80001- | |
| 24 | 600-051-2050 | Clip | 80001- | |
| 25 | 01010-81020 | Bolt | 80001- | |
| 26 | 01643-31032 | Washer | 80001- | |
| 27 | 04434-51310 | Clip | 80001- | |
| 28 | 01010-81020 | Bolt | 80001- | |
| 29 | 01643-31032 | Washer | 80001- |
