| Item | Part No. | Part Name | Qty | Serial No. |
| (104-15-00010) | TRANSMISSION ASS'Y | 45007- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3271 TO 3279. | ||||

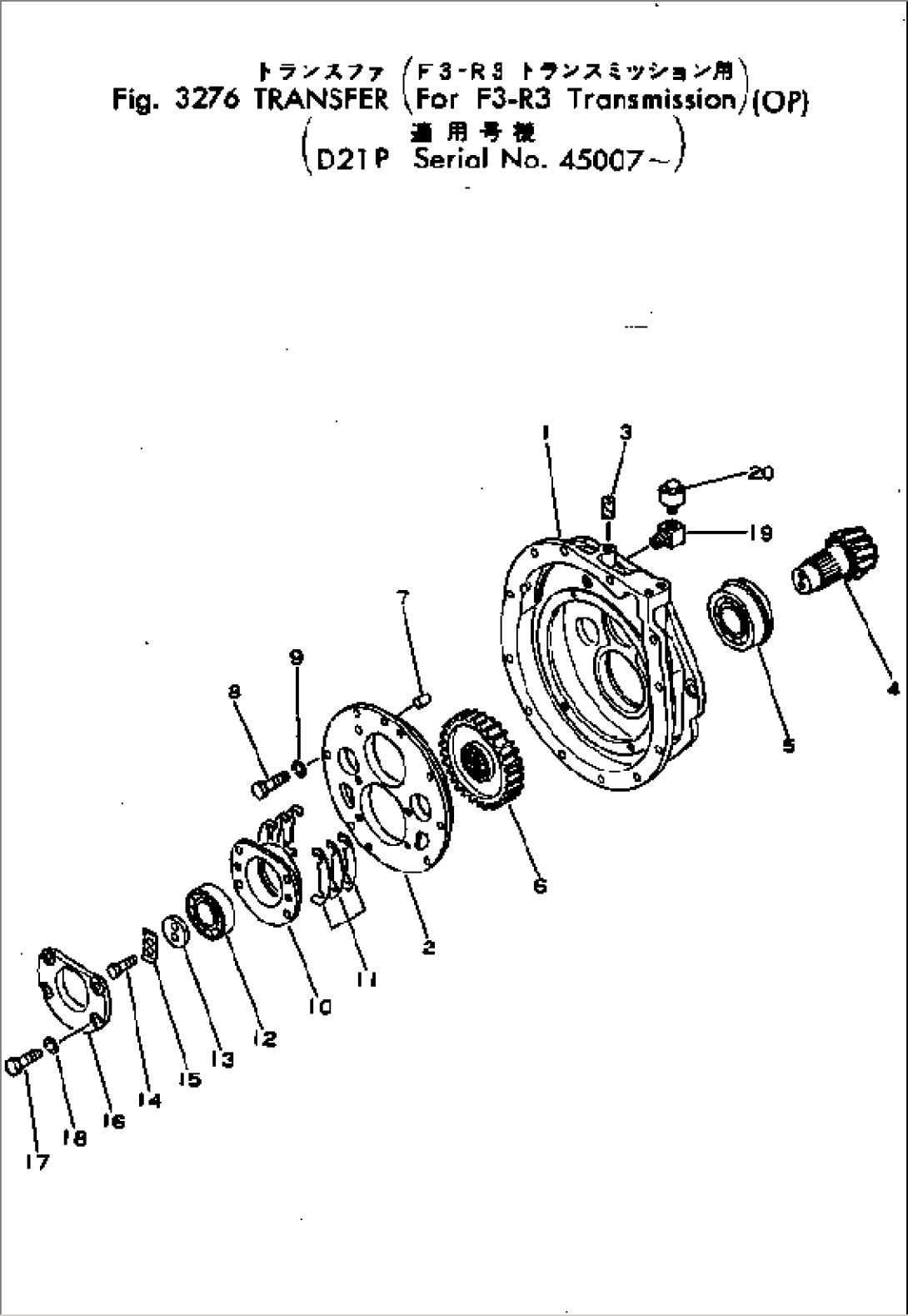

| 104-15-00120 | TRANSFER ASS'Y | 45007- | ||
| 103-15-00230 | CASE ASS'Y | 45007- | ||
| 1 | \6\ | CASE | 45007- | |
| 2 | \6\ | COVER | 45007- | |
| 3 | 07049-01215 | PLUG | 45007- | |
| 4 | 103-15-23240 | SHAFT | 45007- | |
| 5 | 103-15-13392 | BEARING | 45007- | |
| 6 | 104-15-23220 | GEAR | 45007- | |
| 7 | 04020-01024 | PIN | 45007- | |
| 8 | 01010-31025 | BOLT | 45007- | |
| 9 | 01602-01030 | WASHER | 45007- | |
| 10 | 103-15-23250 | CAGE | 45007- | |
| 11 | 113-15-23420 | SHIM, 0.2MM | 45007- | |
| 11 | 113-15-23440 | SHIM, 0.3MM | 45007- | |
| 11 | 113-15-23410 | SHIM, 1.0MM | 45007- | |
| 12 | 06030-22208 | BEARING | 45007- | |
| 13 | 04080-03506 | HOLDER | 45007- | |
| 14 | 01010-30820 | BOLT | 45007- | |
| 15 | 04081-03510 | LOCK | 45007- | |
| 16 | 103-15-23260 | PLATE | 45007- | |
| 17 | 01010-31030 | BOLT | 45007- | |
| 18 | 01602-01030 | WASHER | 45007- | |
| 19 | 568-15-11610 | ELBOW | 45007- | |
| 20 | 07030-00252 | BREATHER | 45007- |
