| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (427-15-11003) | TRANSMISSION ASS'Y | 50002-50028 | ||
| (427-15-00013) | TRANSMISSION ASS'Y | 50001-50001 | ||

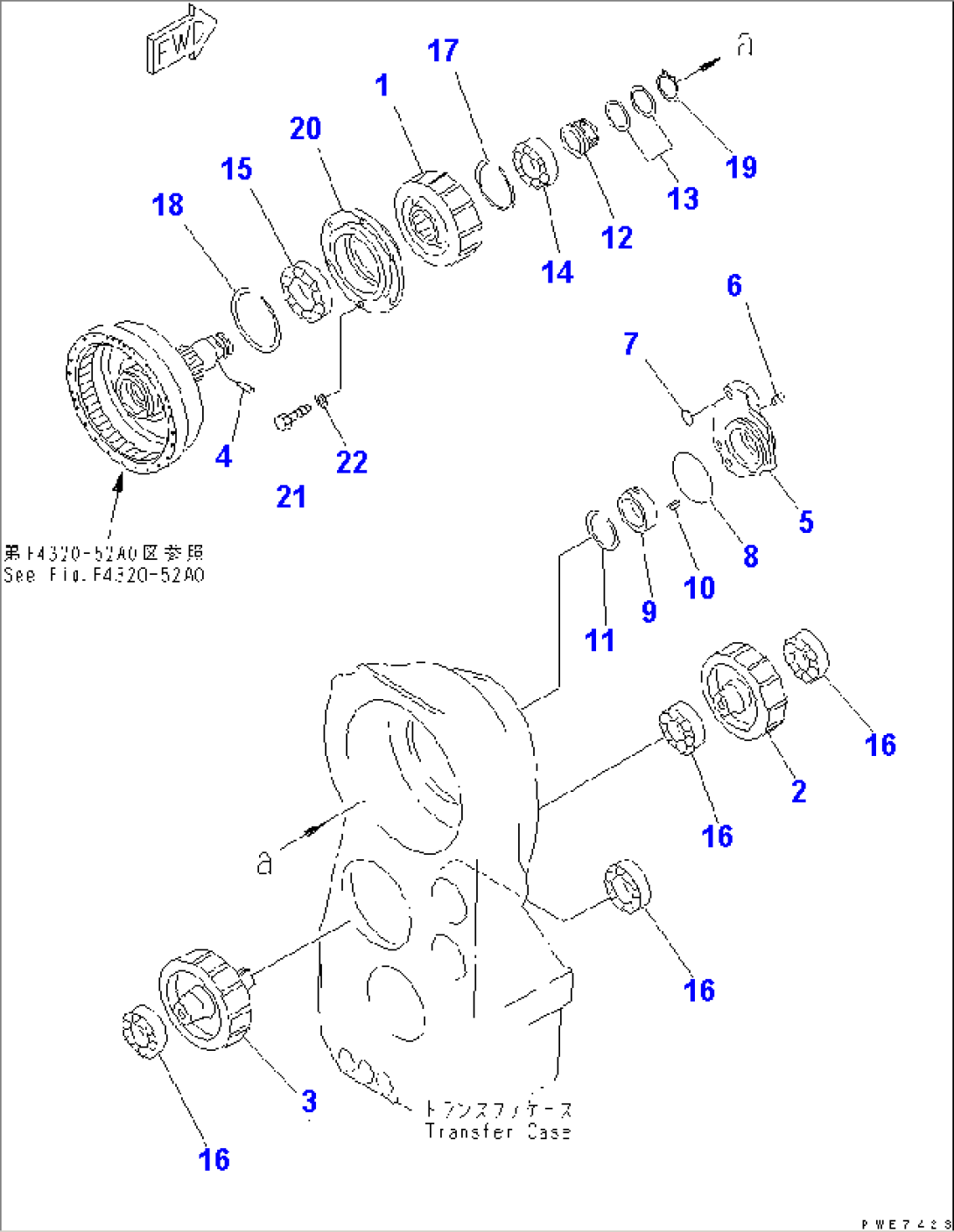

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-65A0. | ||||
| 1 | 427-15-13211 | GEAR | (1107)-@ | |
| 427-15-13210 | GEAR | 50001-(1106) | ||
| 2 | 427-15-13721 | GEAR | (1107)-@ | |
| 427-15-13720 | GEAR | 50001-(1106) | ||
| 3 | 427-15-13731 | GEAR | (1107)-@ | |
| 427-15-13730 | GEAR | 50001-(1106) | ||
| 4 | 04020-00616 | PIN,DOWEL | 50001-@ | |
| 427-15-00161 | COVER ASS'Y | (1041)-@ | ||
| 427-15-00160 | COVER ASS'Y | 50001-(1040) | ||
| 5 | \6\ | COVER | (1041)-@ | |
| \6\ | COVER | 50001-(1040) | ||
| 6 | 07043-70108 | PLUG | (1041)-@ | |
| 145-14-11320 | PLUG | 50001-(1040) | ||
| 7 | 07000-73035 | O-RING (K3) | 50001-@ | |
| 8 | 07000-05170 | O-RING (K3) | 50001-@ | |
| 9 | 427-15-13350 | BUSHING | 50001-@ | |
| 10 | 04025-00620 | PIN,SPRING | 50001-@ | |
| 11 | 04077-00140 | RING,SNAP | 50001-@ | |
| 12 | 427-15-13361 | COLLAR | 50001-@ | |
| 13 | 427-15-19220 | SEAL RING,SEAL | 50002-@ | |
| 07018-21104 | RING,SEAL | 50001-50001 | ||
| 14 | 427-15-19460 | BEARING | 50001-50028 | |
| 15 | 06032-00224 | BEARING | 50001-50028 | |
| 16 | 140-09-13131 | BEARING | 50001-@ | |
| 17 | 04071-00180 | RING,SNAP | 50001-50028 | |
| 18 | 130-09-15550 | RING,SNAP | 50001-@ | |
| 19 | 04064-08025 | RING,SNAP | 50001-@ | |
| 20 | 427-15-13130 | CAGE | 50001-50028 | |
| 21 | 01010-81240 | BOLT | 50001-50028 | |
| 22 | 01643-31232 | WASHER | 50001-50028 |
