| Item | Part No. | Part Name | Qty | Serial No. |

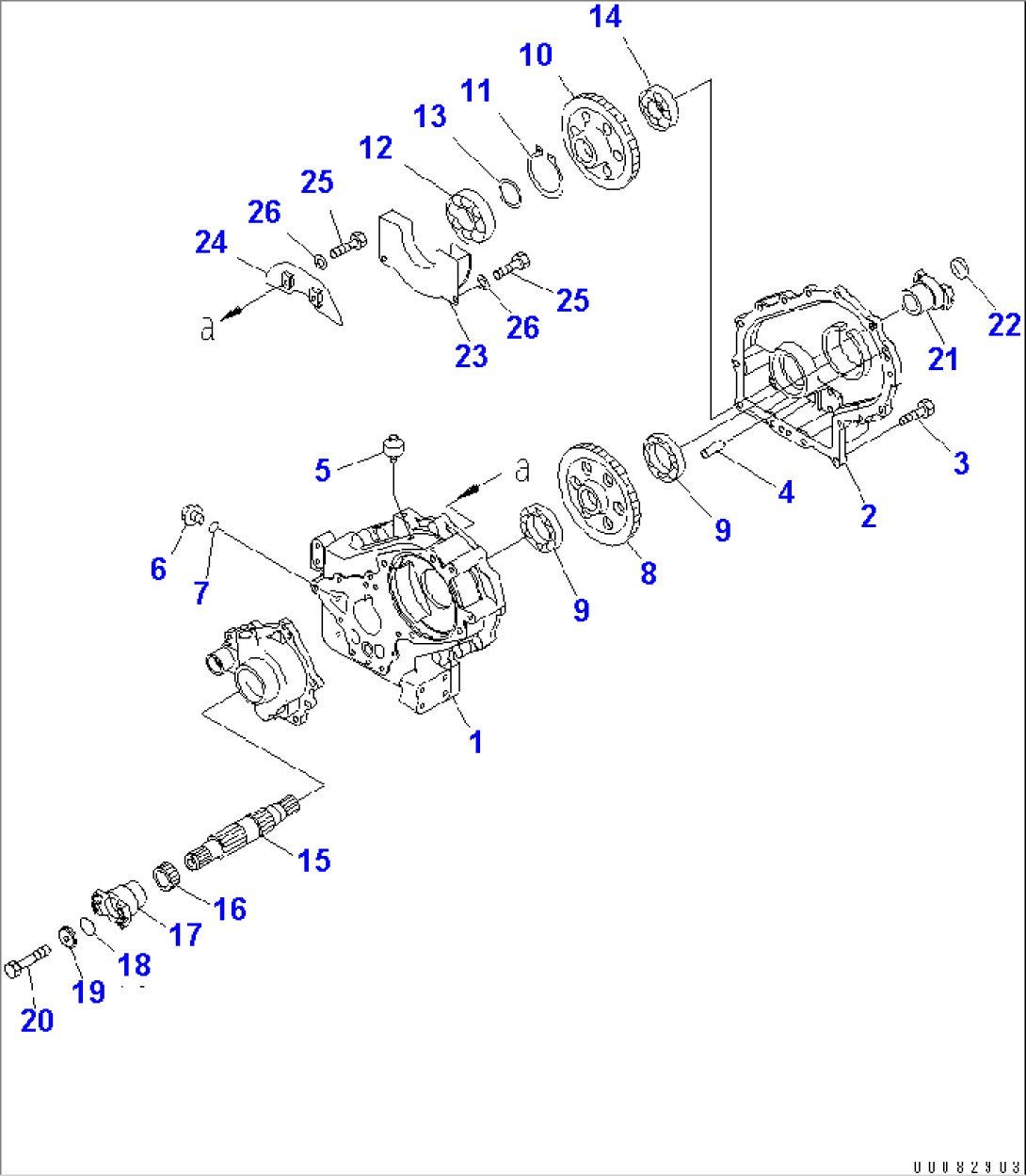

| 415-17-20005 | TRANSFER ASS'Y | 13146- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2420-01A0A AND F2420-02A0A. | ||||
| 1 | \6\ | ,FRONT | 13146- | |
| 2 | \6\ | CASE,REAR | 13146- | |
| 3 | 01010-31235 | BOLT | .- | |
| 4 | 04020-01228 | PIN,DOWEL | 10001- | |
| 5 | 07030-00252 | BREATHER | 10001- | |
| 6 | 07044-12412 | PLUG | 10001- | |
| 7 | 07002-62434 | O-RING | 13146- | |
| 8 | 415-17-22311 | GEAR | 10001- | |
| 9 | 06030-06013 | BEARING | 10001- | |
| 10 | 415-17-23411 | GEAR | 13146- | |
| 11 | 04064-05020 | RING,SNAP | 10001- | |
| 12 | 06030-06310 | BEARING | 13146- | |
| 13 | 415-17-24520 | SPACER | 13146- | |
| 14 | 415-17-24530 | BEARING | 13146- | |
| 15 | 415-17-24511 | SHAFT,OUTPUT | 13146- | |
| 16 | 415-17-23851 | WORM | 13146- | |
| 17 | 714-04-13660 | COUPLING | 10001- | |
| 18 | 07000-73032 | O-RING | 13146- | |
| 19 | 415-22-11241 | HOLDER | 10001- | |
| 20 | 01010-61275 | BOLT | 10001- | |
| 714-01-13651 | COUPLING | 10001- | ||
| 21 | \6\ | COUPLING | 12013- | |
| 22 | \6\ | COVER | 12013- | |
| 23 | 415-17-23512 | COVER,GEAR | 13146- | |
| 24 | 415-17-23521 | PLATE | 13146- | |
| 25 | 01010-61020 | BOLT | 10001- | |
| 26 | 01643-31032 | WASHER | 10001- |
