| Item | Part No. | Part Name | Qty | Serial No. |
| (415-17-20005) | TRANSFER ASS'Y | 13146-@ | ||
| (\2\415-17-20004) | TRANSFER ASS'Y | (13146-13310) | ||
| (\0\415-17-20003) | TRANSFER ASS'Y | 10634-13145 | ||
| (\0\415-17-20002) | TRANSFER ASS'Y | 10001-10633 | ||

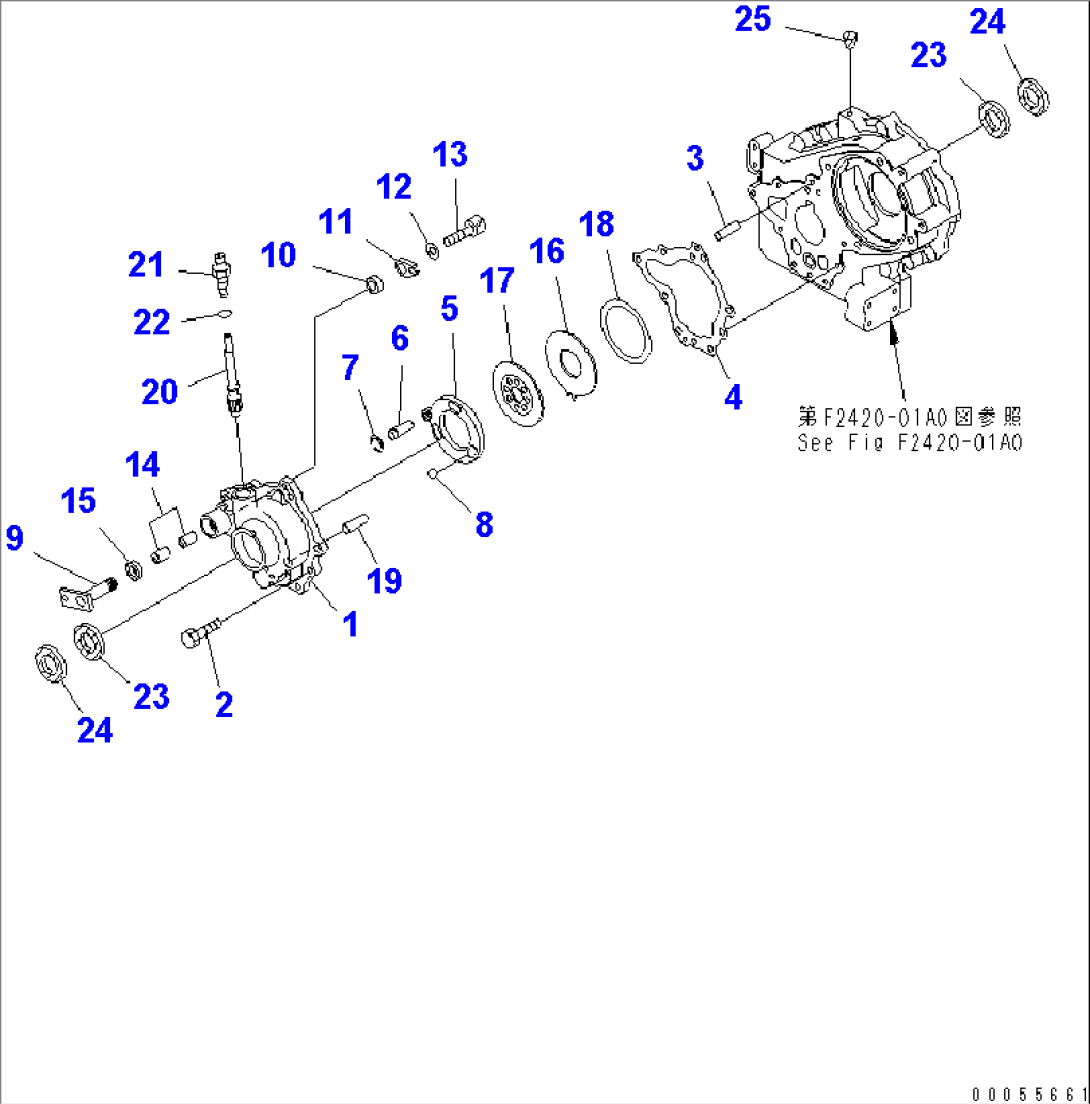

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2420-01A0 AND F2420-02A0. | ||||
| 1 | 415-17-26111 | HOUSING | 10001-@ | |
| 2 | 01010-31235 | BOLT | .-@ | |
| 2 | \1\01010-61235 | BOLT | 10001-. | |
| 3 | 04020-01228 | PIN,DOWEL | 10001-@ | |
| 4 | 714-09-16520 | GASKET | 10001-@ | |
| 714-09-16221 | PISTON ASS'Y | 10001-@ | ||
| 5 | 714-09-16121 | PISTON | 10001-@ | |
| 6 | 714-09-16230 | PIN | 10001-@ | |
| 7 | 714-09-16240 | E-RING | 10001-@ | |
| 8 | 04260-01587 | BALL | 10001-@ | |
| 9 | 415-17-26172 | LEVER | 10001-@ | |
| 10 | 714-09-16271 | SPACER | 10001-@ | |
| 11 | 714-09-16181 | LEVER | 10001-@ | |
| 12 | 714-09-16282 | WASHER | 10001-@ | |
| 13 | 01252-30816 | BOLT | 10001-@ | |
| 14 | 06120-02016 | BEARING | 10001-@ | |
| 15 | 714-09-16190 | SEAL | 10001-@ | |
| 16 | 714-09-16130 | PLATE | 10001-@ | |
| 17 | 714-09-16140 | DISC | 10001-@ | |
| 18 | 714-09-16150 | SPRING,WAVE | 10001-@ | |
| 19 | 04022-20065 | PIN,DOWEL | 10001-@ | |
| 20 | 415-17-23820 | GEAR | 10001-13145 | |
| 21 | 415-22-11880 | SLEEVE | 10001-@ | |
| 22 | 07002-12434 | O-RING | .-13145 | |
| 22 | \1\07002-02434 | O-RING | 10001-. | |
| 23 | 714-01-13271 | SEAL,OIL | 10001-@ | |
| 24 | 714-01-13280 | SEAL,DUST | 10001-@ | |
| 25 | 07049-01215 | PLUG | 12013-@ |
