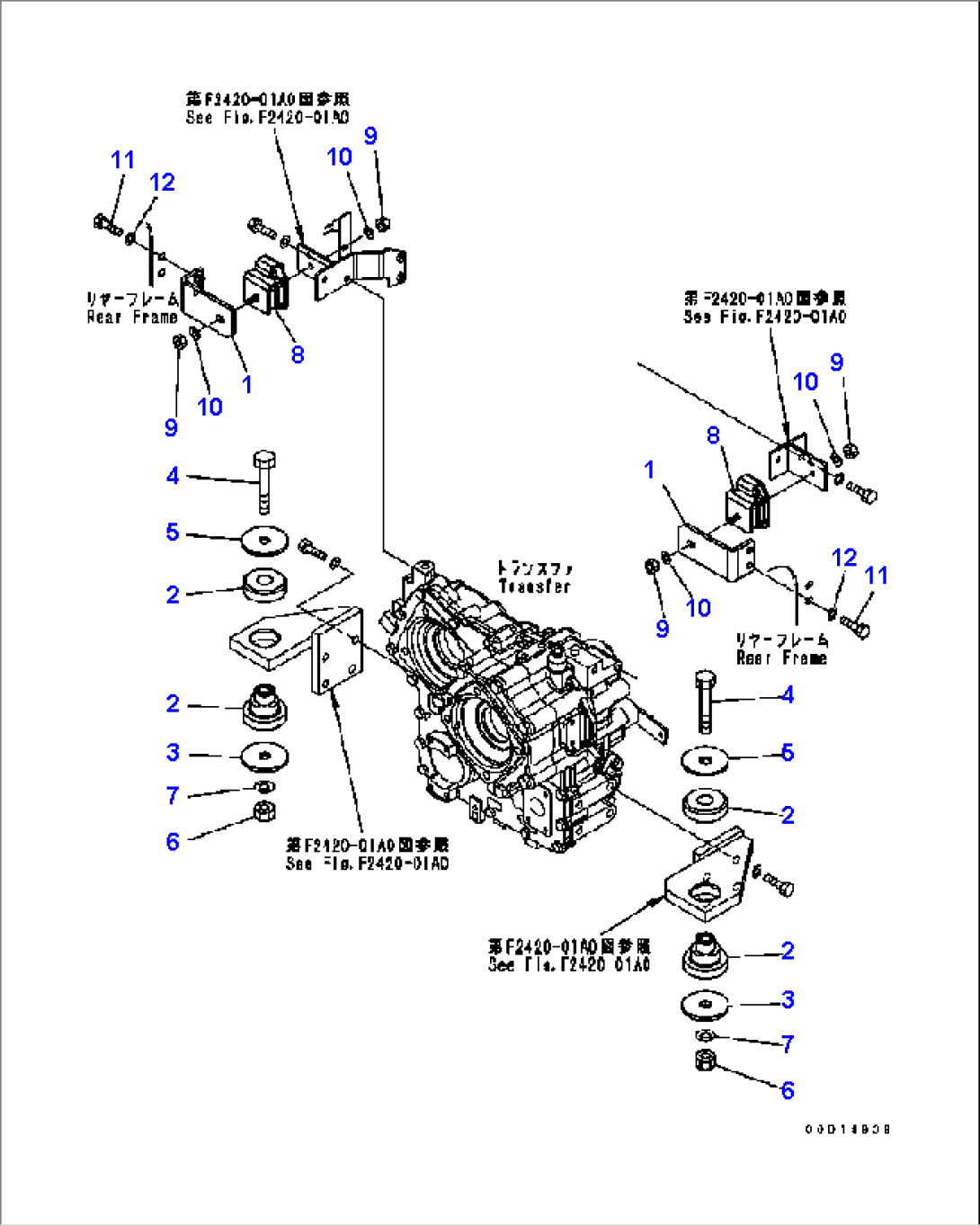

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-14-31133 | PLATE | B10320- | |
| 418-14-31132 | PLATE | B10001-B10319 | ||
| 2 | 418-01-11112 | CUSHION | B10001- | |
| 418-01-11121 | CUSHION | B10001- | ||
| \6\ | CUSHION | B10001- | ||
| 3 | 419-01-11162 | WASHER | B10001- | |
| 4 | 01011-82220 | BOLT | B10001- | |
| 5 | 419-01-11162 | WASHER | B10001- | |
| 6 | 01580-02218 | NUT | B10001- | |
| 7 | 01643-32260 | WASHER | B10001- | |
| 8 | 20S-01-71331 | CUSHION | B10001- | |
| 9 | 01580-11008 | NUT | B10001- | |
| 10 | 01643-31032 | WASHER | B10001- | |
| 11 | 01010-81035 | BOLT | B10320- | |
| \0\01010-81030 | BOLT | B10001-B10319 | ||
| 12 | 01643-31032 | WASHER | B10001- |
