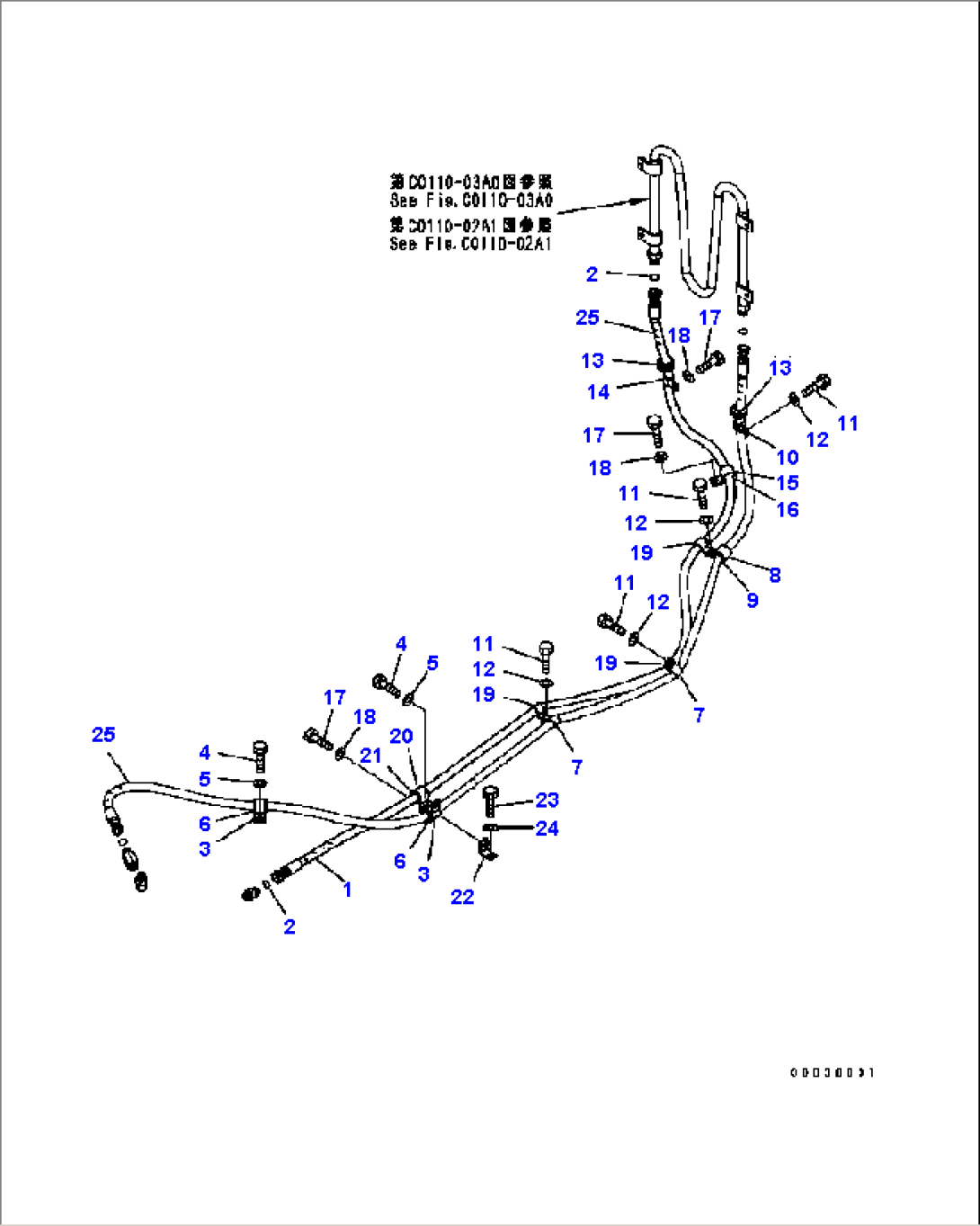

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-14-31221 | HOSE | B10001- | |
| 2 | 02896-21012 | O-RING | B10001- | |
| 3 | 04434-52712 | CLIP | B10001- | |
| 4 | 01010-81020 | BOLT | B10001- | |
| 5 | 01643-31032 | WASHER | B10001- | |
| 6 | 07095-20420 | CUSHION | B10001- | |
| 7 | 04434-51912 | CLIP | B10001- | |
| 8 | 04434-52712 | CLIP | B10001- | |
| 9 | 07095-20420 | CUSHION | B10001- | |
| 10 | 04434-51912 | CLIP | B10001- | |
| 11 | 01010-81020 | BOLT | B10001- | |
| 12 | 01643-31032 | WASHER | B10001- | |
| 13 | 418-06-12430 | GROMMET | B10001- | |
| 14 | 04434-51912 | CLIP | B10001- | |
| 15 | 04434-52712 | CLIP | B10001- | |
| 16 | 07095-20420 | CUSHION | B10001- | |
| 17 | 01010-81020 | BOLT | B10001- | |
| 18 | 01643-31032 | WASHER | B10001- | |
| 19 | 04434-51912 | CLIP | B10001- | |
| 20 | 04434-52712 | CLIP | B10001- | |
| 21 | 07095-20420 | CUSHION | B10001- | |
| 22 | 42A-16-11210 | PLATE | B10001- | |
| 23 | 01010-81020 | BOLT | B10001- | |
| 24 | 01643-31032 | WASHER | B10001- | |
| 25 | 417-14-31231 | HOSE | B10001- |
