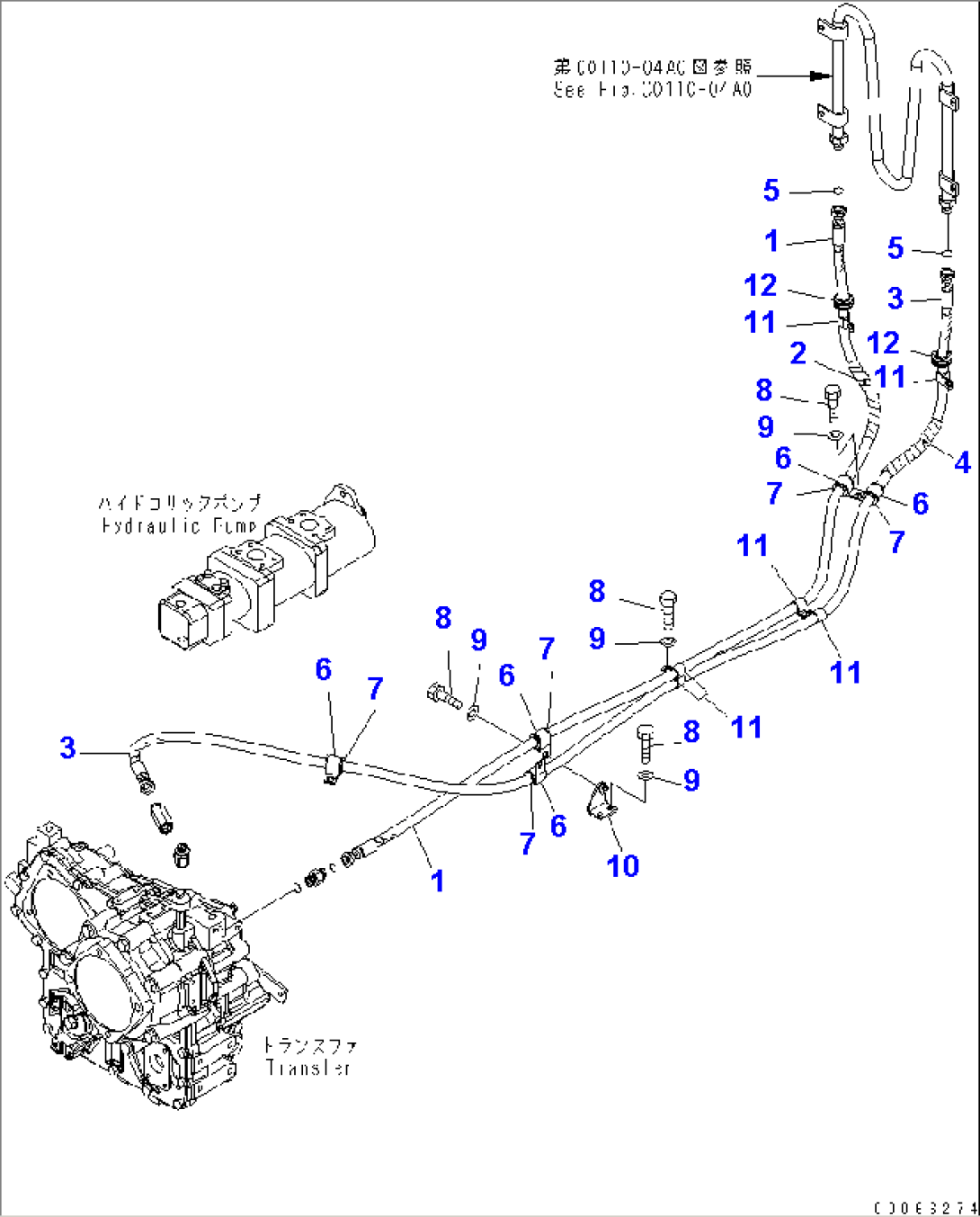

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-14-41220 | HOSE, 2500MM | 70001- | |
| 2 | 08210-01803 | SPIRAL TUBE | 70001- | |
| 3 | 417-14-41231 | HOSE, 3000MM | 70001- | |
| 4 | 08210-01803 | SPIRAL TUBE | 70001- | |
| 5 | 02896-21012 | O-RING | 70001- | |
| 6 | 04434-52712 | CLIP | 70001- | |
| 7 | 07095-20420 | CUSHION | 70001- | |
| 8 | 01010-81020 | BOLT | 70001- | |
| 9 | 01643-31032 | WASHER | 70001- | |
| 10 | 417-14-41210 | BRACKET | 70001- | |
| 11 | 04434-51912 | CLIP | 70001- | |
| 12 | 418-06-12430 | GROMMET | 70001- |
