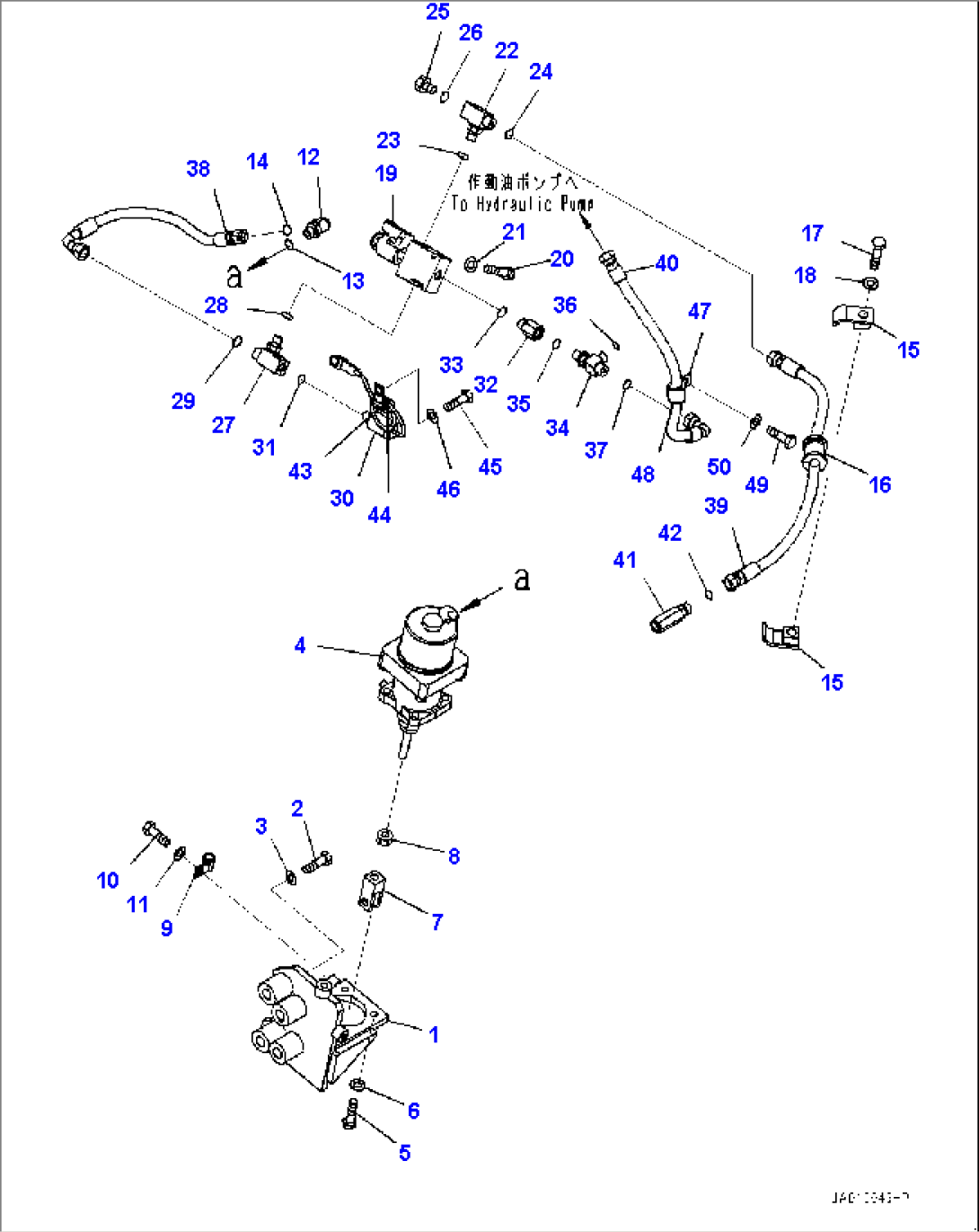

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-43-52110 | Bracket | 80001- | |
| 2 | 01010-81680 | Bolt | 80001- | |
| 3 | 01643-31645 | Washer | 80001- | |
| 4 | 418-43-37671 | Cylinder Assembly | 80001- | |
| 5 | 01010-81035 | Bolt | 80001- | |
| 6 | 01643-31032 | Washer | 80001- | |
| 7 | 04210-21248 | Yoke | 80001- | |
| 8 | 01582-11210 | Nut | 80001- | |
| 9 | 04434-51210 | Clip | 80001- | |
| 10 | 01010-81020 | Bolt | 80001- | |
| 11 | 01643-31032 | Washer | 80001- | |
| 12 | 56B-88-12320 | Elbow | 80001- | |
| 13 | 07000-12014 | O-ring | 80001- | |
| 14 | 02896-11009 | O-ring | 80001- | |
| 15 | 07094-10315 | Clamp | 80001- | |
| 16 | 07095-00316 | Cushion | 80001- | |
| 17 | 01010-81255 | Bolt | 80001- | |
| 18 | 01643-31232 | Washer | 80001- | |
| 19 | 419-43-37680 | Valve, Solenoid | 80001- | |
| 20 | 01010-80645 | Bolt | 80001- | |
| 21 | 01643-30623 | Washer | 80001- | |
| 22 | 418-43-37740 | Elbow | 80001- | |
| 23 | 07000-12014 | O-ring | 80001- | |
| 24 | 02896-11009 | O-ring | 80001- | |
| 25 | 07040-11409 | Plug | 80001- | |
| 26 | 07002-11423 | O-ring | 80001- | |
| 27 | 418-43-37770 | Tee | 80001- | |
| 28 | 07000-12014 | O-ring | 80001- | |
| 29 | 02896-11009 | O-ring | 80001- | |
| 30 | 418-43-37681 | Switch, Pressure, Parking Brake Indicator | 80001- | |
| 31 | 07002-11423 | O-ring | 80001- | |
| 32 | 22P-62-13350 | Adapter | 80001- | |
| 33 | 07000-12014 | O-ring | 80001- | |
| 34 | 20U-62-41820 | Tee | 80001- | |
| 35 | 07002-11423 | O-ring | 80001- | |
| 36 | 02896-11008 | O-ring | 80001- | |
| 37 | 02896-11009 | O-ring | 80001- | |
| 38 | 417-22-56180 | Hose | 80001- | |
| 39 | 417-22-56150 | Hose | 80001- | |
| 40 | 417-22-56130 | Hose | 80001- | |
| 41 | 417-43-57610 | Valve Assembly | 80001- | |
| 42 | 02896-11009 | O-ring | 80001- | |
| 43 | 04434-51612 | Clip | 80001- | |
| 44 | 07095-20211 | Cushion | 80001- | |
| 45 | 01010-81020 | Bolt | 80001- | |
| 46 | 01643-31032 | Washer | 80001- | |
| 47 | 04434-52110 | Clip | 80001- | |
| 48 | 07095-20314 | Cushion | 80001- | |
| 49 | 01010-81020 | Bolt | 80001- | |
| 50 | 01643-31032 | Washer | 80001- |
