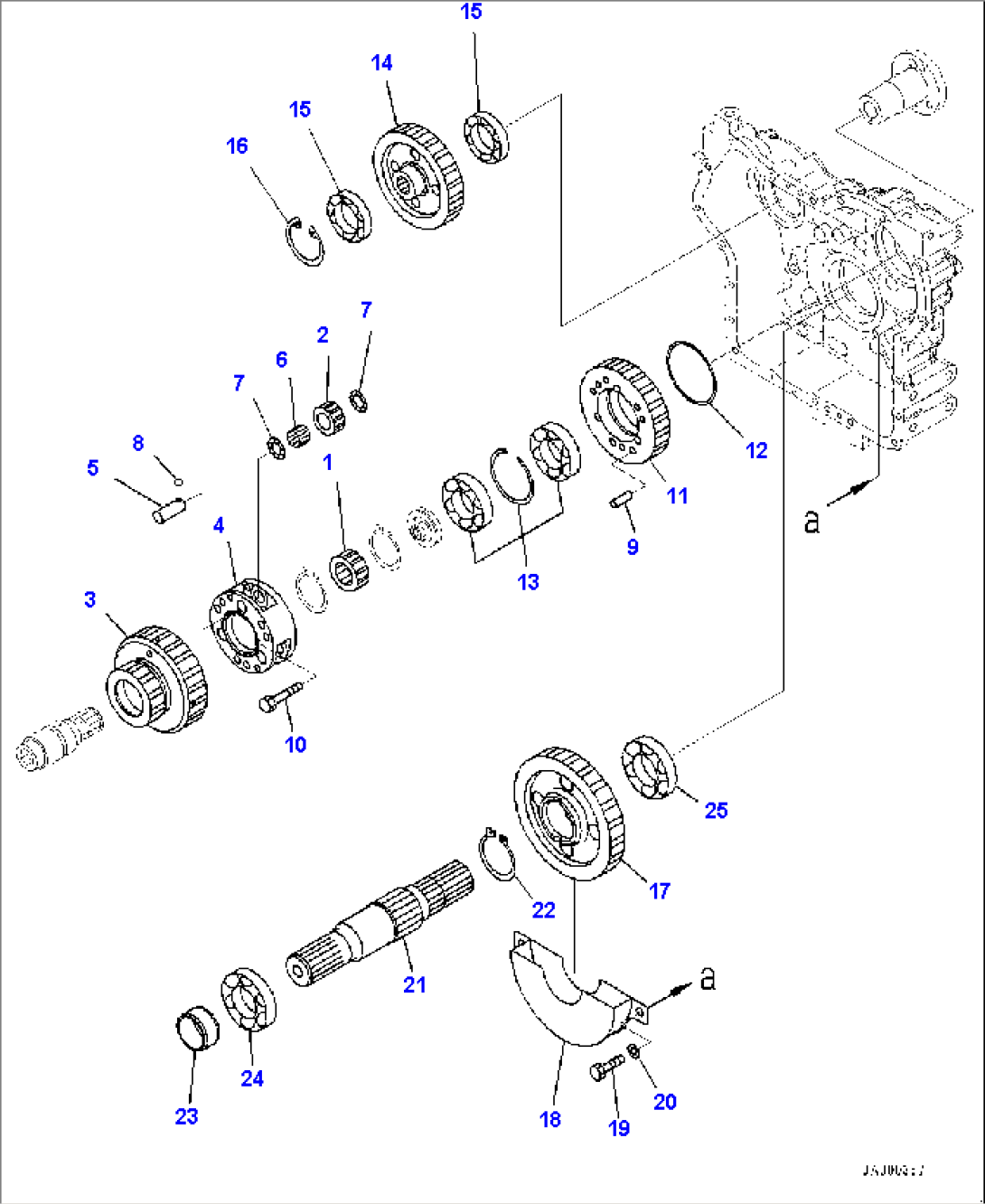

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-17-31004 | Transfer Assembly | 80001- | ||
| 1 | 418-17-32211 | Gear | 80001- | |
| 2 | 418-17-32411 | Gear | 80001- | |
| 3 | 418-17-32611 | Gear, Ring | 80001- | |
| 4 | 418-17-32312 | Carrier | 80001- | |
| 5 | 418-17-32511 | Shaft | 80001- | |
| 6 | 418-17-39311 | Bearing | 80001- | |
| 7 | 418-17-32570 | Washer, Thrust | 80001- | |
| 8 | 04260-00635 | Ball, Steel | 80001- | |
| 9 | 04020-01228 | Pin, Dowel | 80001- | |
| 10 | 01252-61260 | Bolt, Hexagon Socket Head | 80001- | |
| 11 | 417-17-33212 | Gear | 80001- | |
| 12 | 14Y-22-13270 | Seal Ring | 80001- | |
| 13 | 418-17-39321 | Bearing | 80001- | |
| 14 | 417-17-33220 | Gear | 80001- | |
| 15 | 06040-06011 | Bearing | 80001- | |
| 16 | 04065-09030 | Ring, Snap | 80001- | |
| 17 | 417-17-33231 | Gear | 80001- | |
| 18 | 417-17-33410 | Baffle | 80001- | |
| 19 | 01010-81225 | Bolt | 80001- | |
| 20 | 01643-31232 | Washer | 80001- | |
| 21 | 417-17-32121 | Shaft | 80001- | |
| 22 | 04064-07525 | Ring, Snap | 80001- | |
| 23 | 417-17-32132 | Spacer | 80001- | |
| 24 | 418-17-39330 | Bearing | 80001- | |
| 25 | 418-17-39340 | Bearing | 80001- |
