| Item | Part No. | Part Name | Qty | Serial No. |
| (566-15-81000) | TRANSMISSION ASS'Y | 11001- | ||

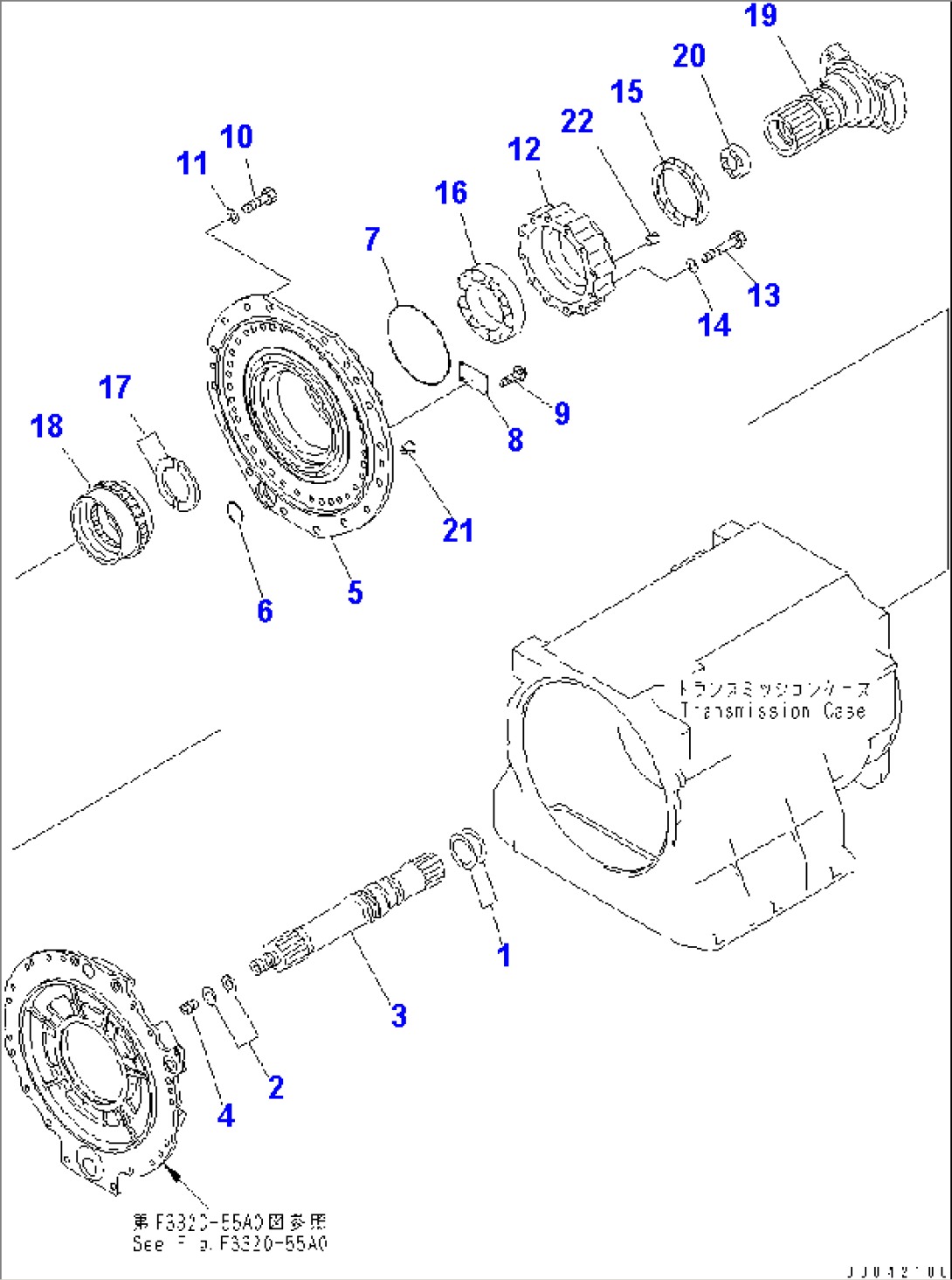

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3320-51A0 TO F3320-64A0. | ||||
| 1 | 07018-20753 | RING,SEAL | 11001- | |
| 2 | 07018-20353 | RING,SEAL | 11001- | |
| 566-15-01131 | SHAFT ASS'Y | 11001- | ||
| 3 | \6\ | SHAFT | 11001- | |
| 4 | 56D-15-29790 | PLUG | 11001- | |
| 5 | 566-15-83110 | CASE | 11001- | |
| 6 | 07000-72055 | O-RING (K2) | 11001- | |
| 7 | 07000-75185 | O-RING (K2) | 11001- | |
| 8 | (\7\09608-05080) | PLATE, NAME,(LIMITED SUPPLY) | 11001- | |
| 9 | 04418-13060 | SCREW | 11001- | |
| 10 | 01010-61645 | BOLT | 11001- | |
| 11 | 01643-31645 | WASHER | 11001- | |
| 12 | 569-15-33120 | CAGE | 11001- | |
| 13 | 01010-61480 | BOLT | 11001- | |
| 14 | 01643-31445 | WASHER | 11001- | |
| 15 | 07012-50120 | SEAL,OIL (K2) | 11001- | |
| 16 | 569-15-39650 | BEARING | 11001- | |
| 17 | 569-15-32180 | SPACER | 11001- | |
| 18 | 566-15-83410 | GEAR | 11001- | |
| 19 | 569-15-42130 | COUPLING | 11001- | |
| 20 | 569-15-39660 | BEARING | 11001- | |
| 21 | 07049-01620 | PLUG | 11001- | |
| 22 | 07049-02025 | PLUG | 11001- |
