| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| 17M-15-00072 | TRANSMISSION AS | (1238)- | ||
| \0\17M-15-00071 | TRANSMISSION ASS'Y | 10085-(1237) | ||
| \0\17M-15-00070 | TRANSMISSION ASS'Y | 10001-10084 | ||

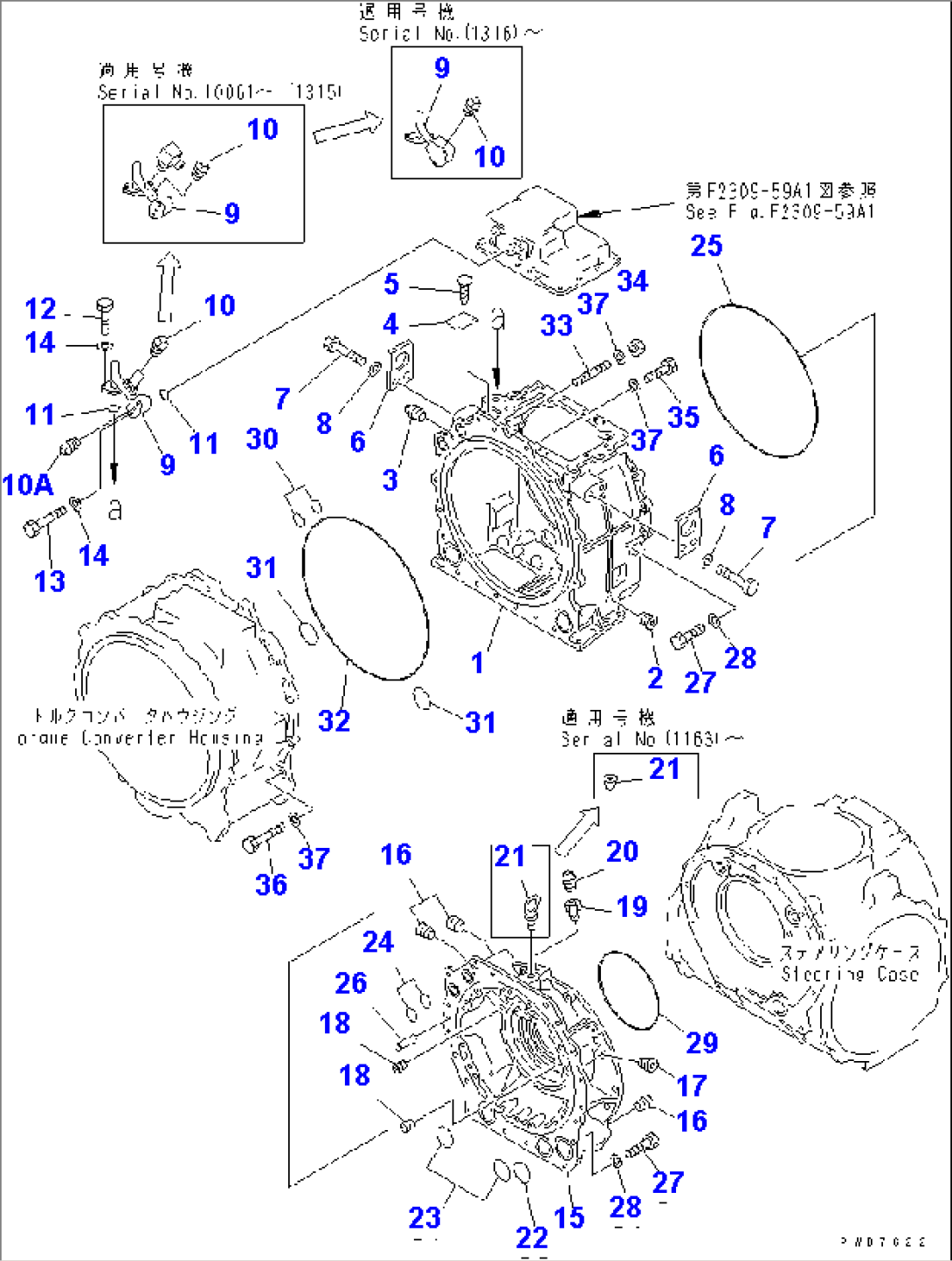

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A1 TO F2320-59A1. | ||||
| 17M-15-00200 | CASE ASS'Y | 10001- | ||
| 1 | \6\ | CASE | 10001- | |
| 2 | 07043-71019 | PLUG | 10001- | |
| 3 | 07042-80108 | PLUG | 10001- | |
| 4 | 09608-05080 | PLATE, NAME,(LIMITED SUPPLY) | 10001- | |
| 5 | 04418-13060 | SCREW | 10001- | |
| 6 | 195-15-41710 | PLATE | 10001- | |
| 7 | 01010-62055 | BOLT | 10001- | |
| 8 | 01643-32060 | WASHER | 10001- | |
| 9 | 17M-15-24171 | TUBE | 10001- | |
| 9 | 17M-15-24170 | TUBE | 10001-(1315) | |
| 10 | 07042-80108 | PLUG | 10061- | |
| 10 | 07042-00108 | PLUG | 10001-10060 | |
| 10A | 07042-80108 | PLUG | 10001-(1315) | |
| 11 | 07000-73028 | O-RING (K2) | 10001- | |
| 12 | 01010-81040 | BOLT | 10001- | |
| 13 | 01010-81055 | BOLT | 10001- | |
| 14 | 01643-31032 | WASHER | 10001- | |
| 17M-15-00210 | CASE ASS'Y | 10001- | ||
| 15 | \6\ | CASE | 10001- | |
| 16 | 07043-71019 | PLUG | 10001- | |
| 17 | 07043-70415 | PLUG | 10001- | |
| 18 | 562-15-11460 | PLUG | 10001- | |
| 19 | 283-35-11120 | ADAPTER | 10001- | |
| 20 | 07042-80108 | PLUG | 10001- | |
| 21 | 07048-01815 | PLUG | 10001- | |
| 21 | 07048-02015 | PLUG | 10001-(1274) | |
| 21 | 04530-02030 | BOLT | 10001-(1162) | |
| 22 | 07000-72085 | O-RING (K2) | 10001- | |
| 23 | 07000-72080 | O-RING (K2) | 10001- | |
| 24 | 07000-73048 | O-RING (K2) | 10001- | |
| 25 | 195-15-49630 | O-RING (K2) | 10001- | |
| 26 | 04020-01638 | PIN,DOWEL | 10001- | |
| 27 | 01010-61645 | BOLT | 10001- | |
| 28 | 01643-31645 | WASHER | 10001- | |
| 29 | 07000-45290 | O-RING (K5) | 10001- | |
| 30 | 07000-73048 | O-RING (K5) | 10001- | |
| 31 | 07000-72085 | O-RING (K5) | 10001- | |
| 32 | 195-15-49620 | O-RING (K5) | 10001- | |
| 33 | 01144-51640 | STUD | 10001- | |
| 34 | 01580-11613 | NUT | 10001- | |
| 35 | 01010-61645 | BOLT | 10001- | |
| 36 | 01010-61655 | BOLT | 10001- | |
| 37 | 01643-31645 | WASHER | 10001- |
