| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| 566-15-72000 | TRANSMISSION ASS'Y | 2001- | ||
| 566-15-71003 | TRANSMISSION ASS'Y | (5454)-002000 | ||
| 566-15-71002 | TRANSMISSION ASS'Y | 1055-(5453) | ||
| 566-15-01100 | TRANSMISSION ASS'Y | 1001-1054 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2401 TO 2531. | ||||

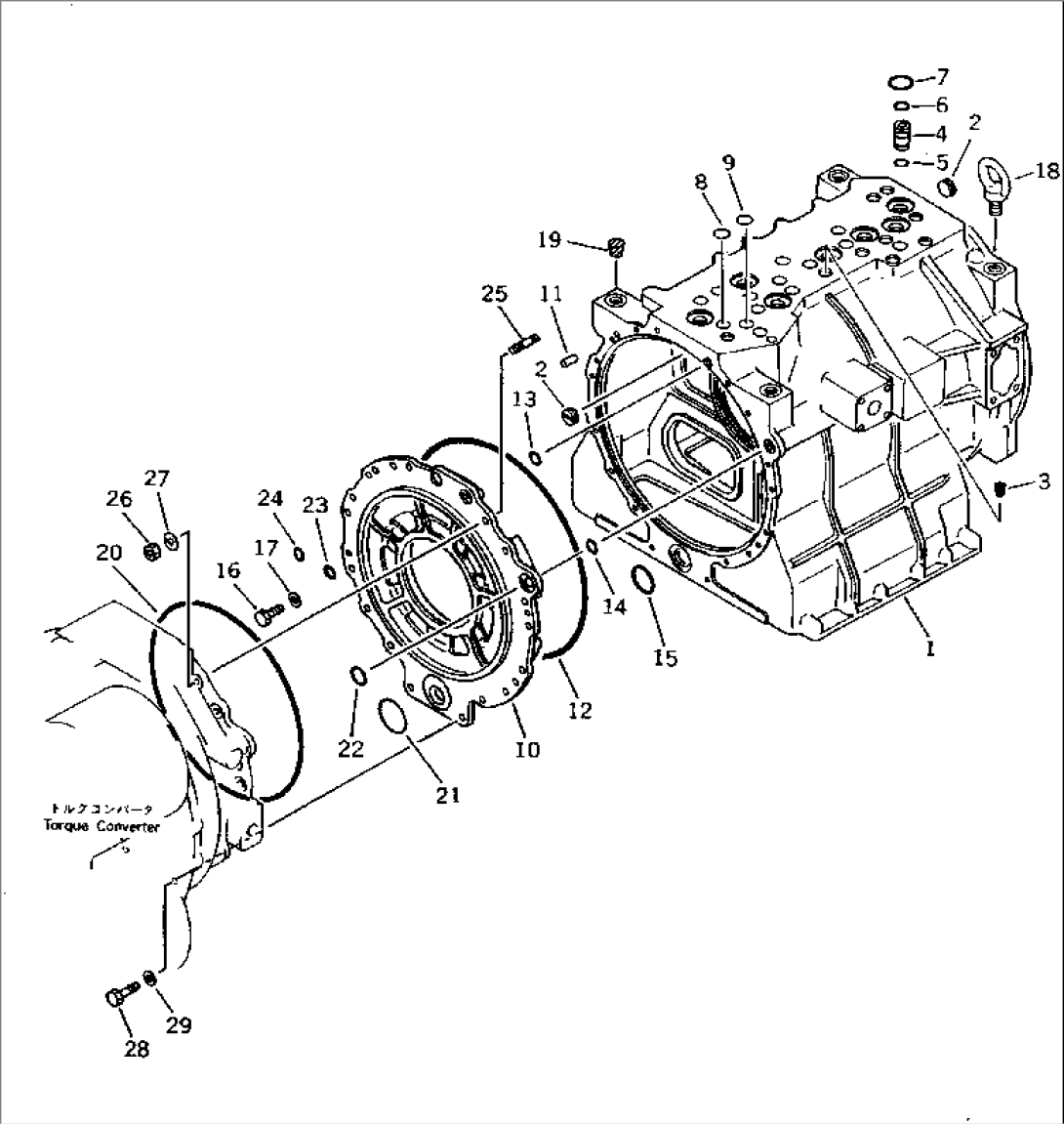

| 566-15-01111 | CASE ASS'Y | 1055- | ||
| 566-15-01110 | CASE ASS'Y | 1001-1054 | ||
| 1 | \6\ | CASE | 1055- | |
| \6\ | CASE | 1001-1054 | ||
| 2 | 569-15-31271 | PLUG | (4618)- | |
| \0\569-15-31270 | PLUG | 1001-(4617) | ||
| 3 | 198-15-26510 | PLUG,(D=1.4MM) | 1001- | |
| 4 | 569-15-31310 | SLEEVE | 1001- | |
| 5 | 07000-73022 | O-RING (K3) | 1001- | |
| 6 | 07000-73025 | O-RING (K3) | 1001- | |
| 7 | 07000-73045 | O-RING (K3) | 1001- | |
| 8 | 07000-72020 | O-RING (K3) | 1001- | |
| 9 | 07000-73035 | O-RING (K3) | 1001- | |
| 10 | 566-15-71181 | HOUSING | 1001- | |
| 11 | 04020-01434 | PIN,DOWEL | 1001- | |
| 12 | 07000-05455 | O-RING (K3) | 1001- | |
| 13 | 07000-23025 | O-RING (K3) | 1001- | |
| 14 | 07000-73035 | O-RING (K3) | 1001- | |
| 15 | 07000-12055 | O-RING (K3) | 1001- | |
| 16 | 01010-81235 | BOLT | 1001- | |
| 17 | 01643-31232 | WASHER | 1001- | |
| 18 | 04530-12438 | BOLT,EYE | 1001- | |
| 19 | 07049-02430 | PLUG | 1001- | |
| 20 | 07000-05400 | O-RING (K3) | 1001- | |
| 21 | 07000-12075 | O-RING (K3) | 1001- | |
| 22 | 07000-73035 | O-RING (K3) | 1001- | |
| 23 | 07000-23025 | O-RING (K3) | 1001- | |
| 24 | 07000-73025 | O-RING (K3) | 1001- | |
| 25 | 01144-51240 | STUD | 1001- | |
| 26 | 01580-11210 | NUT | 1001- | |
| 27 | 01643-31232 | WASHER | 1001- | |
| 28 | 01010-81245 | BOLT | 1001- | |
| 29 | 01643-31232 | WASHER | 1001- |
