| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| 561-15-61001 | TRANSMISSION ASS'Y | 4188- | ||
| \0\561-15-51051 | TRANSMISSION ASS'Y | (1275)-004187 | ||
| 561-15-51050 | TRANSMISSION ASS'Y | 4001-(1274) | ||

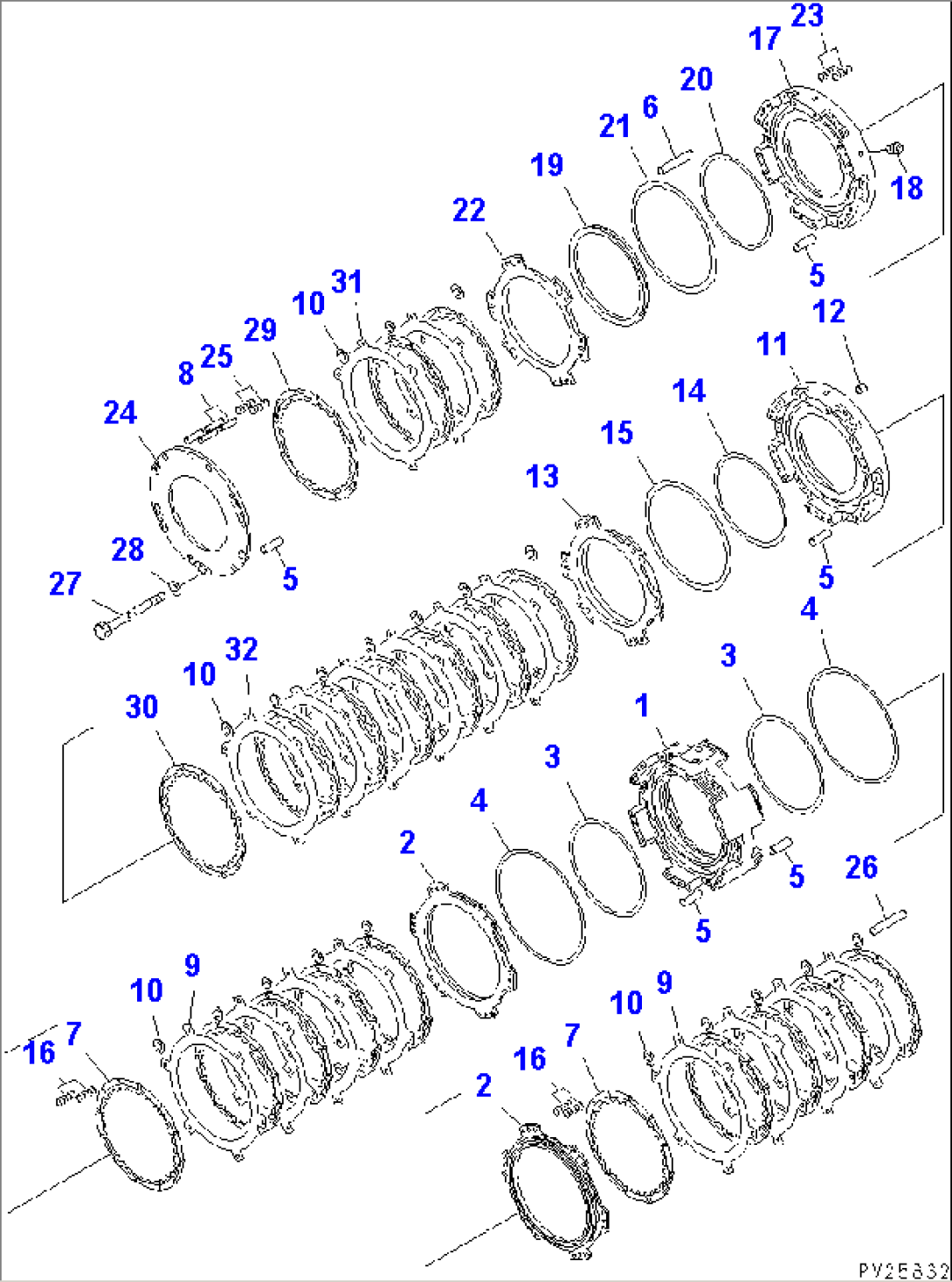

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F3320-51A0 TO F3320-64A0. | ||||
| 1 | 561-15-51131 | HOUSING | 4001- | |
| 2 | 561-15-52910 | PISTON | 4001- | |
| 3 | 195-15-39220 | RING,SEAL (K2) | (1079)- | |
| 561-15-59250 | RING,SEAL (K2) | 4001-(1078) | ||
| 4 | 175-15-59240 | RING,SEAL (K2) | (1079)- | |
| 561-15-59280 | RING,SEAL (K2) | 4001-(1078) | ||
| 5 | 04020-01842 | PIN,DOWEL | 4001- | |
| 6 | 561-15-41270 | PIN | 4001- | |
| 7 | 561-15-42711 | DISC | 4001- | |
| 8 | 561-15-41260 | PIN | 4001- | |
| 9 | 561-15-52950 | PLATE | 4001- | |
| 10 | 195-15-12880 | SPRING | 4001- | |
| 11 | 561-15-51143 | HOUSING | 4001- | |
| 12 | 561-15-51310 | SLEEVE | 4001- | |
| 13 | 561-15-52580 | PISTON | 4001- | |
| 14 | 561-15-59290 | RING,SEAL (K2) | 4001- | |
| 15 | 175-15-59240 | RING (K2) | (1129)- | |
| 561-15-59280 | RING,SEAL (K2) | 4001-(1128) | ||
| 16 | 425-15-12920 | SPRING¤ (L= 68.0) | 4001- | |
| 561-15-00570 | HOUSING ASS'Y | 4001- | ||
| 17 | \6\ | HOUSING | 4001- | |
| 18 | 198-15-26510 | PLUG | 4001- | |
| 19 | 561-15-52593 | PISTON | 4001- | |
| 20 | 426-15-19220 | RING,SEAL (K2) | (1079)- | |
| 561-15-59320 | RING,SEAL (K2) | 4001-(1078) | ||
| 21 | 175-15-59240 | RING (K2) | (1129)- | |
| 561-15-59280 | RING,SEAL (K2) | 4001-(1128) | ||
| 22 | 561-15-52971 | PLATE | 4001- | |
| 23 | 198-15-15551 | SPRING | 4001- | |
| 24 | 561-15-51165 | PLATE | 4001- | |
| 25 | 124-15-42910 | SPRING | 4001- | |
| 26 | 561-15-41280 | PIN | 4001- | |
| 27 | 561-15-51290 | BOLT | 4001- | |
| 28 | 01643-31645 | WASHER | 4001- | |
| 29 | 561-15-52811 | DISC | 4001- | |
| 30 | 561-15-52571 | DISC | 4001- | |
| 31 | 561-15-52931 | PLATE | 4001- | |
| 32 | 561-15-52560 | PLATE | 4001- |
