| Item | Part No. | Part Name | Qty | Serial No. |
| 569-15-51000 | TRANSMISSION ASS'Y | 7001- | ||

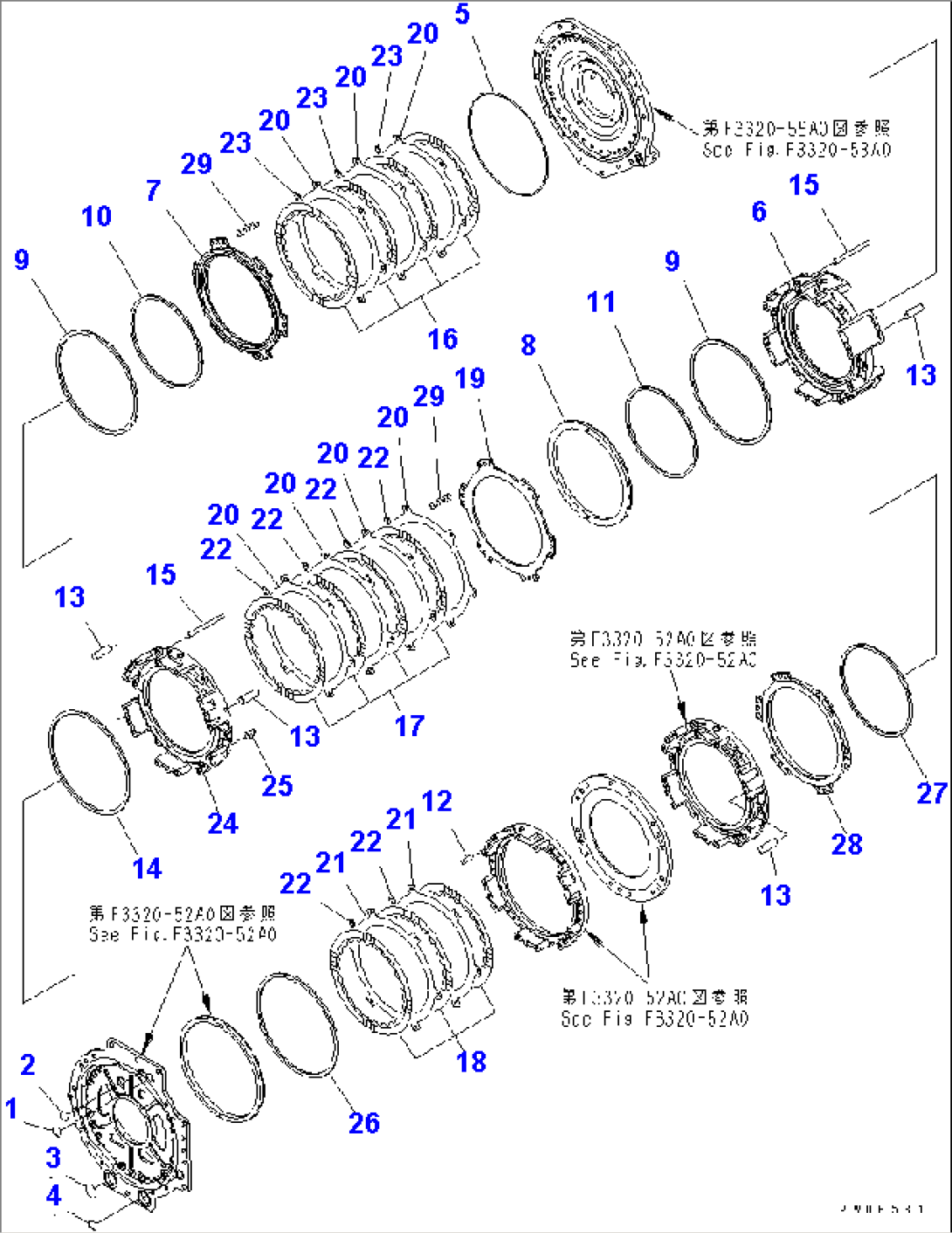

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3320-51A0 TO F3320-62A0. | ||||
| 1 | 07000-73035 | O-RING (K2) | 7001- | |
| 2 | 07000-72020 | O-RING (K2) | 7001- | |
| 3 | 07000-F2065 | O-RING (K2) | 7001- | |
| 4 | 07000-73038 | O-RING (K2) | 7001- | |
| 5 | 569-15-59110 | O-RING (K2) | 7001- | |
| 6 | 569-15-51131 | HOUSING,1ST | 7001- | |
| 7 | 569-15-52760 | PISTON,1ST | 7001- | |
| 8 | 569-15-52720 | PISTON,2ND | 7001- | |
| 9 | 562-15-19241 | RING,SEAL (K2) | 7001- | |
| 10 | 568-15-12840 | RING,SEAL (K2) | 7001- | |
| 11 | 198-15-29230 | RING,SEAL (K2) | 7001- | |
| 12 | 04020-01434 | PIN,DOWEL | 7001- | |
| 13 | 04020-01638 | PIN,DOWEL | 7001- | |
| 14 | 562-15-19241 | RING,SEAL (K2) | 7001- | |
| 15 | 145-14-12760 | PIN | 7001- | |
| 16 | 569-15-52830 | DISC | 7001- | |
| 17 | 569-15-52830 | DISC | 7001- | |
| 18 | 569-15-52830 | DISC | 7001- | |
| 19 | 569-15-52840 | PLATE | 7001- | |
| 20 | 561-15-52940 | PLATE | 7001- | |
| 21 | 561-15-52940 | PLATE | 7001- | |
| 22 | 175-15-42880 | SPRING | 7001- | |
| 23 | 175-15-42880 | SPRING | 7001- | |
| 24 | 569-15-51141 | HOUSING,REVERSE | 7001- | |
| 25 | 569-15-41310 | SLEEVE | 7001- | |
| 26 | 562-15-19241 | RING,SEAL (K2) | 7001- | |
| 27 | 568-15-12840 | RING,SEAL (K2) | 7001- | |
| 28 | 569-15-42772 | PISTON,REVERSE | 7001- | |
| 29 | 425-15-12920 | SPRING¤ (L= 68.0) | 7001- |
