| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| 567-15-41002 | TRANSMISSION ASS'Y | 1061- | ||
| 567-15-41001 | TRANSMISSION ASS'Y | 1001-1060 | ||

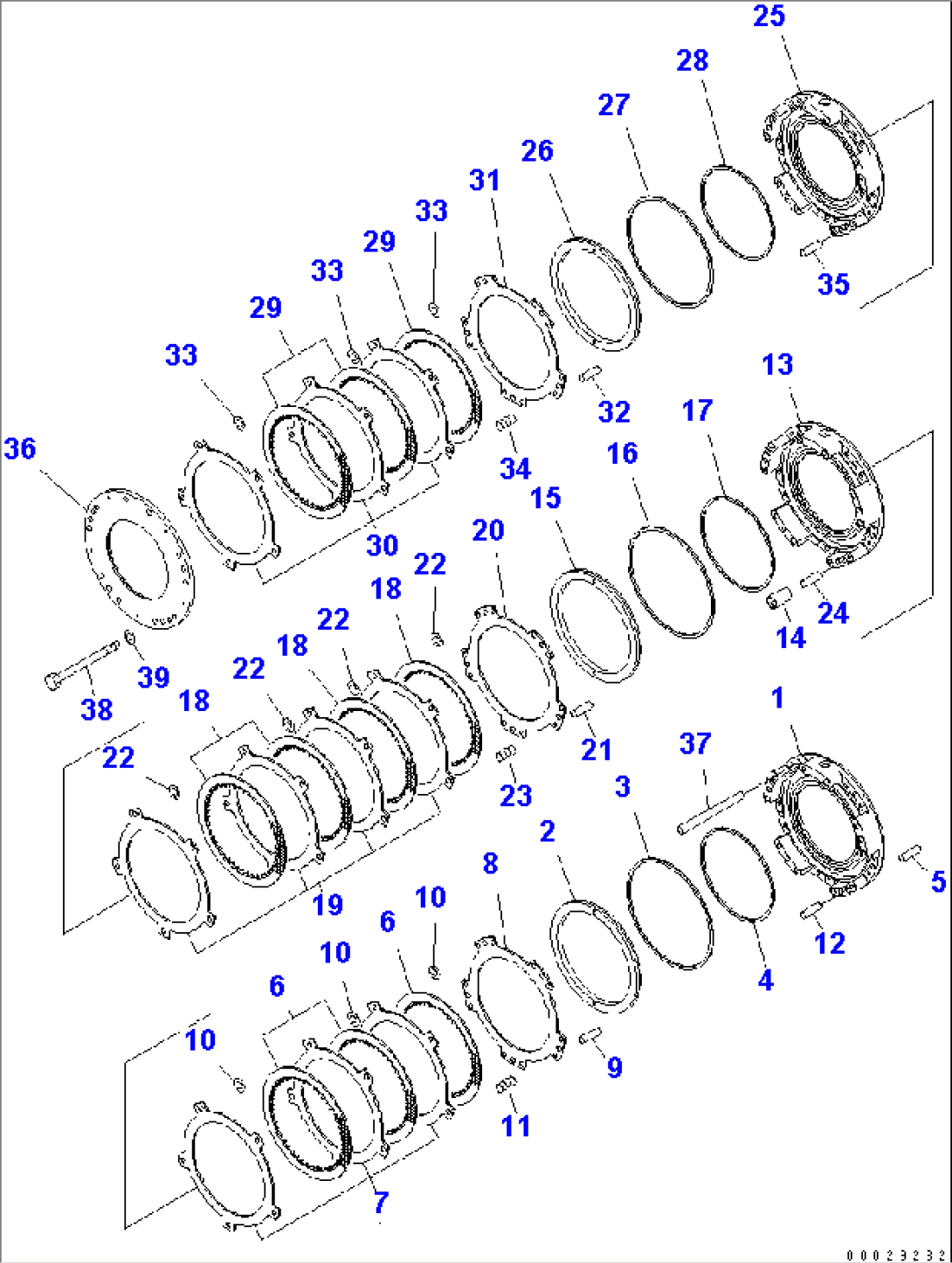

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3320-51A0 TO F3320-62A0. | ||||
| 1 | 567-15-41130 | HOUSING,1ST | 1001- | |
| 2 | 567-15-42760 | PISTON,1ST | 1001- | |
| 3 | 425-15-19250 | RING,SEAL (K2) | 1001- | |
| 4 | 113-15-12870 | RING,SEAL (K2) | 1001- | |
| 5 | 04020-01228 | PIN,DOWEL | 1001- | |
| 6 | 712-85-12710 | DISC | 1001- | |
| 7 | 425-15-22720 | PLATE | 1001- | |
| 8 | 567-15-42730 | PLATE | 1001- | |
| 9 | 561-15-41250 | PIN | 1001- | |
| 10 | 175-15-42880 | SPRING | 1001- | |
| 11 | 567-15-41250 | SPRING | (101003)- | |
| 11 | 154-15-36110 | SPRING | 1001-(101002) | |
| 12 | 04020-01228 | PIN,DOWEL | 1001- | |
| 13 | 567-15-41141 | HOUSING,REVERSE | (5398)- | |
| 13 | 567-15-41140 | HOUSING,REVERSE | 1001-(5397) | |
| 14 | 569-15-41310 | SLEEVE | (5398)- | |
| 15 | 567-15-42760 | PISTON,REVERSE | 1001- | |
| 16 | 425-15-19250 | RING,SEAL (K2) | 1001- | |
| 17 | 113-15-12870 | RING,SEAL (K2) | 1001- | |
| 18 | 712-85-12710 | DISC | 1001- | |
| 19 | 425-15-22720 | PLATE | 1001- | |
| 20 | 567-15-42730 | PLATE | 1001- | |
| 21 | 569-15-31280 | PIN | 1001- | |
| 22 | 175-15-42880 | SPRING | 1001- | |
| 23 | 234-15-15230 | SPRING, (L= 52.0) | 1001- | |
| 24 | 04020-01228 | PIN,DOWEL | 1001- | |
| 25 | 567-15-41130 | HOUSING,2ND | 1001- | |
| 26 | 567-15-42760 | PISTON,2ND | 1001- | |
| 27 | 425-15-19250 | RING,SEAL (K2) | 1001- | |
| 28 | 113-15-12870 | RING,SEAL (K2) | 1001- | |
| 29 | 712-85-12710 | DISC | 1001- | |
| 30 | 425-15-22720 | PLATE | 1001- | |
| 31 | 567-15-42730 | PLATE | 1001- | |
| 32 | 569-15-31280 | PIN | 1001- | |
| 33 | 175-15-42880 | SPRING | 1001- | |
| 34 | 567-15-41250 | SPRING | (101003)- | |
| 34 | 154-15-36110 | SPRING | 1001-(101003) | |
| 35 | 04020-01228 | PIN,DOWEL | 1001- | |
| 36 | 567-15-41160 | PLATE | 1001- | |
| 37 | 425-15-11270 | PIN | 1001- | |
| 38 | 567-15-41260 | BOLT | 1001- | |
| 39 | 01643-31445 | WASHER | 1001- |
