| Item | Part No. | Part Name | Qty | Serial No. |
| 561-15-00802 | TRANSMISSION ASS'Y | (1480)- | ||
| \0\561-15-00801 | TRANSMISSION ASS'Y | 2299-(1479) | ||
| 561-15-00800 | TRANSMISSION ASS'Y | 2001-2298 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2531. | ||||

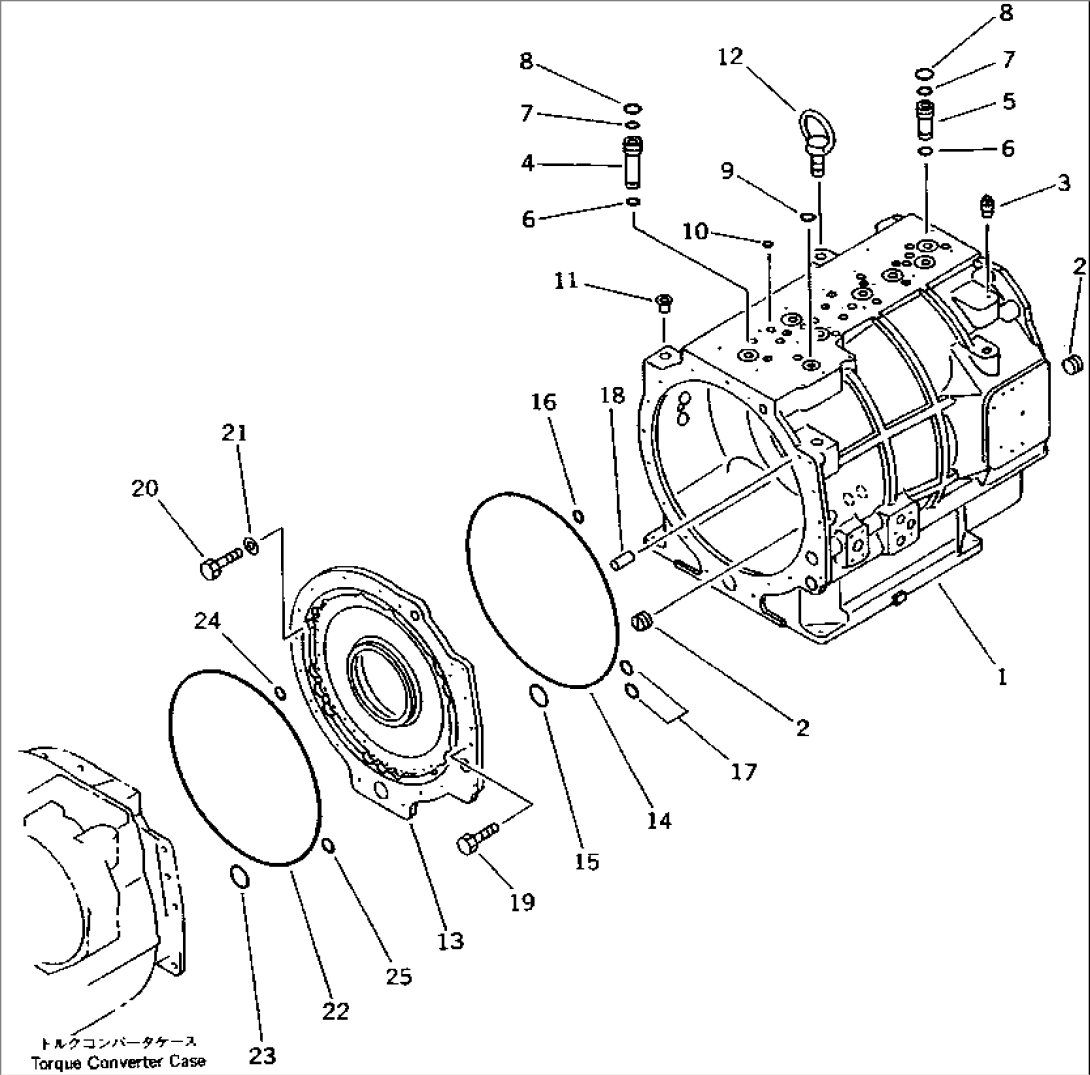

| 561-15-00810 | CASE ASS'Y | 2001- | ||
| 1 | \6\ | CASE | 2001- | |
| 2 | 569-15-31270 | PLUG | 2001- | |
| 3 | 07042-00211 | PLUG | 2001- | |
| 4 | 561-15-41330 | SLEEVE | 2001- | |
| 5 | 569-15-31310 | SLEEVE | 2001- | |
| 6 | 07000-73022 | O-RING (K2) | 2001- | |
| 7 | 07000-73025 | O-RING (K2) | 2001- | |
| 8 | 07000-73045 | O-RING (K4) | 2001- | |
| 9 | 07000-73032 | O-RING (K4) | 2001- | |
| 10 | 07000-72020 | O-RING (K4) | 2001- | |
| 11 | 07048-02820 | PLUG | 2001- | |
| 12 | 04530-03045 | BOLT | 2001- | |
| 13 | 561-15-51182 | HOUSING | 2001- | |
| 14 | 195-21-12380 | O-RING (K2) | 2001- | |
| 15 | 07000-12055 | O-RING (K2) | 2001- | |
| 16 | 07000-73032 | O-RING (K2) | 2001- | |
| 17 | 07000-73038 | O-RING (K2) | 2001- | |
| 18 | 04020-01434 | PIN,DOWEL | 2001- | |
| 19 | 01010-51020 | BOLT | 2001- | |
| 20 | 01010-51440 | BOLT | 2001- | |
| 21 | 01643-31445 | WASHER | 2001- | |
| 22 | 195-21-12380 | O-RING (K5) | 2001- | |
| 23 | 07000-12055 | O-RING (K5) | 2001- | |
| 24 | 07000-73032 | O-RING (K5) | 2001- | |
| 25 | 07000-73038 | O-RING (K5) | 2001- |
