| Item | Part No. | Part Name | Qty | Serial No. |
| 134-15-61200 | TRANSMISSION ASS'Y | 1001- | ||

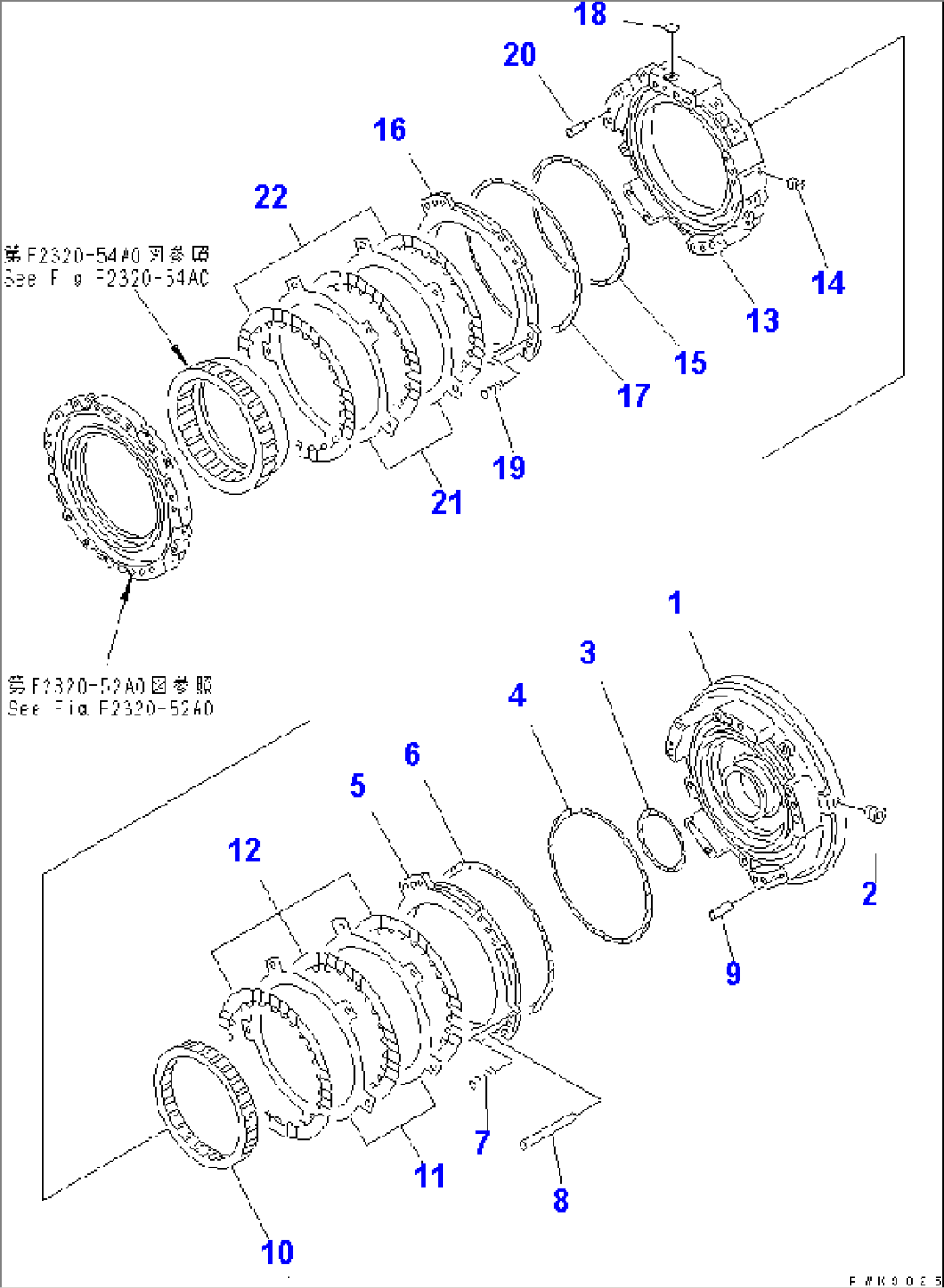

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-60A0. | ||||
| 134-15-00250 | HOUSING ASS'Y | 1001- | ||
| 1 | \6\ | HOUSING | 1001- | |
| 2 | 07043-70415 | PLUG | 1001- | |
| 3 | 14X-15-19220 | SEAL RING | 1001- | |
| 4 | 232-15-19220 | RING (K3) | 1001- | |
| 5 | 14X-15-12760 | PISTON | 1001- | |
| 6 | 144-15-22881 | RING (K3) | 1001- | |
| 7 | 103-15-22911 | SPRING | 1001- | |
| 8 | 155-15-12770 | PIN | 1001- | |
| 9 | 04020-01228 | PIN | 1001- | |
| 10 | 14X-15-12680 | GEAR | 1001- | |
| 11 | 424-15-12720 | PLATE | 1001- | |
| 12 | 424-15-12711 | DISC | 1001- | |
| 14X-15-00240 | HOUSING ASS'Y | 1001- | ||
| 13 | \6\ | HOUSING | 1001- | |
| 14 | 145-14-11320 | PLUG | 1001- | |
| 15 | 113-15-12870 | RING (K3) | 1001- | |
| 16 | 424-15-12760 | PISTON | 1001- | |
| 17 | 144-15-22881 | RING (K3) | 1001- | |
| 18 | 07000-72020 | O-RING (K3) | 1001- | |
| 19 | 103-15-22911 | SPRING | 1001- | |
| 20 | 04020-01228 | PIN | 1001- | |
| 21 | 424-15-12720 | PLATE | 1001- | |
| 22 | 424-15-12711 | DISC | 1001- |
