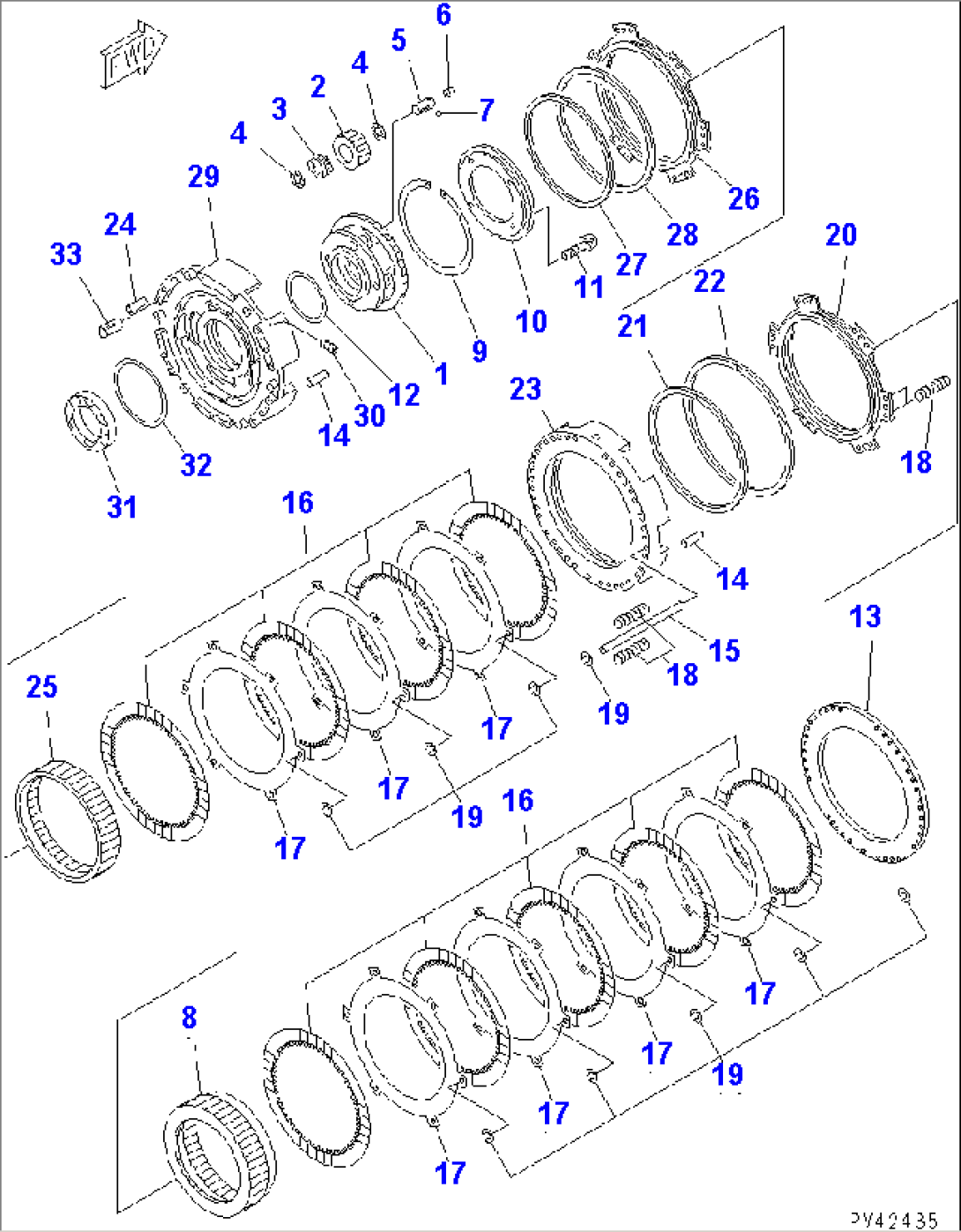

| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||
| (427-15-01001) | TORQFLOW ASS'Y | (1045)-(1100) | ||
| (\0\427-15-01000) | TORQFLOW ASS'Y | 10001-(1044) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2301 TO 2524. | ||||
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (427-15-00013) | TRANSMISSION ASS'Y | (1144)- | ||
| (\0\427-15-00012) | TRANSMISSION ASS'Y | (1101)-(1143) | ||
| (427-15-00011) | TRANSMISSION ASS'Y | 10001-(1100) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2524. | ||||
| 1 | 427-15-12330 | CARRIER | 10001- | |
| 2 | 427-15-12430 | GEAR | 10001- | |
| 3 | 427-15-19260 | BEARING | 10575- | |
| \0\09232-03838 | BEARING | 10001-10574 | ||
| 4 | 09233-13820 | WASHER,THRUST | (1166)- | |
| \0\568-15-12551 | WASHER,THRUST | 10001-(1165) | ||
| 427-15-00140 | SHAFT ASS'Y | 10001- | ||
| 5 | \6\ | SHAFT | 10001- | |
| 6 | 568-15-11380 | PLUG | 10001- | |
| 7 | 04260-00635 | BALL | 10001- | |
| 8 | 427-15-12610 | GEAR,RING | 10001- | |
| 9 | 427-15-19530 | RING,SNAP | 10001- | |
| 10 | 427-15-12380 | COVER | 10001- | |
| 11 | 01252-31035 | BOLT | 10001- | |
| 12 | 195-15-49240 | RING,SEAL | 10001- | |
| 13 | 427-15-11130 | HOUSING | 10001- | |
| 14 | 234-71-11310 | PIN,DOWEL | 10001- | |
| 15 | 568-15-11370 | PIN,(D=20¤ L=237.5) | 10001- | |
| 16 | 198-15-22710 | DISC | 10001- | |
| 17 | 198-15-22720 | PLATE | 10001- | |
| 18 | 195-15-12850 | SPRING,(L=91) | 10001- | |
| 19 | 195-15-12880 | SPRING | 10001- | |
| 20 | 198-15-22740 | PISTON,1ST | 10001- | |
| 21 | 154-15-22811 | RING,SEAL (K3) | 10001- | |
| 22 | 198-15-29210 | RING,SEAL (K3) | 10001- | |
| 23 | 427-15-11140 | HOUSING,1ST | 10001- | |
| 24 | 04020-01842 | PIN,DOWEL | 10001- | |
| 25 | 427-15-12620 | GEAR,RING | 10001- | |
| 26 | 427-15-12760 | PISTON,2ND | 10001- | |
| 27 | 195-15-29210 | RING,SEAL (K3) | 10001- | |
| 28 | 427-15-19210 | RING,SEAL (K3) | 10001- | |
| 427-15-11500 | HOUSING COMPLETE | (1227)- | ||
| \0\427-15-00170 | HOUSING ASS'Y | 10001-(1226) | ||
| 29 | \6\ | HOUSING,2ND | (1227)- | |
| \6\ | HOUSING,2ND | 10001-(1226) | ||
| 30 | 234-15-12790 | SCREW | 10001-(1226) | |
| 31 | 06000-06930 | BEARING | 10001- | |
| 32 | 07018-12605 | RING,SEAL | 10001- | |
| 33 | 562-15-11380 | SLEEVE | (1227)- | |
| 09231-01830 | SLEEVE | 10001-(1226) |
