| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (714-13-10001) | TORQFLOW ASS'Y | (77880)- | ||
| (714-13-10000) | TORQFLOW ASS'Y | 53001-(77879) | ||

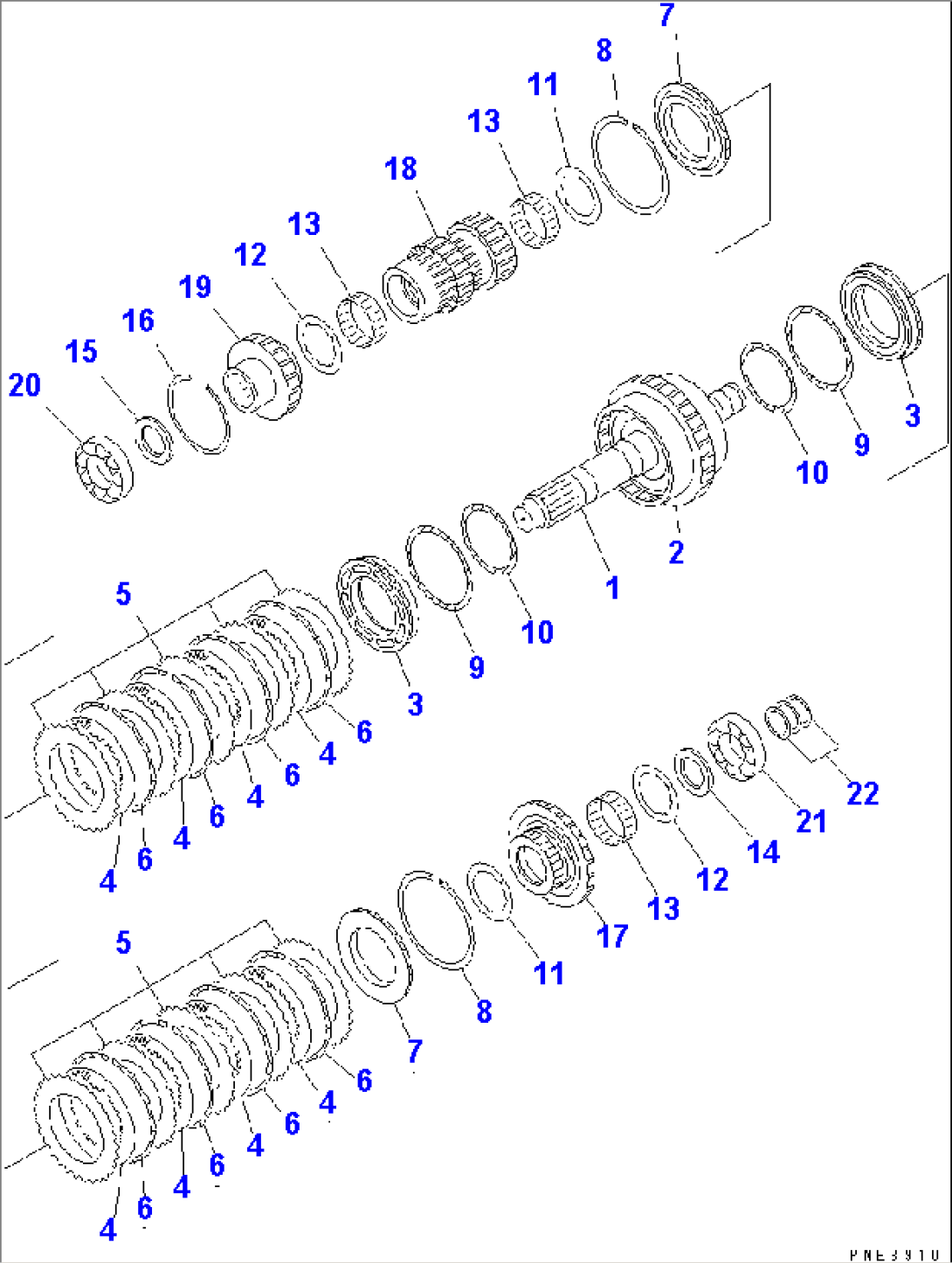

| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-69A0. | ||||
| 714-13-12020 | CLUTCH ASS'Y,1ST AND 3RD | 53001- | ||
| 714-13-12120 | SHAFT ASS'Y | 53001- | ||
| 1 | \6\ | SHAFT | 53001- | |
| 2 | \6\ | HOUSING ASS'Y | 53001- | |
| 3 | 714-13-12660 | PISTON,1ST AND 3RD | 53001- | |
| 4 | 714-12-19711 | DISC | (77652)- | |
| 4 | \0\714-12-19710 | DISC | 53001-(77651) | |
| 5 | 714-16-19730 | PLATE,SEPARATE | 53001- | |
| 6 | 56D-15-12710 | SPRING,WAVE | 54124- | |
| 6 | \0\419-15-12133 | SPRING,WAVE | 53001-54123 | |
| 7 | 714-12-12610 | PLATE,END | 53001- | |
| 8 | 419-15-12140 | RING,SNAP | 53001- | |
| 9 | 714-16-19220 | RING,SEAL | 53001- | |
| 10 | 714-16-19210 | RING,SEAL | 53001- | |
| 11 | 714-08-19570 | WASHER,THRUST | 53001- | |
| 12 | 714-08-19560 | WASHER,THRUST | 53001- | |
| 13 | 419-15-12660 | BEARING,NEEDLE | 53001- | |
| 14 | 714-12-12740 | SPACER | 53001- | |
| 15 | 714-12-12720 | SPACER | 53001- | |
| 16 | 714-12-19510 | RING,SNAP | 53001- | |
| 17 | 714-13-12440 | GEAR, 40 TEETH,3RD | 53001- | |
| 18 | 714-13-12430 | GEAR, 21 TEETH,1ST | 53001- | |
| 19 | 714-13-12510 | GEAR, 28 TEETH | 53001- | |
| 20 | 714-13-19340 | BEARING,BALL | 53001- | |
| 21 | 06040-06211 | BEARING | 53001- | |
| 22 | 419-15-12122 | RING,SEAL | 53001- |
