| Item | Part No. | Part Name | Qty | Serial No. |
| 714-07-30004 | TRANSMISSION ASS'Y | 85366-90000 | ||
| 714-07-30001 | TRANSMISSION ASS'Y | 85165-85365 | ||
| 714-07-30000 | TRANSMISSION ASS'Y | 85001-85164 | ||
| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-64A0. | ||||
| 714-07-30014 | TRANSMISSION ASS'Y | 85366-90000 | ||
| 714-07-30011 | TRANSMISSION ASS'Y | 85165-85365 | ||
| 714-07-30010 | TRANSMISSION ASS'Y | 85001-85164 | ||
| THESE ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0, 52A1, 53A0 TO 61A0, 58A1, 59A1, 62A1 TO 64A1. | ||||
| 714-07-30024 | TRANSMISSION ASS'Y | 85366-90000 | ||
| 714-07-30021 | TRANSMISSION ASS'Y | 85165-85365 | ||
| 714-07-30020 | TRANSMISSION ASS'Y | 85001-85164 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A2 TO F4350-64A0. | ||||
| 714-07-30034 | TRANSMISSION ASS'Y | 85366-90000 | ||
| 714-07-30031 | TRANSMISSION ASS'Y | 85165-85365 | ||
| 714-07-30030 | TRANSMISSION ASS'Y | 85001-85164 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A2 TO F4350-64A1. | ||||

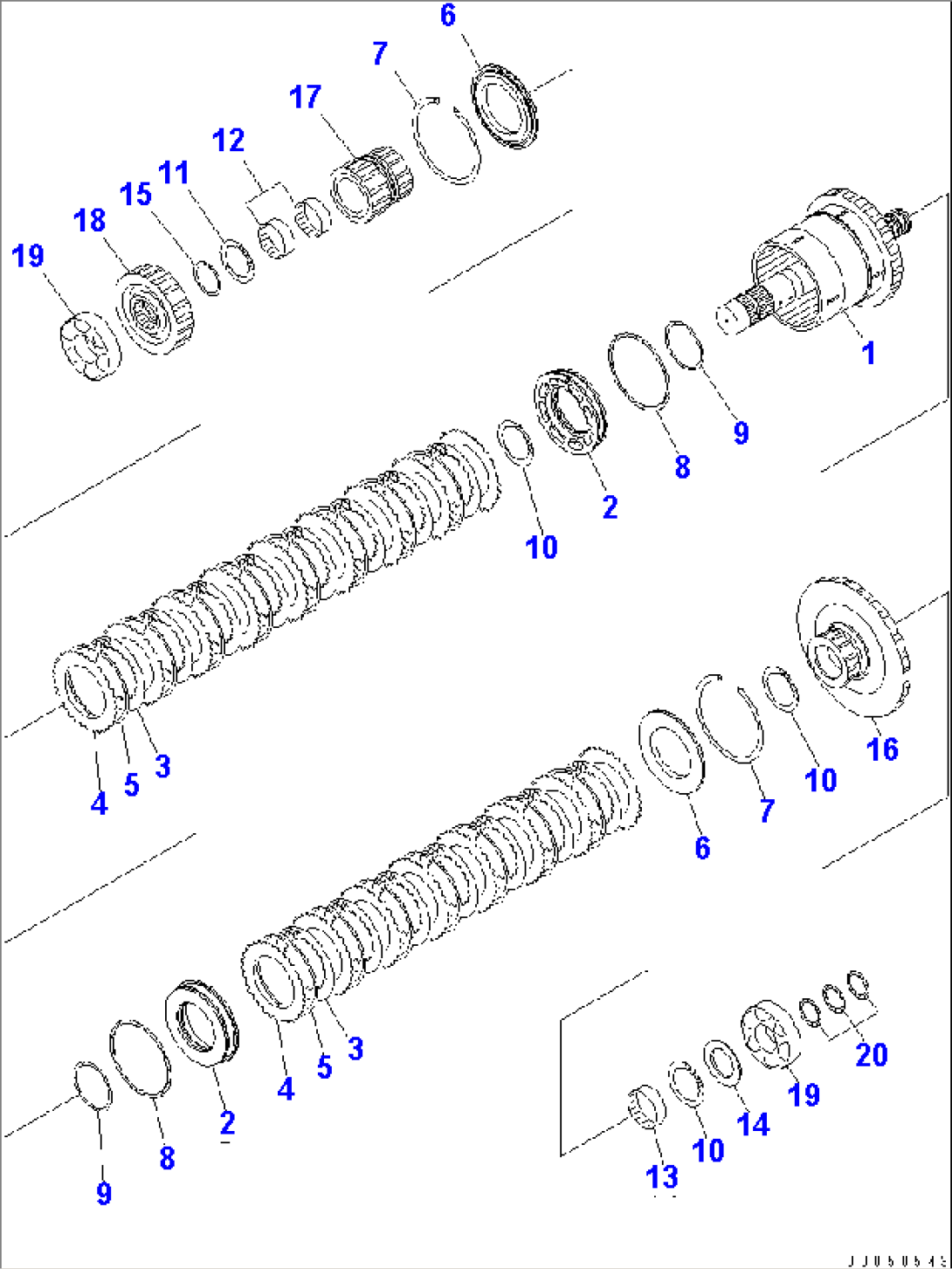

| 714-07-32022 | CLUTCH | 85001-90000 | ||
| 1 | 714-07-32122 | SHAFT AND CYLINDER A,1ST AND 4TH | 85001-90000 | |
| 1 | \6\ | SHAFT,UPPER | 85001-90000 | |
| 1 | \6\ | ORIFICE | 85001-90000 | |
| 1 | \6\ | SCREW | 85001-90000 | |
| 1 | \6\ | HOUSING | 85001-90000 | |
| 2 | 714-07-22661 | PISTON,RANGE | 85001-90000 | |
| 3 | 714-12-19711 | DISC | 85001-90000 | |
| 4 | 714-16-19730 | PLATE,SEPARATE | 85001-90000 | |
| 5 | 56D-15-12710 | SPRING,WAVE | 85001-90000 | |
| 6 | 714-12-12610 | PLATE,END | 85001-90000 | |
| 7 | 419-15-12140 | RING,SNAP | 85001-90000 | |
| 8 | 714-16-19220 | RING,SEAL (K1) | 85001-90000 | |
| 9 | 714-07-19320 | RING,SEAL (K1) | 85001-90000 | |
| 10 | 714-08-19570 | WASHER,THRUST | 85001-90000 | |
| 11 | 714-08-19560 | WASHER,THRUST | 85001-90000 | |
| 12 | 714-23-19410 | BEARING | 85001-90000 | |
| 13 | 714-23-19430 | BEARING | 85001-90000 | |
| 14 | 714-11-12720 | SPACER | 85001-90000 | |
| 15 | 714-07-22550 | SNAP RING,SNAP (K1) | 85001-90000 | |
| 16 | 714-07-22442 | GEAR, 64 TEETH,4TH | 85001-90000 | |
| 17 | 714-07-32432 | GEAR, 23 TEETH,1ST | 85001-90000 | |
| 18 | 714-07-22512 | GEAR, 36 TEETH,2ND | 85001-90000 | |
| 19 | 714-12-19340 | BEARING,ROLLER | 85001-90000 | |
| 20 | 419-15-12122 | RING,SEAL (K1) | 85001-90000 |
