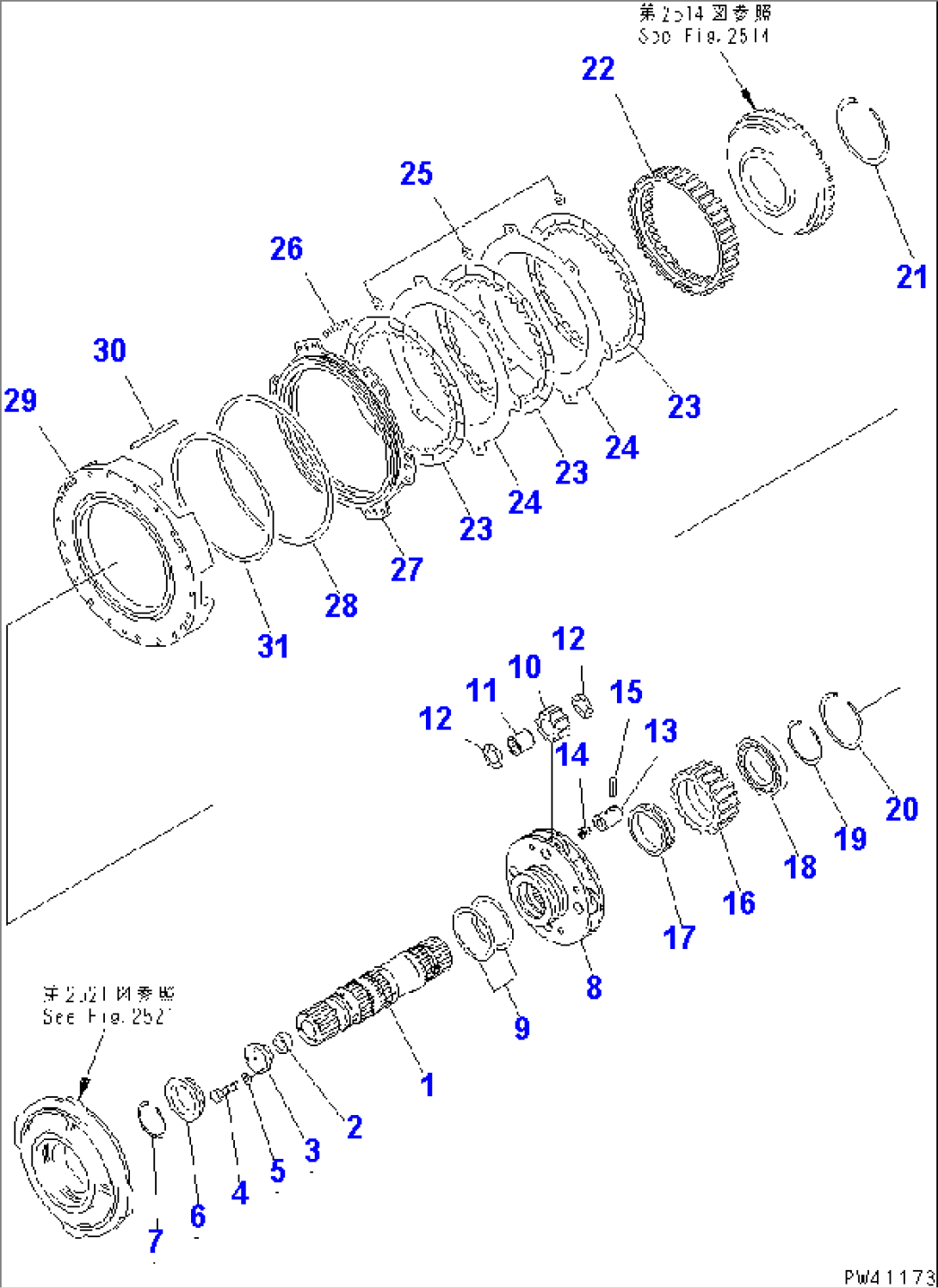

| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (426-15-00011) | TRANSMISSION ASS'Y | (3001)- | ||
| (426-15-00020) | TRANSMISSION ASS'Y | (1973)-(3000) | ||
| (426-15-00010) | TRANSMISSION ASS'Y | 10001-(1972) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2534. | ||||
| 1 | 426-15-12121 | SHAFT | 10001- | |
| 2 | 426-15-12920 | BUSHING | 10001- | |
| 3 | 426-15-11560 | COVER | 10001- | |
| 4 | 01010-50820 | BOLT | 10001- | |
| 5 | 01602-20825 | WASHER,SPRING | 10001- | |
| 6 | 426-15-11550 | COLLAR | 10001- | |
| 7 | 04064-08530 | RING,SNAP | 10001- | |
| 8 | 426-15-12340 | CARRIER | 10001- | |
| 9 | 07018-11405 | RING,SEAL | 10001- | |
| 10 | 426-15-12430 | GEAR | 10001- | |
| 11 | 426-15-12960 | BEARING | 10001- | |
| 12 | 426-15-19440 | WASHER | 10001- | |
| 426-15-00160 | SHAFT ASS'Y | 10001- | ||
| 13 | \6\ | SHAFT | 10001- | |
| 14 | 145-14-11320 | PLUG | 10001- | |
| 15 | 04025-00624 | PIN,SPRING | (1898)- | |
| 15 | \0\04025-00620 | PIN,SPRING | 10001-(1897) | |
| 16 | 426-15-12250 | GEAR | 10001- | |
| 17 | 426-15-12860 | BUSHING | 10001- | |
| 18 | 06000-06920 | BEARING | 10001- | |
| 19 | 04064-01030 | RING,SNAP | 10001- | |
| 20 | 04077-00140 | RING,SNAP | 10001- | |
| 21 | 04070-00160 | RING,SNAP | 10001- | |
| 22 | 426-15-12611 | GEAR,RING | (1274)- | |
| 22 | \0\426-15-12610 | GEAR,RING | 10001-(1273) | |
| 23 | 198-15-22810 | DISC | 10001- | |
| 24 | 426-15-12720 | PLATE | 10001- | |
| 25 | 175-15-42880 | SPRING | (1973)- | |
| 25 | \0\425-15-12880 | SPRING | 10001-(1972) | |
| 26 | 234-15-15230 | SPRING, (L= 52.0) | 10001- | |
| 27 | 426-15-12750 | PISTON | 10001- | |
| 28 | 426-15-19220 | RING,SEAL (K2) | 10001- | |
| 29 | 426-15-11130 | HOUSING | 10001- | |
| 30 | 155-15-12770 | PIN | 10001- | |
| 31 | 426-15-19210 | RING,SEAL (K2) | 10001- |
