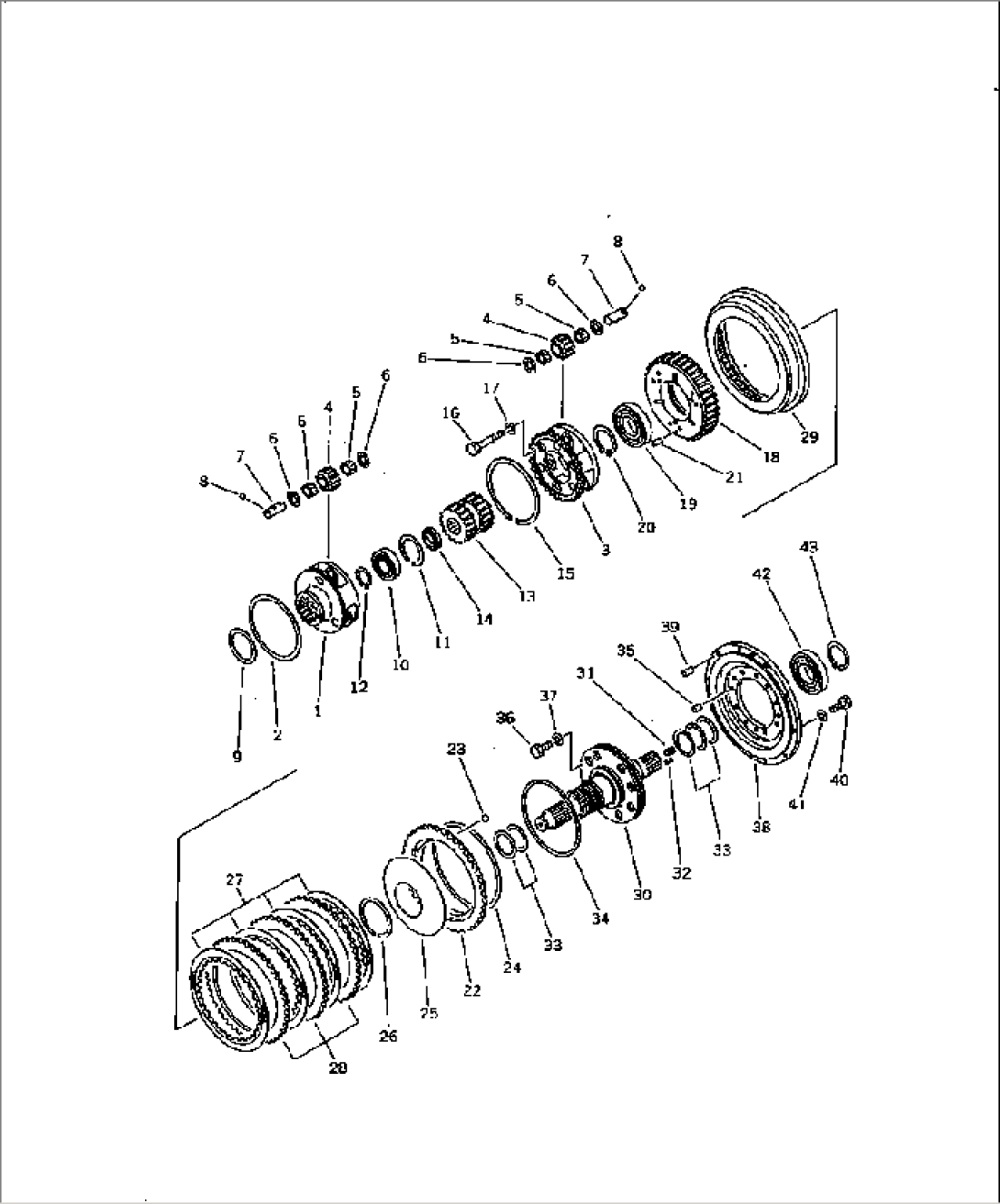

| Item | Part No. | Part Name | Qty | Serial No. |
| (134-15-00310) | TRANSMISSION ASS'Y | 81059- | ||
| (134-15-00203) | TRANSMISSION ASS'Y | 80588-81058 | ||
| THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS. | ||||
| 1 | 135-15-22351 | CARRIER | 80588- | |
| 2 | 07018-12105 | RING | 81344- | |
| 2 | 135-15-39210 | RING | 80588-81343 | |
| 3 | 135-15-32360 | CARRIER | 80588- | |
| 4 | 135-15-22461 | GEAR | 80588- | |
| 5 | 09232-02519 | BEARING | 80588- | |
| 6 | 09233-12620 | WASHER,THRUST | 81045- | |
| 6 | \0\09233-02620 | WASHER,THRUST | 80588-81044 | |
| 7 | 135-15-22532 | SHAFT | 80588- | |
| 8 | 04260-00635 | BALL | 80588- | |
| 9 | 135-15-22391 | SPACER | 80588- | |
| 10 | 06002-00308 | BEARING | 80588- | |
| 11 | 130-09-15610 | RING,SNAP | 80588- | |
| 12 | 04064-04018 | RING,SNAP | 80588- | |
| 13 | 135-15-22131 | GEAR | 80588- | |
| 14 | 135-15-22240 | SPACER | 80588- | |
| 15 | 135-15-32670 | RING,SNAP | 80588- | |
| 16 | 01010-51280 | BOLT | 80588- | |
| 17 | 01602-21236 | WASHER,SPRING | 80588- | |
| 18 | 134-15-12370 | GEAR | 80588- | |
| 19 | 06000-06017 | BEARING | 80588- | |
| 20 | 04064-08530 | RING,SNAP | 80588- | |
| 21 | 04020-01228 | PIN,DOWEL | 80588- | |
| 22 | 134-15-12760 | PISTON | 80588- | |
| 23 | 04260-00952 | BALL | 80588- | |
| 24 | 134-15-12870 | RING,SEAL | 80588- | |
| 25 | 175-15-42180 | SPRING | 80588- | |
| 26 | 04070-00130 | RING,SNAP | 80588- | |
| 27 | 424-15-12711 | DISC | 81505- | |
| 27 | \0\424-15-12710 | DISC | 81018-81504 | |
| 27 | \0\135-15-22712 | DISC | 80588-81017 | |
| 28 | 135-15-22730 | PLATE | 80588- | |
| 29 | 134-15-32420 | DRUM | 81059- | |
| 29 | 135-15-22420 | DRUM | 80588-81058 | |
| 135-15-00130 | SHAFT ASS'Y | 80588- | ||
| 30 | \6\ | SHAFT | 80588- | |
| 31 | 07043-70312 | PLUG | 80588- | |
| 32 | 07043-70108 | PLUG | 80588- | |
| 33 | 134-15-39260 | RING,SEAL | 81059- | |
| 33 | 07018-20854 | RING,SEAL | 80588-81058 | |
| 34 | 154-15-22831 | RING | 80588- | |
| 35 | 04020-01228 | PIN,DOWEL | 80588- | |
| 36 | 01010-51230 | BOLT | 80588- | |
| 37 | 01602-21236 | WASHER,SPRING | 80588- | |
| 38 | 134-15-32410 | HOUSING | 81059- | |
| 38 | 134-15-12410 | HOUSING | 80588-81058 | |
| 39 | 04020-01228 | PIN,DOWEL | 80588- | |
| 40 | 01010-51235 | BOLT | 81059- | |
| 40 | 01010-51235 | BOLT | 80588-81058 | |
| 41 | 01602-21236 | WASHER,SPRING | 81059- | |
| 41 | 01602-21236 | WASHER,SPRING | 80588-81058 | |
| 42 | 06000-06214 | BEARING | 80588- | |
| 43 | 04064-07025 | RING,SNAP | 80588- |
