| Item | Part No. | Part Name | Qty | Serial No. |
| (14X-15-00011) | TRANSMISSION ASS'Y | 3023- | ||
| (14X-15-00010) | TRANSMISSION ASS'Y | 3001-3022 | ||

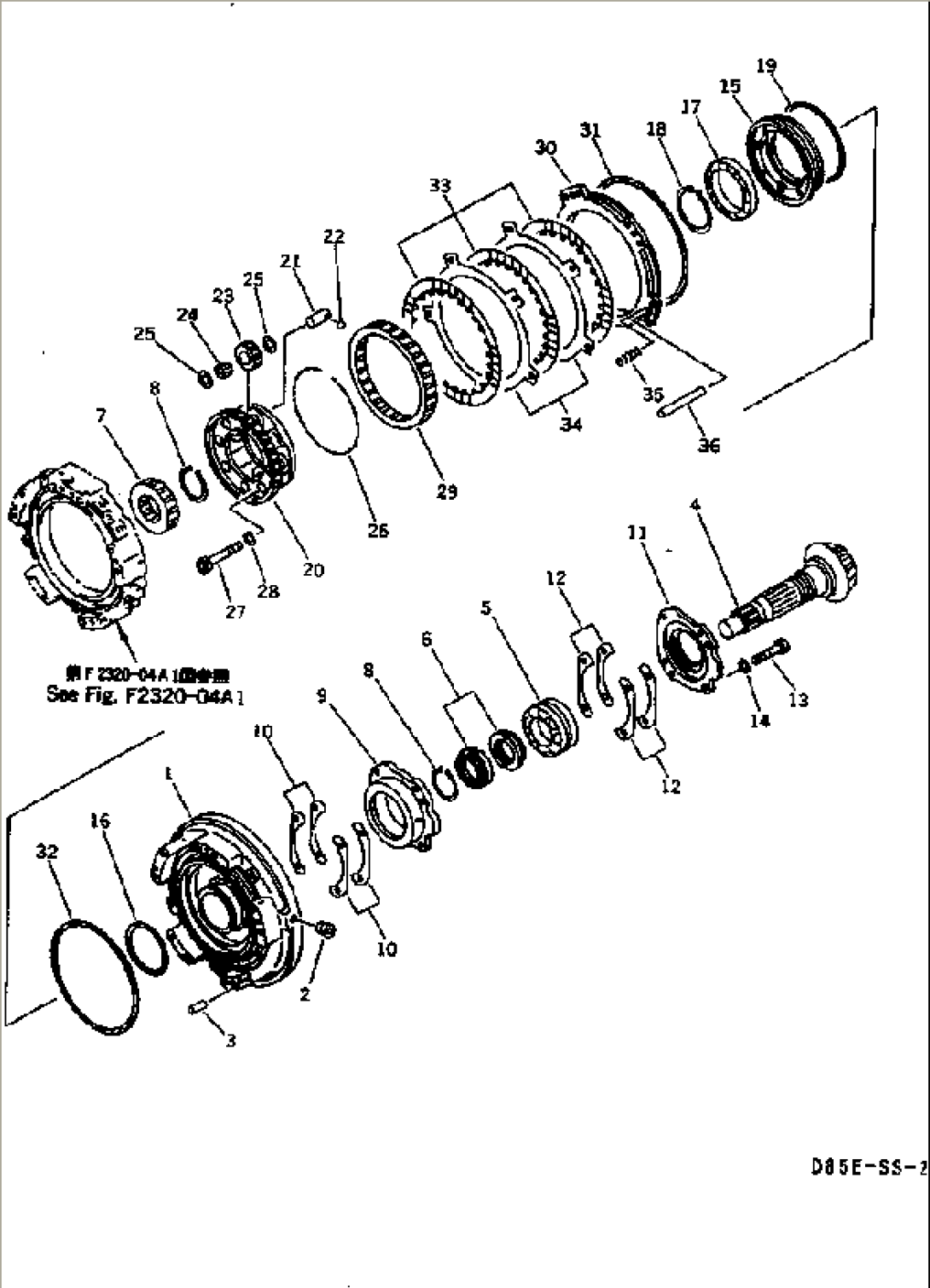

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-01A1 TO F2320-10A1. | ||||
| 14X-15-00230 | HOUSING ASS'Y | 3001- | ||
| 1 | \6\ | HOUSING | 3001- | |
| 2 | 07043-70415 | PLUG | 3001- | |
| 3 | 04020-01228 | PIN | 3001- | |
| 14X-15-00160 | SHAFT ASS'Y | 3001- | ||
| 4 | \6\ | SHAFT | 3001- | |
| 4 | \6\ | GEAR,BEVEL | 3001- | |
| 5 | 144-15-22810 | BEARING | 3001- | |
| 6 | 14X-15-13251 | NUT | 3001- | |
| 7 | 14X-15-12250 | GEAR | 3001- | |
| 8 | 04064-07025 | RING,SNAP | 3001- | |
| 9 | 14X-15-13140 | CAGE | 3001- | |
| 10 | 14X-15-05010 | SHIM KIT (K3) | 3001- | |
| 10 | \6\ | SHIM, 0.3MM (K3) | 3001- | |
| 10 | \6\ | SHIM, 1.0MM (K3) | 3001- | |
| 10 | \6\ | SHIM, 0.2MM (K3) | 3001- | |
| 11 | 14X-15-13130 | COVER | 3001- | |
| 12 | 14X-15-05020 | SHIM KIT (K3) | 3001- | |
| 12 | \6\ | SHIM, 0.3MM (K3) | 3001- | |
| 12 | \6\ | SHIM, 0.2MM (K3) | 3001- | |
| 13 | 01010-51450 | BOLT | 3001- | |
| 14 | 01643-31445 | WASHER | 3001- | |
| 15 | 14X-15-12370 | COVER | 3001- | |
| 16 | 07018-11355 | RING,SEAL | 3001- | |
| 17 | 06000-06924 | BEARING | 3001- | |
| 18 | 04070-00120 | RING,SNAP | 3001- | |
| 19 | 07018-12105 | RING,SEAL | 3001- | |
| 20 | 14X-15-12350 | CARRIER | 3001- | |
| 21 | 14X-15-12510 | SHAFT | 3001- | |
| 22 | 04260-00635 | BALL | 3001- | |
| 23 | 421-15-12450 | GEAR | 3001- | |
| 24 | 421-15-19411 | BEARING | 3001- | |
| 25 | 235-15-12590 | WASHER,THRUST | 3001- | |
| 26 | 14X-15-19520 | RING,SNAP | 3001- | |
| 27 | 01252-41060 | BOLT | 3001- | |
| 28 | 01643-51032 | WASHER | 3001- | |
| 29 | 14X-15-12680 | GEAR,RING | 3001- | |
| 30 | 14X-15-12760 | PISTON | 3001- | |
| 31 | 144-15-22881 | RING,SEAL (K3) | 3001- | |
| 32 | 232-15-19220 | RING,SEAL (K3) | 3001- | |
| 33 | 424-15-12711 | DISC | 3001- | |
| 34 | 424-15-12720 | PLATE | 3001- | |
| 35 | 103-15-22911 | SPRING | 3001- | |
| 36 | 155-15-12770 | PIN | 3001- |
