| Item | Part No. | Part Name | Qty | Serial No. |
| (569-14-40001) | TORQFLOW ASS'Y | 1102- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.220 TO 266. | ||||
| (569-15-00201) | TRANSMISSION ASS'Y | 1118- | ||
| (\0\569-15-00200) | TRANSMISSION ASS'Y | 1102-1117 | ||

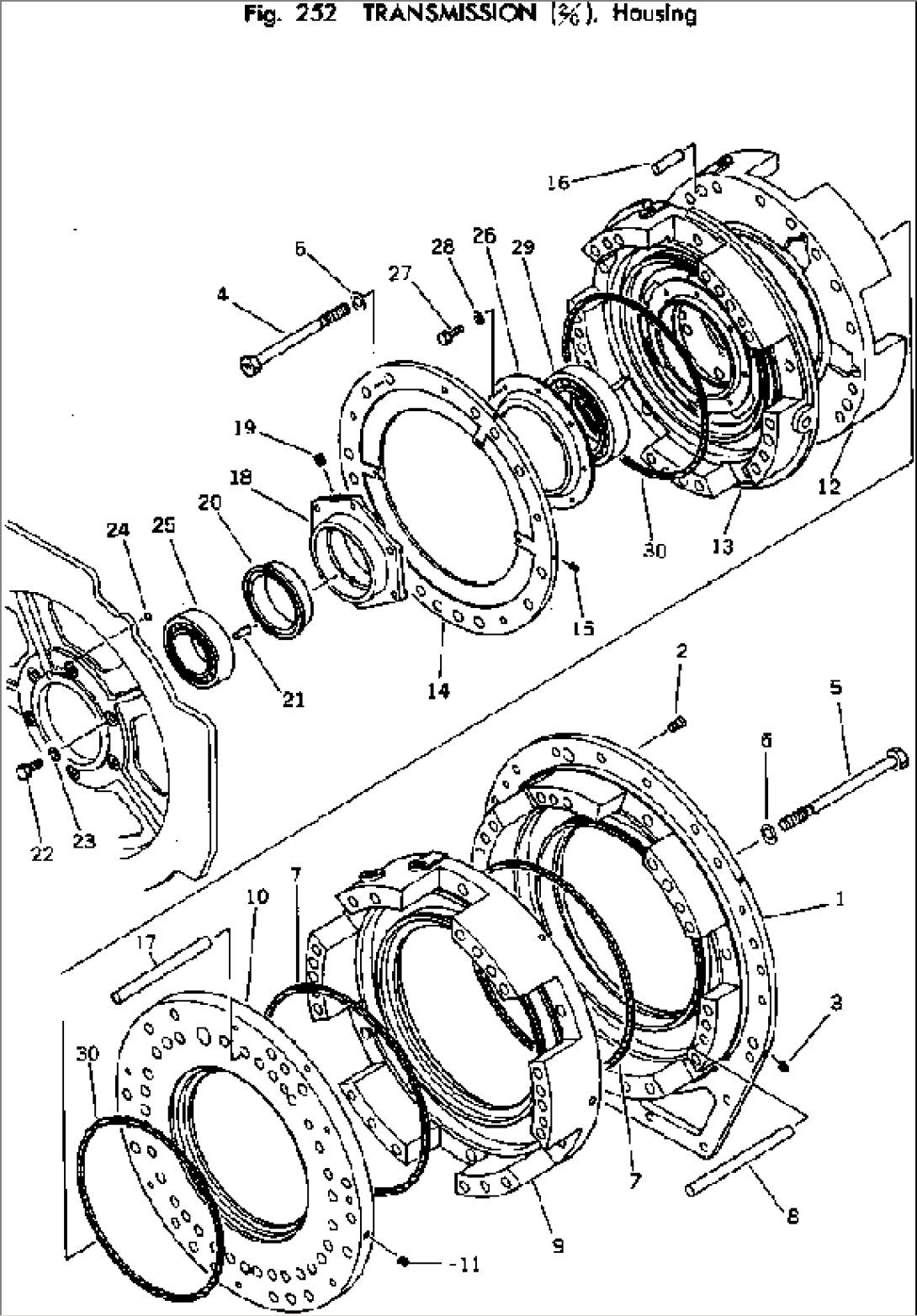

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.251 TO 266. | ||||
| 568-15-00221 | HOUSING ASS'Y | 1102- | ||
| 1 | \6\ | HOUSING | 1102- | |
| 2 | 07043-00415 | PLUG | 1102- | |
| 3 | 07043-00108 | PLUG | 1102- | |
| 4 | 568-15-11341 | BOLT | 1102- | |
| 5 | 568-15-11350 | BOLT | 1102- | |
| 6 | 566-15-11250 | WASHER | 1102- | |
| 7 | 568-15-12830 | RING (KIT) | 1102- | |
| 8 | 568-15-11370 | PIN | 1102- | |
| 9 | 561-15-11160 | HOUSING | 1102- | |
| 561-15-00020 | PLATE ASS'Y | 1102- | ||
| 10 | \6\ | PLATE | 1102- | |
| 11 | 568-15-11380 | PLUG | 1102- | |
| 12 | 568-15-11170 | HOUSING | 1102- | |
| 13 | 568-15-11180 | HOUSING | 1102- | |
| 568-15-00260 | PLATE ASS'Y | 1102- | ||
| 14 | \6\ | PLATE | 1102- | |
| 15 | 145-14-11320 | PLUG | 1102- | |
| 16 | 566-15-11260 | PIN | 1102- | |
| 17 | 568-15-11360 | PIN | 1102- | |
| 561-15-00030 | CAGE ASS'Y | 1102- | ||
| 18 | \6\ | CAGE | 1102- | |
| 19 | 07043-00211 | PLUG | 1102- | |
| 20 | 568-15-11470 | BUSHING | 1102- | |
| 21 | 04020-00514 | PIN | 1102- | |
| 22 | 01010-51030 | BOLT | 1102- | |
| 23 | 01602-21030 | WASHER | 1102- | |
| 24 | 07000-62014 | O-RING | 1102- | |
| 25 | 06000-06215 | BEARING | 1102- | |
| 26 | 568-15-11230 | COVER | 1102- | |
| 27 | 01010-50820 | BOLT | 1102- | |
| 28 | 01602-20825 | WASHER | 1102- | |
| 29 | 06000-06022 | BEARING | 1102- | |
| 30 | 568-15-12850 | RING,SEAL (KIT) | 1102- |
