| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (569-15-41003) | TRANSMISSION ASS'Y | (4002)- | ||
| (569-15-41002) | TRANSMISSION ASS'Y | 4626-(4001) | ||

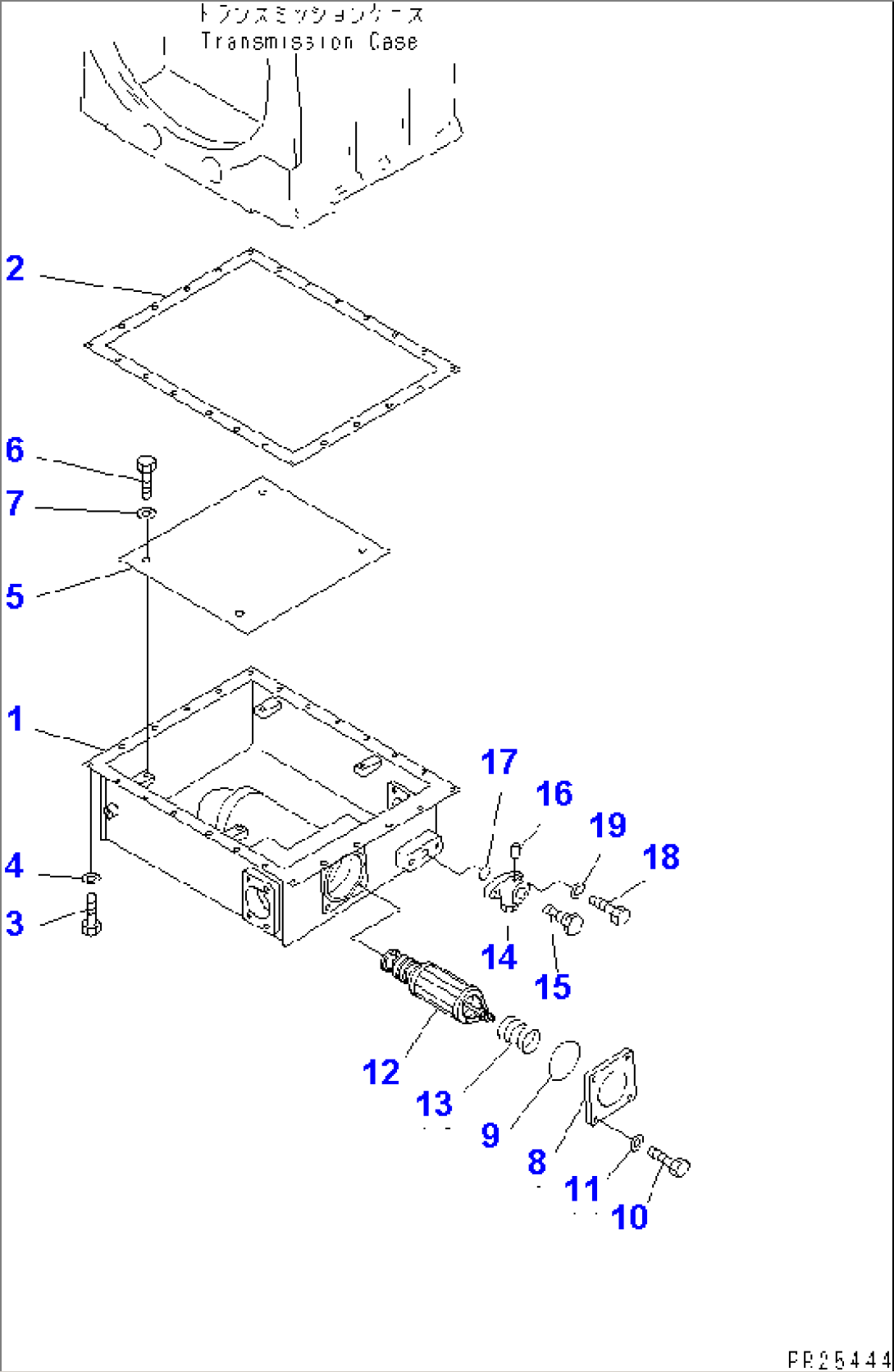

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2531. | ||||
| 1 | 569-15-41552 | TANK | 4626- | |
| 2 | 568-15-11431 | GASKET (K3) | (3180)- | |
| 3 | 01010-81030 | BOLT | 4001- | |
| 4 | 01643-31032 | WASHER | 4001- | |
| 5 | 569-15-41581 | BUFFLE | 4626- | |
| 6 | 01010-81020 | BOLT | 4626- | |
| 7 | 01643-31032 | WASHER | 4626- | |
| 8 | 14X-49-12340 | COVER | 4626- | |
| 9 | 07000-72105 | O-RING (K3) | 4626- | |
| 10 | 01010-81025 | BOLT | 4001- | |
| 11 | 01643-31032 | WASHER | 4001- | |
| 12 | 14X-49-12310 | MAGNET ASS'Y | 4626- | |
| 13 | 14X-49-12320 | SPRING | 4626- | |
| 6693-22-5600 | VALVE ASS'Y | 4001- | ||
| 14 | 6693-22-5610 | BODY | 4001- | |
| 15 | 6693-22-5620 | VALVE | 4001- | |
| 16 | 04020-00514 | PIN | 4001- | |
| 17 | 07000-73028 | O-RING (K3) | 4001- | |
| 18 | 01010-81025 | BOLT | 4001- | |
| 19 | 01643-31032 | WASHER | 4001- |
