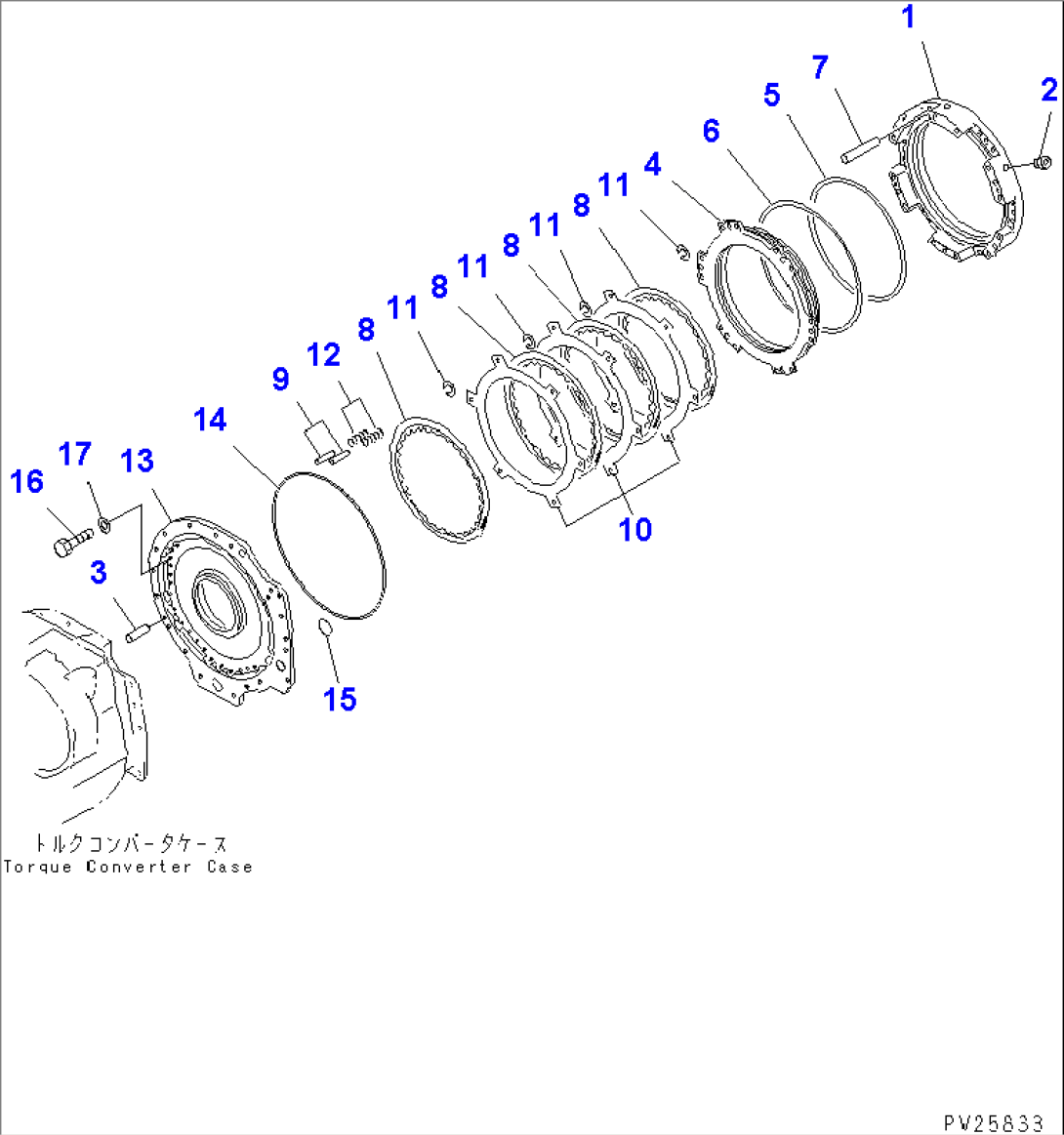

| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (561-15-51021) | TRANSMISSION ASS'Y | (1049)- | ||
| (561-15-00900) | TRANSMISSION ASS'Y | 1021-(1048) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F3320-51A0 TO F3320-64A0. | ||||
| 561-15-00580 | HOUSING ASS'Y | 1021- | ||
| 1 | \6\ | HOUSING | 1021- | |
| 2 | 198-15-26510 | PLUG | 1021- | |
| 3 | 04020-01434 | PIN | 1021- | |
| 4 | 561-15-52711 | PISTON | 1021- | |
| 5 | 175-15-59250 | RING,SEAL (K2) | (1029)- | |
| 561-15-59240 | RING,SEAL (K2) | 1021-(1029) | ||
| 6 | 562-15-19241 | RING,SEAL (K2) | (1029)- | |
| 561-15-59260 | RING,SEAL (K2) | 1021-(1029) | ||
| 7 | 234-15-12761 | PIN | 1021- | |
| 8 | 561-15-52721 | DISC | 1021- | |
| 9 | 561-15-41250 | PIN | 1021- | |
| 10 | 561-15-52941 | PLATE | 1021- | |
| 11 | 175-15-42880 | SPRING | 1021- | |
| 12 | 234-15-15230 | SPRING¤ (L= 52.0) | 1021- | |
| 13 | 561-15-51183 | HOUSING | 1021- | |
| 14 | 195-21-12380 | O-RING (K2) | 1021- | |
| 15 | 07000-12055 | O-RING (K2) | 1021- | |
| 16 | 01010-61440 | BOLT | 1021- | |
| 17 | 01643-31445 | WASHER | 1021- |
