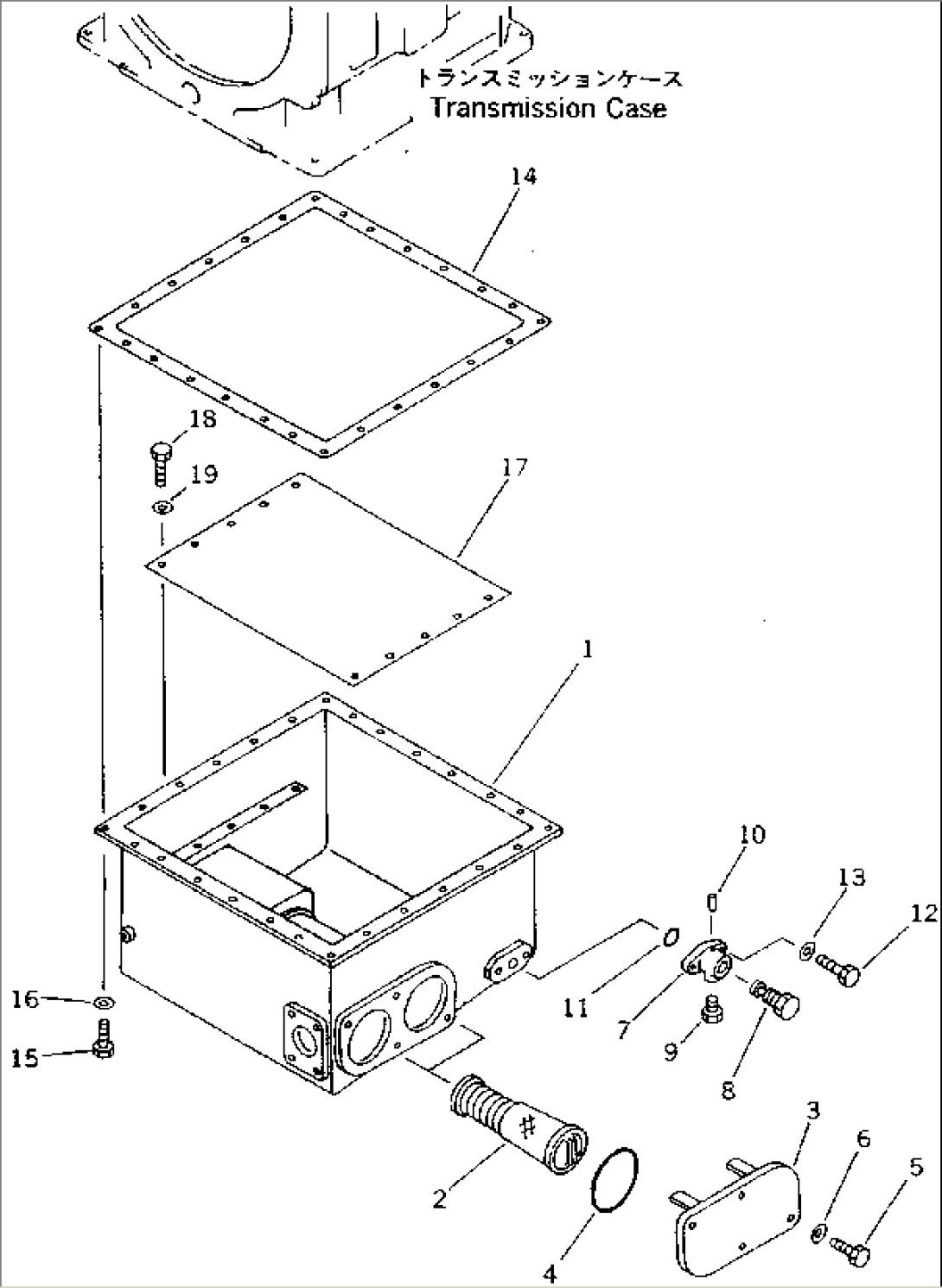

| Item | Part No. | Part Name | Qty | Serial No. |
| (561-15-00900) | TRANSMISSION ASS'Y | 1001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2531. | ||||
| 1 | 561-15-51553 | TANK,OIL | 1001- | |
| 2 | 562-15-11570 | MAGNET ASS'Y | 1001- | |
| 3 | 569-15-41560 | COVER | 1001- | |
| 4 | 07000-02120 | O-RING (K2) | 1001- | |
| 5 | 01010-51025 | BOLT | 1001- | |
| 6 | 01643-31032 | WASHER | 1001- | |
| 6693-22-5600 | VALVE ASS'Y | 1001- | ||
| 7 | \6\ | BODY,VALVE | 1001- | |
| 8 | \6\ | VALVE | 1001- | |
| 9 | 07040-12412 | PLUG | 1001- | |
| 10 | 04020-00514 | PIN,DOWEL | 1001- | |
| 11 | 07000-73028 | O-RING (K2) | 1001- | |
| 12 | 01010-51025 | BOLT | 1001- | |
| 13 | 01643-31032 | WASHER | 1001- | |
| 14 | 561-15-51431 | GASKET (K2) | 1001- | |
| 15 | 01010-51030 | BOLT | 1001- | |
| 16 | 01643-31032 | WASHER | 1001- | |
| 17 | 561-15-51581 | PLATE | 1001- | |
| 18 | 01010-51020 | BOLT | 1001- | |
| 19 | 01643-31032 | WASHER | 1001- |
