| Item | Part No. | Part Name | Qty | Serial No. |

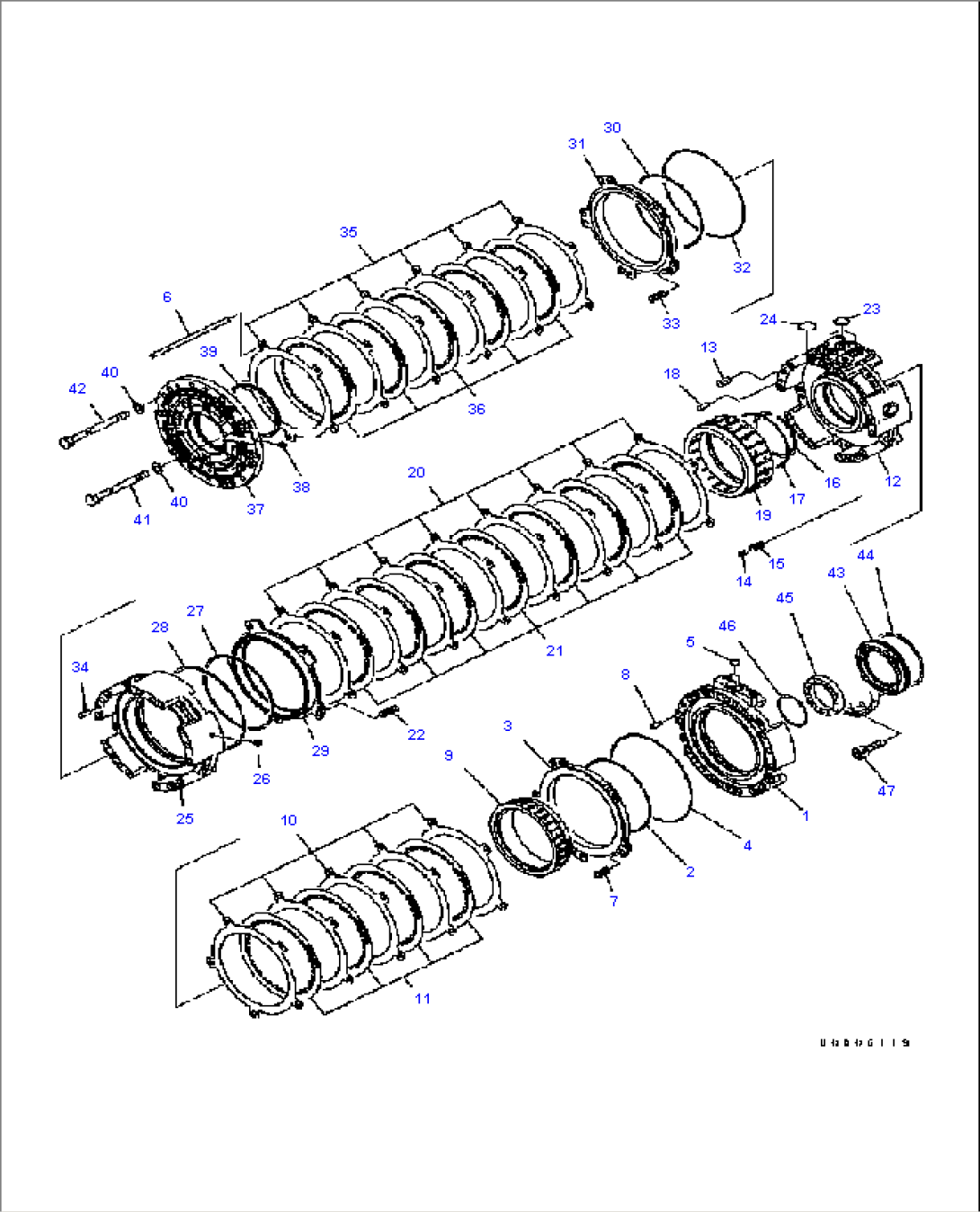

| (134-15-71000) | TRANSMISSION ASSEMBLY | B40001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-62A0. | ||||
| 1 | 14X-15-21150 | HOUSING | B40001- | |
| 2 | 124-15-41910 | RING (K2) | B40001- | |
| 3 | 14X-15-22750 | PISTON | B40001- | |
| 4 | 569-15-12860 | RING | B40001- | |
| 5 | 07000-72020 | O-RING (K2) | B40001- | |
| 6 | 238-15-11290 | PIN | B40001- | |
| 7 | 145-14-12790 | SPRING, (L= 59.0) | B40001- | |
| 8 | 04020-01228 | PIN | B40001- | |
| 9 | 14X-15-22640 | RING GEAR | B40001- | |
| 10 | 14X-15-22780 | PLATE | B40001- | |
| 11 | 14X-15-22710 | DISC | B40001- | |
| 12 | 14X-15-21160 | HOUSING | B40001- | |
| 13 | 569-15-41310 | SLEEVE | B40001- | |
| 14 | 287-15-15360 | PISTON | B40001- | |
| 15 | 700-80-51390 | SPRING | B40001- | |
| 16 | 04071-00145 | RING | B40001- | |
| 17 | 14X-15-29220 | SEAL RING (K2) | B40001- | |
| 18 | 04020-01228 | PIN | B40001- | |
| 19 | 14X-15-22661 | RING GEAR | B40001- | |
| 20 | 14X-15-22780 | PLATE | B40001- | |
| 21 | 14X-15-22710 | DISC | B40001- | |
| 22 | 145-14-12780 | SPRING | B40001- | |
| 23 | 07000-73030 | O-RING (K2) | B40001- | |
| 24 | 07000-73035 | O-RING (K2) | B40001- | |
| 25 | 14X-15-21170 | HOUSING | B40001- | |
| 26 | 145-14-11320 | PLUG | B40001- | |
| 27 | 103-15-12820 | RING (K2) | B40001- | |
| 28 | 124-15-41920 | RING (K2) | B40001- | |
| 29 | 14X-15-22740 | PISTON | B40001- | |
| 30 | 124-15-41910 | RING (K2) | B40001- | |
| 31 | 14X-15-22770 | PISTON | B40001- | |
| 32 | 113-15-12870 | RING(K2) | B40001- | |
| 33 | 14X-15-12910 | SPRING | B40001- | |
| 34 | 04020-01228 | PIN | B40001- | |
| 35 | 14X-15-22780 | PLATE | B40001- | |
| 36 | 14X-15-22710 | DISC | B40001- | |
| 37 | 14X-15-21180 | HOUSING | B40001- | |
| 38 | 175-15-11230 | PLUG | B40001- | |
| 39 | 14X-15-29230 | SEAL RING (K2) | B40001- | |
| 40 | 145-14-11571 | WASHER | B40001- | |
| 41 | 144-15-21191 | BOLT | B40001- | |
| 42 | 155-15-11191 | BOLT | B40001- | |
| 43 | 14X-15-22371 | COVER | B40561- | |
| 43 | 14X-15-22370 | COVER | B40001-B40560 | |
| 44 | 14X-15-29230 | SEAL RING (K2) | B40001- | |
| 45 | 06000-06917 | BEARING | B40001- | |
| 46 | 04064-08530 | RING | B40001- | |
| 47 | 01252-70860 | BOLT | B40001- |
