| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (428-15-21001) | TRANSMISSION ASS'Y | 51001- | ||
| (428-15-21000) | TRANSMISSION ASS'Y | 50001-51000 | ||

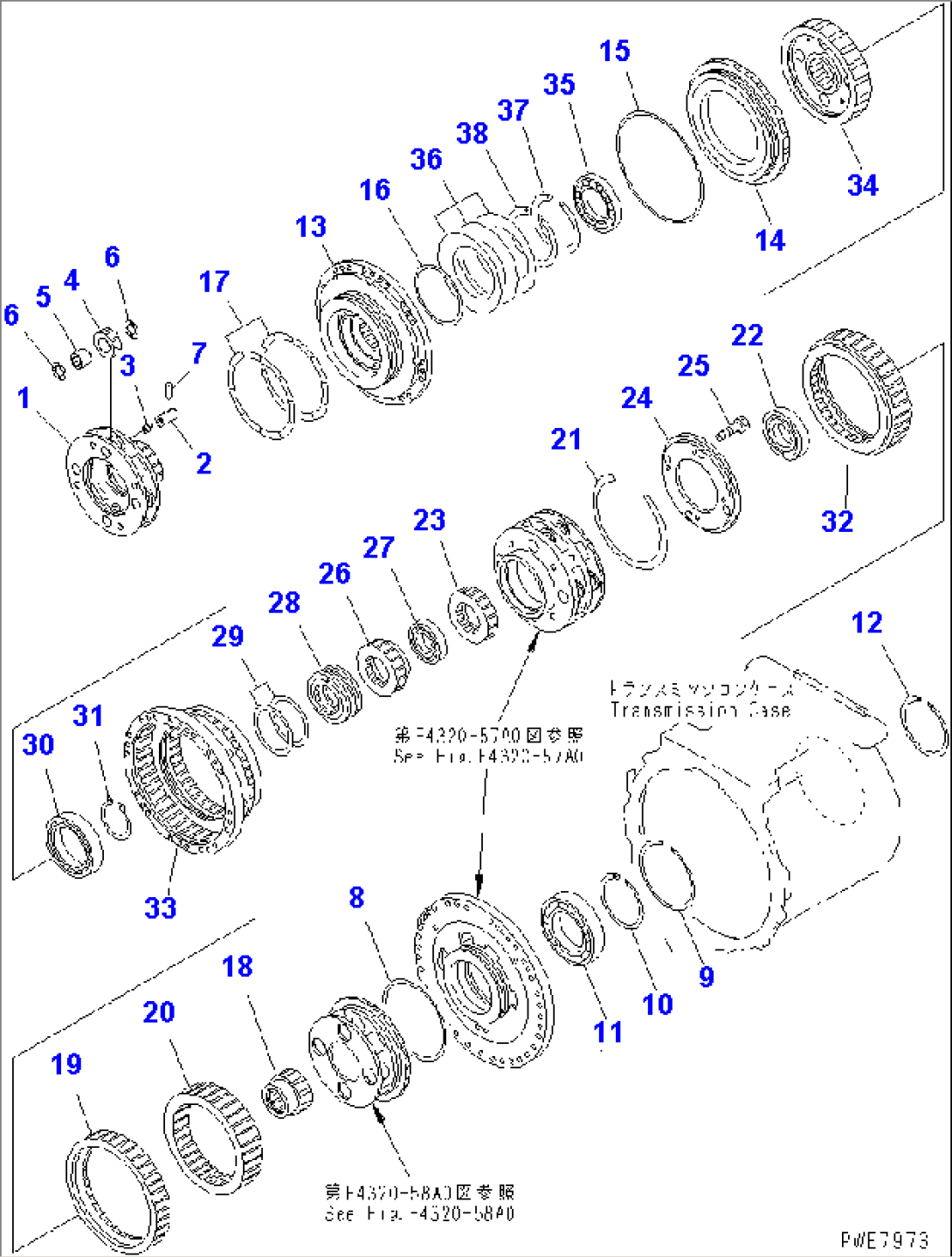

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-68A0. | ||||
| 1 | 426-15-12330 | CARRIER | 50001- | |
| 426-15-00150 | SHAFT ASS'Y | 50001- | ||
| 2 | \6\ | SHAFT | 50001- | |
| 3 | 07043-70108 | PLUG | 50001- | |
| 4 | 426-15-32430 | GEAR | (10065)- | |
| 4 | 426-15-12430 | GEAR | 50001-(10064) | |
| 5 | 426-15-12962 | BEARING | 50049- | |
| 5 | 426-15-12961 | BEARING | 50001-50048 | |
| 6 | 09233-13220 | WASHER | 50001- | |
| 7 | 04025-00624 | PIN | 50001- | |
| 8 | 428-15-19261 | RING,SEAL | 50001- | |
| 9 | 04071-00220 | RING | 50001- | |
| 10 | 04070-00160 | RING | 50001- | |
| 11 | 06000-06932 | BEARING | 50001- | |
| 12 | 04071-00130 | RING | 50001- | |
| 13 | 428-15-11211 | HOUSING | 50001- | |
| 14 | 428-15-12781 | PISTON | 50001- | |
| 15 | 562-15-19220 | RING,SEAL (K3) | 50001- | |
| 16 | 103-15-12811 | RING,SEAL (K3) | 50001- | |
| 17 | 426-15-19270 | RING,SEAL | 50001- | |
| 18 | 712-74-Z2210 | GEAR | 50001- | |
| 19 | 428-15-12660 | GEAR,RING | 50001- | |
| 20 | 428-15-12650 | GEAR,RING | 50001- | |
| 21 | 154-15-12670 | RING,SNAP | 50001- | |
| 22 | 06000-06918 | BEARING | 50001- | |
| 23 | 41E-15-12221 | GEAR | 50001- | |
| 24 | 41E-15-12890 | COVER | 50001- | |
| 25 | 01010-81245 | BOLT | 50001- | |
| 26 | 426-15-12230 | GEAR | 50001- | |
| 27 | 06000-06014 | BEARING | 50001- | |
| 28 | 428-15-12850 | COLLAR | 50001- | |
| 29 | 07018-11455 | RING,SEAL | 50001- | |
| 30 | 06000-06924 | BEARING | 50001- | |
| 31 | 04064-09530 | RING | 50001- | |
| 32 | 428-15-12640 | GEAR,RING | 50001- | |
| 33 | 428-15-12630 | GEAR,RING | 50001- | |
| 34 | 428-15-12270 | HUB | 50001- | |
| 35 | 06000-06919 | BEARING | 50001- | |
| 36 | 426-15-12911 | SPRING | 50001- | |
| 37 | 04070-00155 | RING | 50001- | |
| 38 | 41E-15-12940 | SPACER | 50001- |
