| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (19M-15-21055) | TRANSMISSION ASS'Y | 10112- | ||
| (\0\19M-15-21054) | TRANSMISSION ASS'Y | 10111-10111 | ||
| (19M-15-21052) | TRANSMISSION ASS'Y | 10110-10110 | ||
| (\2\19M-15-21051) | TRANSMISSION ASS'Y | (10110-10110) | ||
| (\0\19M-15-21050) | TRANSMISSION ASS'Y | 10101-10109 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-63A0. | ||||

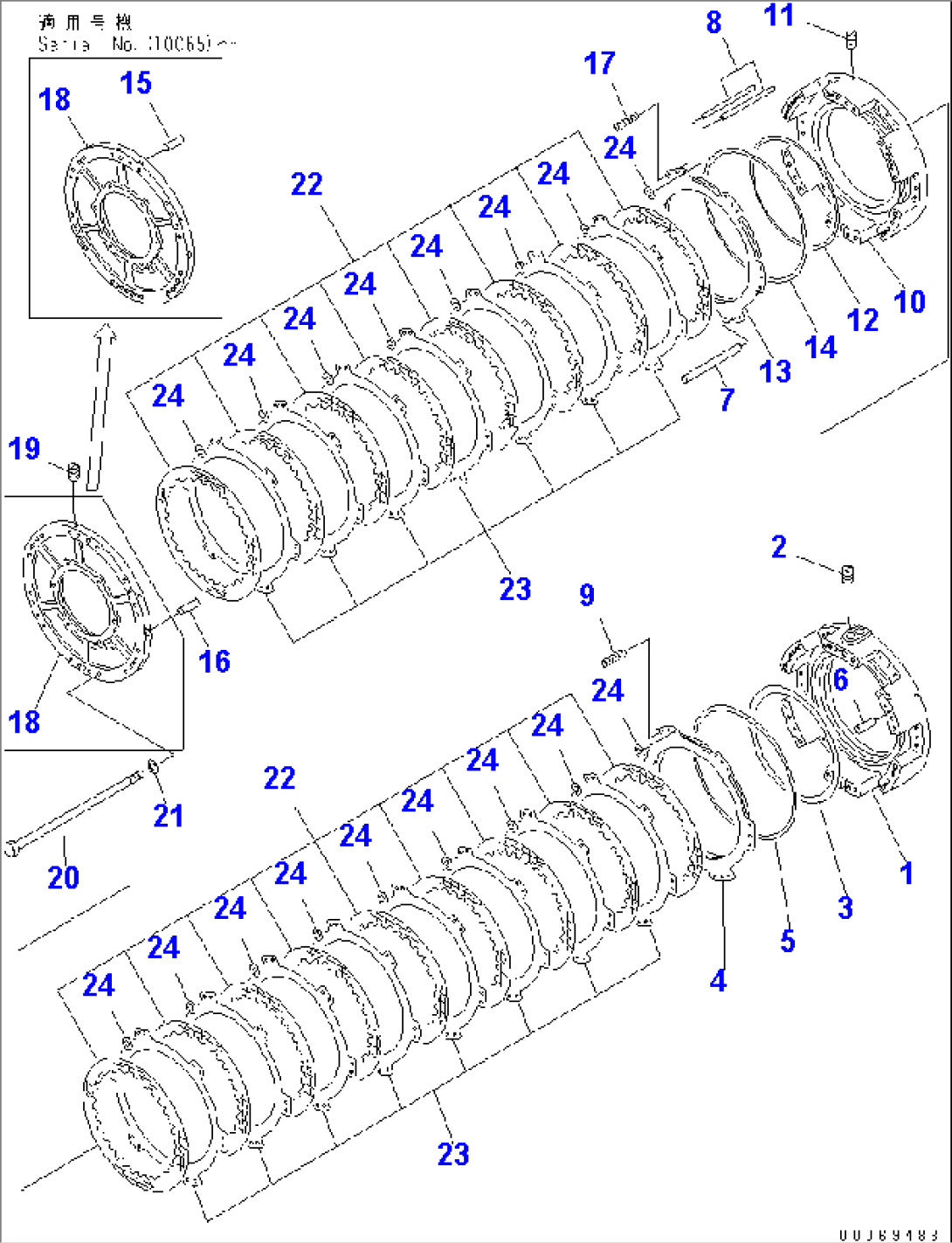

| 19M-15-00040 | HOUSING ASS'Y | 10101- | ||
| 1 | \6\ | HOUSING | 10101- | |
| 2 | 145-14-11320 | PLUG | 10101- | |
| 3 | 19M-15-19230 | RING,SEAL (K3) | 10101- | |
| 4 | 19M-15-12760 | PISTON | 10101- | |
| 5 | 19M-15-19240 | RING,SEAL (K3) | 10101- | |
| 6 | 04020-01842 | PIN,DOWEL | 10101- | |
| 7 | 19M-15-11270 | PIN | 10101- | |
| 8 | 19M-15-11291 | PIN | 10112- | |
| 8 | \0\19M-15-11290 | PIN | 10101-10111 | |
| 9 | 198-43-17680 | SPRING | 10101- | |
| 19M-15-00032 | HOUSING ASS'Y | 10112- | ||
| 19M-15-00031 | HOUSING ASS'Y | (10065)-0010111 | ||
| 19M-15-00030 | HOUSING ASS'Y | 10101-(10064) | ||
| 10 | \6\ | HOUSING | 10112- | |
| 10 | \6\ | HOUSING | (10065)-0010111 | |
| 10 | \6\ | HOUSING | 10101-(10064) | |
| 11 | 568-15-11380 | PLUG | 10101- | |
| 12 | 19M-15-19220 | RING,SEAL (K3) | 10101- | |
| 13 | 19M-15-12750 | PISTON | 10101- | |
| 14 | 19M-15-19250 | RING,SEAL (K3) | 10101- | |
| 15 | 04020-01842 | PIN | (10065)- | |
| 16 | 04020-01842 | PIN,DOWEL | 10101- | |
| 17 | 195-22-11151 | SPRING | 10101- | |
| 19M-15-00022 | HOUSING ASS'Y | (10065)- | ||
| 19M-15-00021 | HOUSING ASS'Y | 10101-(10064) | ||
| 18 | \6\ | HOUSING | (10065)- | |
| 18 | \6\ | HOUSING | 10101-(10065) | |
| 19 | \6\ | PLUG | 10101- | |
| 20 | 19M-15-11251 | BOLT | 10101- | |
| 21 | 566-15-11250 | WASHER | 10101- | |
| 22 | 19M-15-22820 | DISC | 10101- | |
| 23 | 19M-15-12731 | PLATE | 10101- | |
| 24 | 195-15-12880 | SPRING | 10101- |
