| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (561-15-61001) | TRANSMISSION ASS'Y | 4188- | ||
| (\0\561-15-51051) | TRANSMISSION ASS'Y | (1275)-004187 | ||
| (561-15-51050) | TRANSMISSION ASS'Y | 4001-(1274) | ||

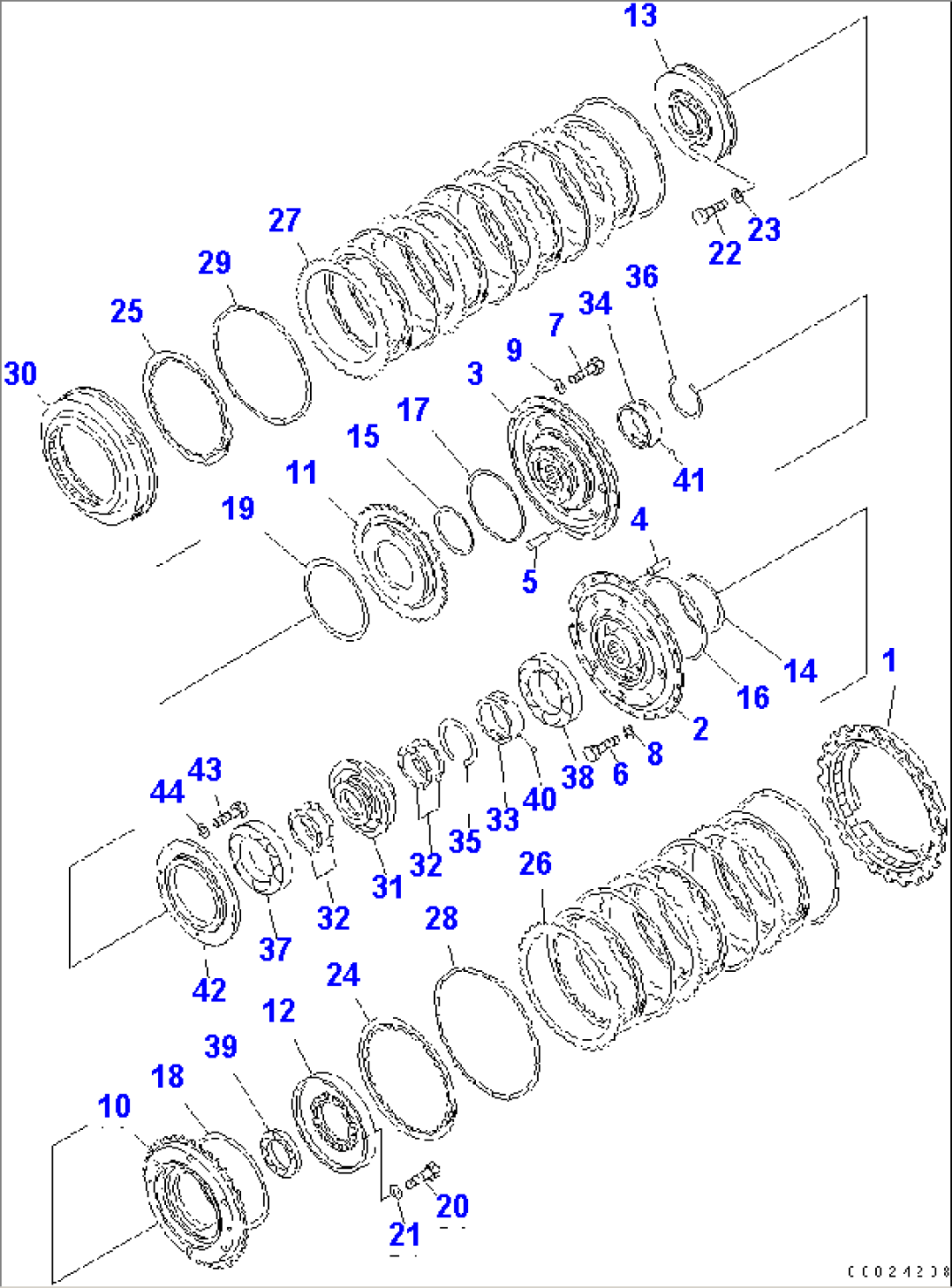

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F3320-51A0 TO F3320-64A0. | ||||
| 1 | 561-15-52671 | DRUM | 4001- | |
| 2 | 561-15-51212 | HOUSING | 4001- | |
| 3 | 561-15-51212 | HOUSING | 4001- | |
| 4 | 04020-01228 | PIN | 4001- | |
| 5 | 04020-01228 | PIN | 4001- | |
| 6 | 01010-81230 | BOLT | 4001- | |
| 7 | 01010-81230 | BOLT | 4001- | |
| 8 | 01643-31232 | WASHER | 4001- | |
| 9 | 01643-31232 | WASHER | 4001- | |
| 10 | 561-15-52880 | PISTON | 4001- | |
| 11 | 561-15-52880 | PISTON | 4001- | |
| 12 | 561-15-52321 | COVER | 4001- | |
| 13 | 561-15-52321 | COVER | 4001- | |
| 14 | 232-15-19270 | RING,SEAL (K2) | (1079)- | |
| 561-15-59210 | RING,SEAL (K2) | 4001-(1078) | ||
| 15 | 232-15-19270 | RING,SEAL (K2) | (1079)- | |
| 561-15-59210 | RING,SEAL (K2) | 4001-(1078) | ||
| 16 | 561-15-59220 | RING,SEAL (K2) | 4001- | |
| 17 | 561-15-59220 | RING,SEAL (K2) | 4001- | |
| 18 | 561-15-59230 | RING,SEAL (K2) | 4001- | |
| 19 | 561-15-59230 | RING,SEAL (K2) | 4001- | |
| 20 | 01010-81025 | BOLT | 4001- | |
| 21 | 01643-31032 | WASHER | 4001- | |
| 22 | 01010-81025 | BOLT | 4001- | |
| 23 | 01643-31032 | WASHER | 4001- | |
| 24 | 561-15-42721 | DISC | 4001- | |
| 25 | 561-15-42721 | DISC | 4001- | |
| 26 | 561-15-52960 | PLATE | 4001- | |
| 27 | 561-15-52960 | PLATE | 4001- | |
| 28 | 561-15-49810 | SPRING | 4001- | |
| 29 | 561-15-49810 | SPRING | 4001- | |
| 30 | 561-15-42650 | GEAR,RING | 4001- | |
| 31 | 561-15-51260 | COLLAR | 4001- | |
| 32 | 569-15-49260 | RING,SEAL | 4001- | |
| 33 | 561-15-51230 | BUSHING | 4001- | |
| 34 | 561-15-51230 | BUSHING | 4001- | |
| 35 | 04077-00150 | RING | 4001- | |
| 36 | 04077-00150 | RING | 4001- | |
| 37 | 561-15-59610 | BEARING | 4001- | |
| 38 | 561-15-59610 | BEARING | 4001- | |
| 39 | 561-15-59310 | BEARING | 4001- | |
| 40 | 04260-00635 | BALL | 4001- | |
| 41 | 04260-00635 | BALL | 4001- | |
| 42 | 561-15-51270 | CAGE | 4001- | |
| 43 | 01010-81030 | BOLT | 4001- | |
| 44 | 01643-31032 | WASHER | 4001- |
