| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (714-11-10003) | TRANSMISSION ASS'Y | 54001- | ||
| (714-11-10043) | TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING) | 54001- | ||
| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-66A0. | ||||

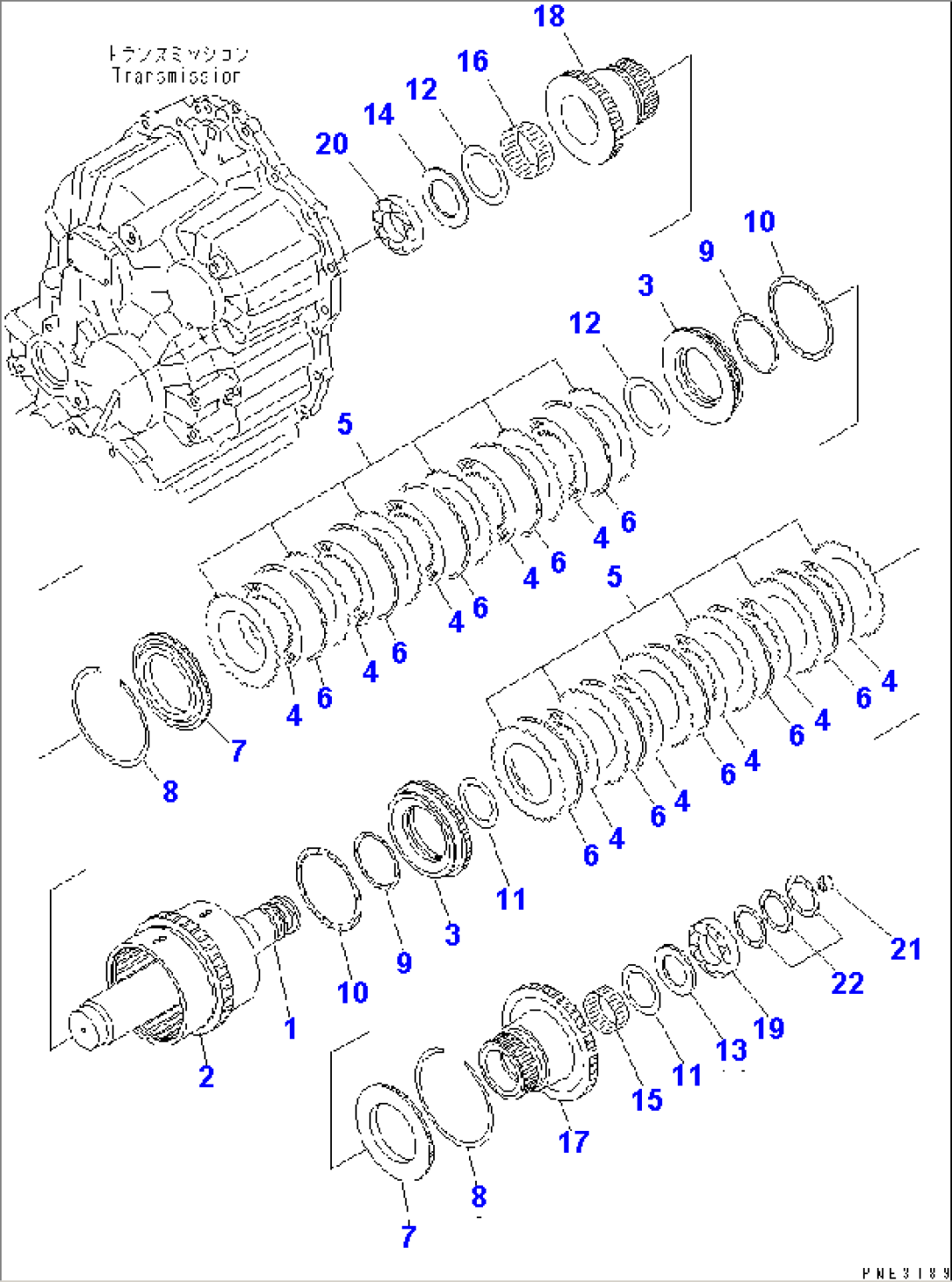

| 714-11-12030 | CLUTCH ASS'Y,3RD AND 4TH | 54001- | ||
| 714-11-12170 | SHAFT ASS'Y | 54001- | ||
| 1 | \6\ | SHAFT | 54001- | |
| 2 | \6\ | HOUSING ASS'Y | 54001- | |
| 3 | 714-11-12660 | PISTON,3RD AND 4TH | 54001- | |
| 4 | 714-08-19710 | DISC | 54001- | |
| 5 | 714-08-19730 | PLATE,SEPARATE | 54001- | |
| 6 | 714-08-12911 | SPRING,WAVE | 54001- | |
| 6 | (\2\714-08-12910) | SPRING,WAVE | (54001-(170423)) | |
| 7 | 714-08-12610 | PLATE,END | 54001- | |
| 8 | 714-08-19510 | RING,SNAP | 54001- | |
| 9 | 714-08-19210 | RING,SEAL | 54001- | |
| 10 | 714-11-19230 | RING,SEAL | 54001- | |
| 11 | 714-11-19510 | WASHER,THRUST | 54001- | |
| 12 | 714-08-19570 | WASHER,THRUST | 54001- | |
| 13 | 714-11-12710 | SPACER | 54001- | |
| 14 | 714-11-12720 | SPACER | 54001- | |
| 15 | 419-15-12271 | BEARING,NEEDLE | (68893)- | |
| 15 | \0\419-15-12270 | BEARING,NEEDLE | 54001-(68892) | |
| 16 | 714-23-19430 | BEARING,NEEDLE | (68893)- | |
| 16 | \0\419-15-13151 | BEARING,NEEDLE | 54001-(68892) | |
| 17 | 714-11-12460 | GEAR, 51 TEETH,4TH | 54001- | |
| 18 | 714-11-12470 | GEAR, 40-52 TEETH,3RD | 54001- | |
| 19 | 06040-06210 | BEARING | 54001- | |
| 20 | 06040-06312 | BEARING | 54001- | |
| 21 | 714-11-12850 | SCREW | 54001- | |
| 22 | 419-15-12122 | RING,SEAL | 54001- |
