| Item | Part No. | Part Name | Qty | Serial No. |
| 714-07-40000 | TRANSMISSION ASS'Y | 90001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0A TO F4350-65A0A AND F4350-66A0 TO F4350-70A0. | ||||
| 714-07-40010 | TRANSMISSION ASS'Y | 90001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A1A TO F4350-65A0A AND F4350-66A0 TO F4350-70A0. | ||||

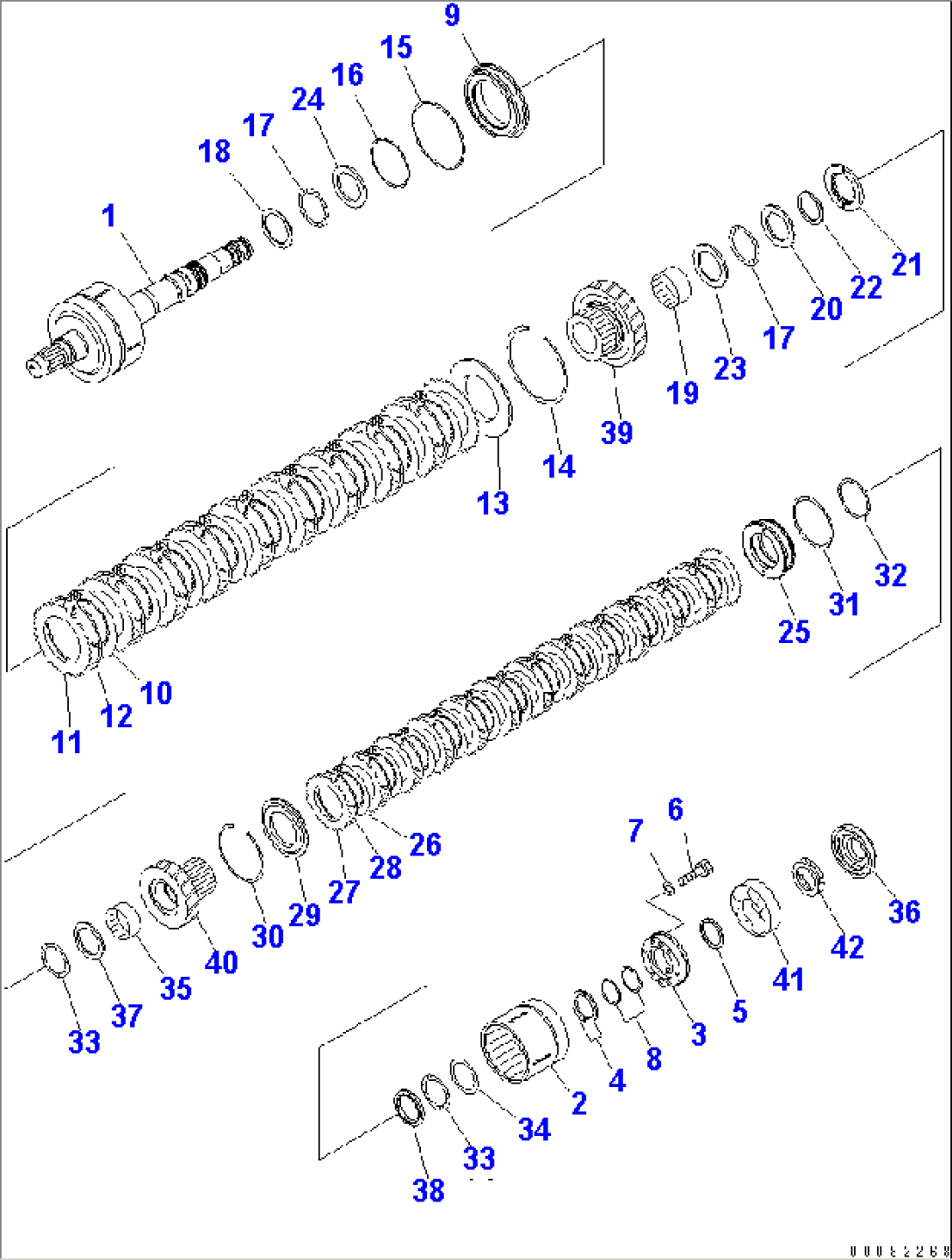

| 714-07-42030 | CLUTCH ASS'Y | 90001- | ||
| 1 | 714-07-42131 | SHAFT AND CYLINDER A,3RD AND 4TH | 90001- | |
| 1 | \6\ | SHAFT | 90001- | |
| 1 | \6\ | ORIFICE | 90001- | |
| 1 | \6\ | PLUG | 90001- | |
| 1 | \6\ | HOUSING | 90001- | |
| 1 | \6\ | SCREW, 3MM | 90001- | |
| 2 | 714-07-42591 | HOUSING | 90001- | |
| 3 | 714-07-47721 | COVER | 90001- | |
| 4 | 22W-15-16241 | COLLAR | 90001- | |
| 5 | 134-13-31580 | RING | 90001- | |
| 6 | 01010-80840 | BOLT | 90001- | |
| 7 | 01643-30823 | WASHER | 90001- | |
| 8 | 714-12-39210 | RING,SEAL (K1) | 90001- | |
| 9 | 714-16-12660 | PISTON | 90001- | |
| 10 | 714-12-19711 | DISC | 90001- | |
| 11 | 714-16-19730 | PLATE | 90001- | |
| 12 | 56D-15-12710 | SPRING | 90001- | |
| 13 | 714-12-12610 | PLATE | 90001- | |
| 14 | 419-15-12140 | RING,SNAP | 90001- | |
| 15 | 714-16-19230 | RING,SEAL (K1) | 90001- | |
| 16 | 714-16-19210 | RING,SEAL (K1) | 90001- | |
| 17 | 419-15-12670 | BEARING | 90001- | |
| 18 | 419-15-12680 | WASHER | 90001- | |
| 19 | 714-07-49460 | BEARING | 90001- | |
| 20 | 714-07-46151 | SPACER | 90001- | |
| 21 | 714-07-46161 | SPACER | 90001- | |
| 22 | 714-07-46171 | SPACER | 90001- | |
| 23 | 714-07-46250 | PLATE | 90001- | |
| 24 | 714-07-46270 | PLATE | 90001- | |
| 25 | 714-07-42631 | PISTON | 90001- | |
| 26 | 714-07-49741 | CLUTCH | 90001- | |
| 27 | 714-07-49751 | PLATE | 90001- | |
| 28 | 714-10-12811 | SPRING | 90001- | |
| 29 | 714-07-48281 | PLATE | 90001- | |
| 30 | 714-01-11380 | RING,SNAP | 90001- | |
| 31 | 714-10-19220 | RING,SEAL (K1) | 90001- | |
| 32 | 714-08-19210 | RING,SEAL (K1) | 90001- | |
| 33 | 419-15-12640 | BEARING | 90001- | |
| 34 | 419-15-12650 | WASHER | 90001- | |
| 35 | 714-23-19420 | BEARING | 90001- | |
| 36 | 714-07-46180 | SPACER | 90001- | |
| 37 | 714-07-46240 | PLATE | 90001- | |
| 38 | 714-07-46260 | PLATE | 90001- | |
| 39 | 714-07-42441 | GEAR,3RD | 90001- | |
| 40 | 714-07-42451 | GEAR,4TH | 90001- | |
| 41 | 714-07-49470 | BEARING | 90001- | |
| 42 | 714-07-49510 | BEARING | 90001- |
