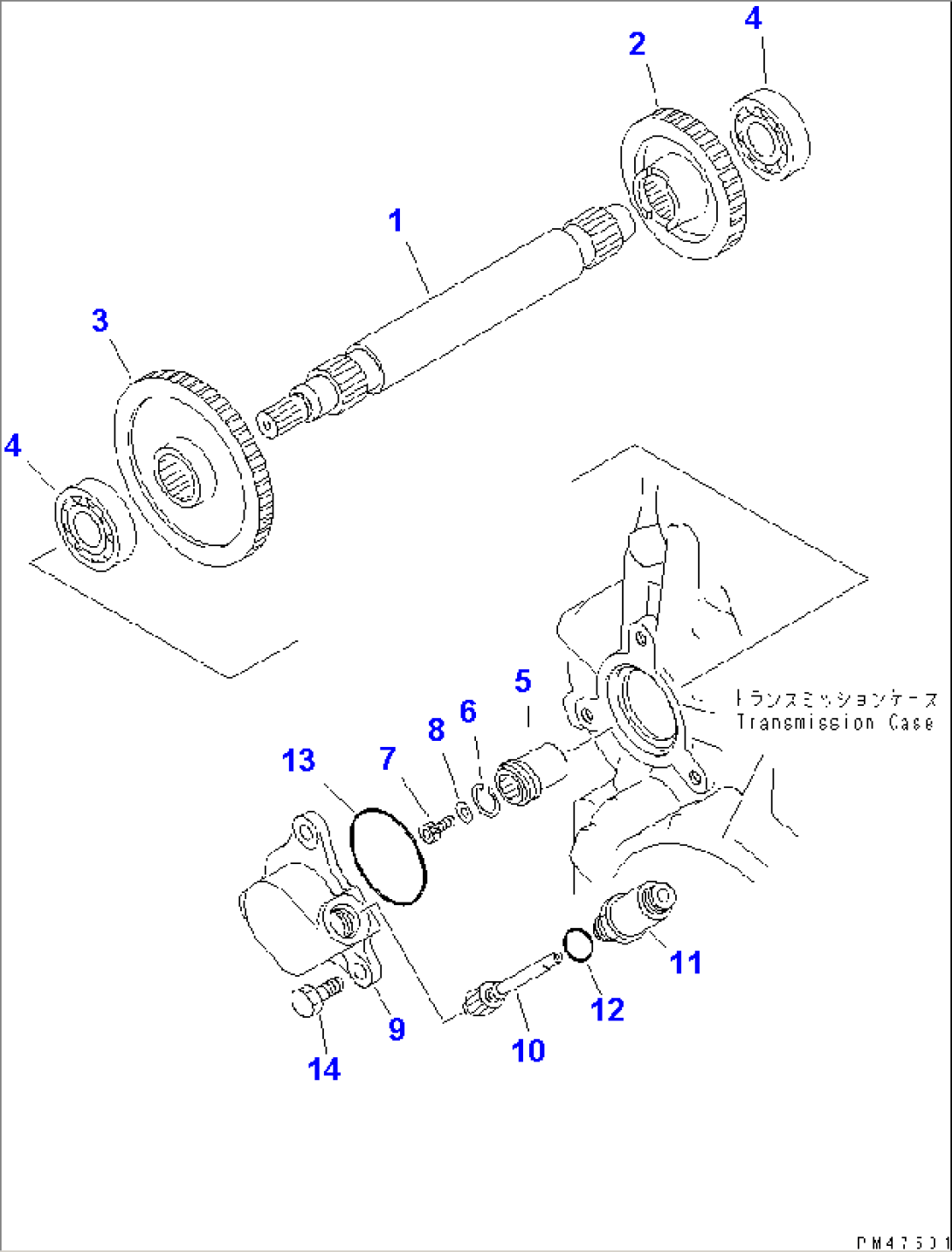

| Item | Part No. | Part Name | Qty | Serial No. |
| (714-11-10000) | TRANSMISSION ASS'Y | 50001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2201 TO 2271. | ||||
| 1 | 714-11-12250 | SHAFT,4TH | 50001- | |
| 2 | 714-11-12510 | GEAR, 33 TEETH,4TH | 50001- | |
| 3 | 714-11-12520 | GEAR, 45 TEETH,3RD | 50001- | |
| 4 | 06040-06306 | BEARING | 50001- | |
| 5 | 714-11-14690 | WORM | 50001- | |
| 6 | 04065-01910 | RING,SNAP | 50001- | |
| 7 | 01252-30816 | BOLT | 50001- | |
| 8 | 01643-30823 | WASHER | 50001- | |
| 9 | 714-11-11350 | RETAINER | 50001- | |
| 10 | 714-11-14670 | GEAR | 50001- | |
| 11 | 714-07-18660 | SLEEVE | 50001- | |
| 12 | 07002-02434 | O-RING | 50001- | |
| 13 | 07000-12085 | O-RING | 50001- | |
| 14 | 01010-61230 | BOLT | 50001- |
