| Item | Part No. | Part Name | Qty | Serial No. |
| (41E-15-00082) | TRANSMISSION ASS'Y,TORQFLOW | 10001- | ||

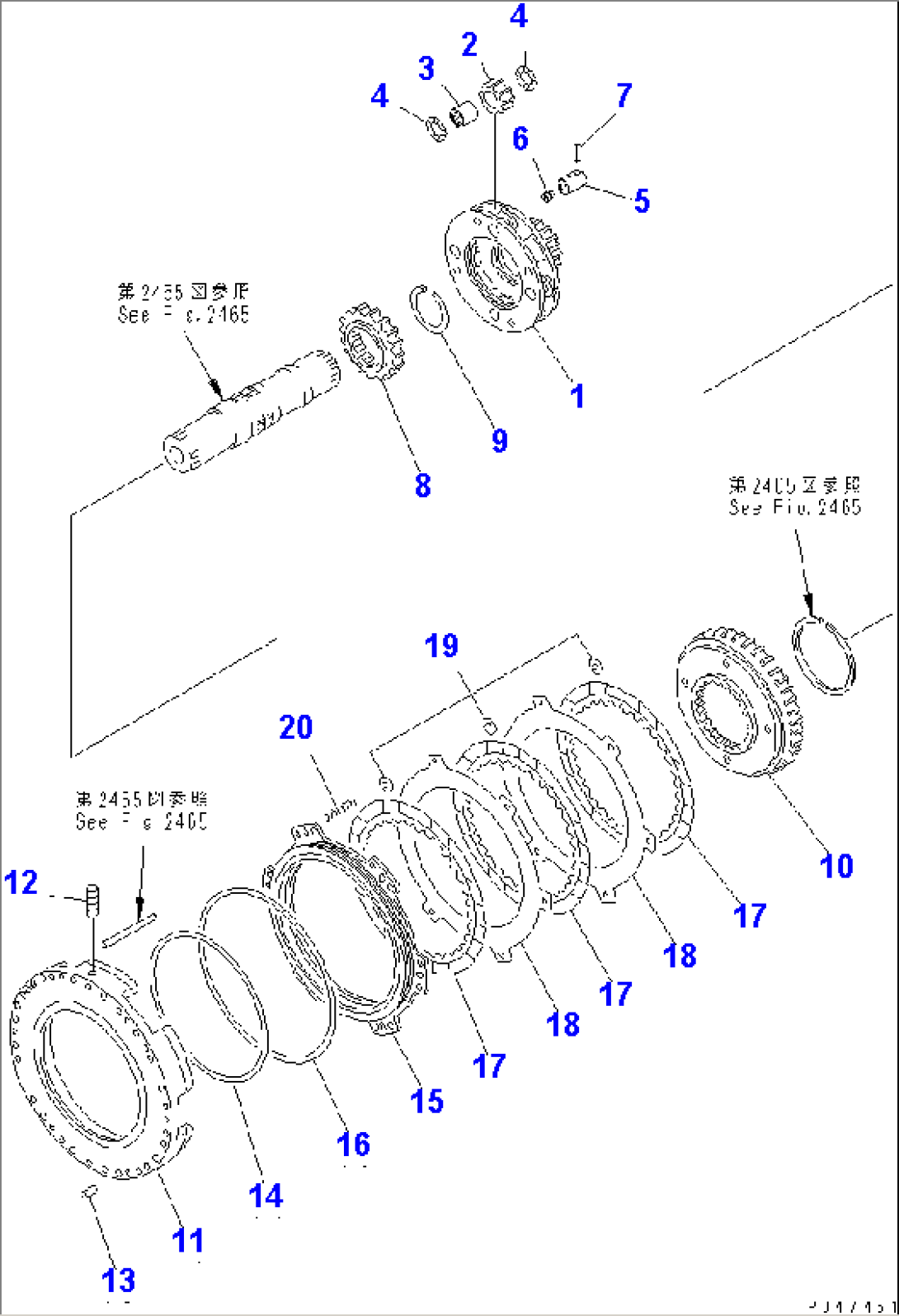

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2534. | ||||
| 1 | 426-15-12330 | CARRIER | 10001- | |
| 2 | 426-15-12430 | GEAR | 10001- | |
| 3 | 426-15-12960 | BEARING | 10001- | |
| 4 | 09233-13220 | WASHER,THRUST | 10001- | |
| 41E-15-00150 | SHAFT ASS'Y | 10001- | ||
| 5 | \6\ | SHAFT | 10001- | |
| 6 | 07043-50108 | PLUG | 10001- | |
| 7 | 04025-00624 | PIN,SPRING | 10001- | |
| 8 | 426-15-12240 | GEAR | 10001- | |
| 9 | 04064-09530 | RING,SNAP | 10001- | |
| 10 | 41E-15-12620 | GEAR,RING | 10001- | |
| 41E-15-00220 | HOUSING ASS'Y | 10001- | ||
| 11 | \6\ | HOUSING | 10001- | |
| 12 | 145-14-11320 | PLUG | 10001- | |
| 13 | 04020-01434 | PIN,DOWEL | 10001- | |
| 14 | 426-15-19210 | RING,SEAL (K2) | 10001- | |
| 15 | 426-15-12740 | PISTON | 10001- | |
| 16 | 175-15-59250 | RING,SEAL (K2) | 10001- | |
| 17 | 198-15-22810 | DISC | 10001- | |
| 18 | 426-15-12720 | PLATE | 10001- | |
| 19 | 175-15-42880 | SPRING | 10001- | |
| 20 | 234-15-15230 | SPRING, (L= 52.0) | 10001- |
