| Item | Part No. | Part Name | Qty | Serial No. |

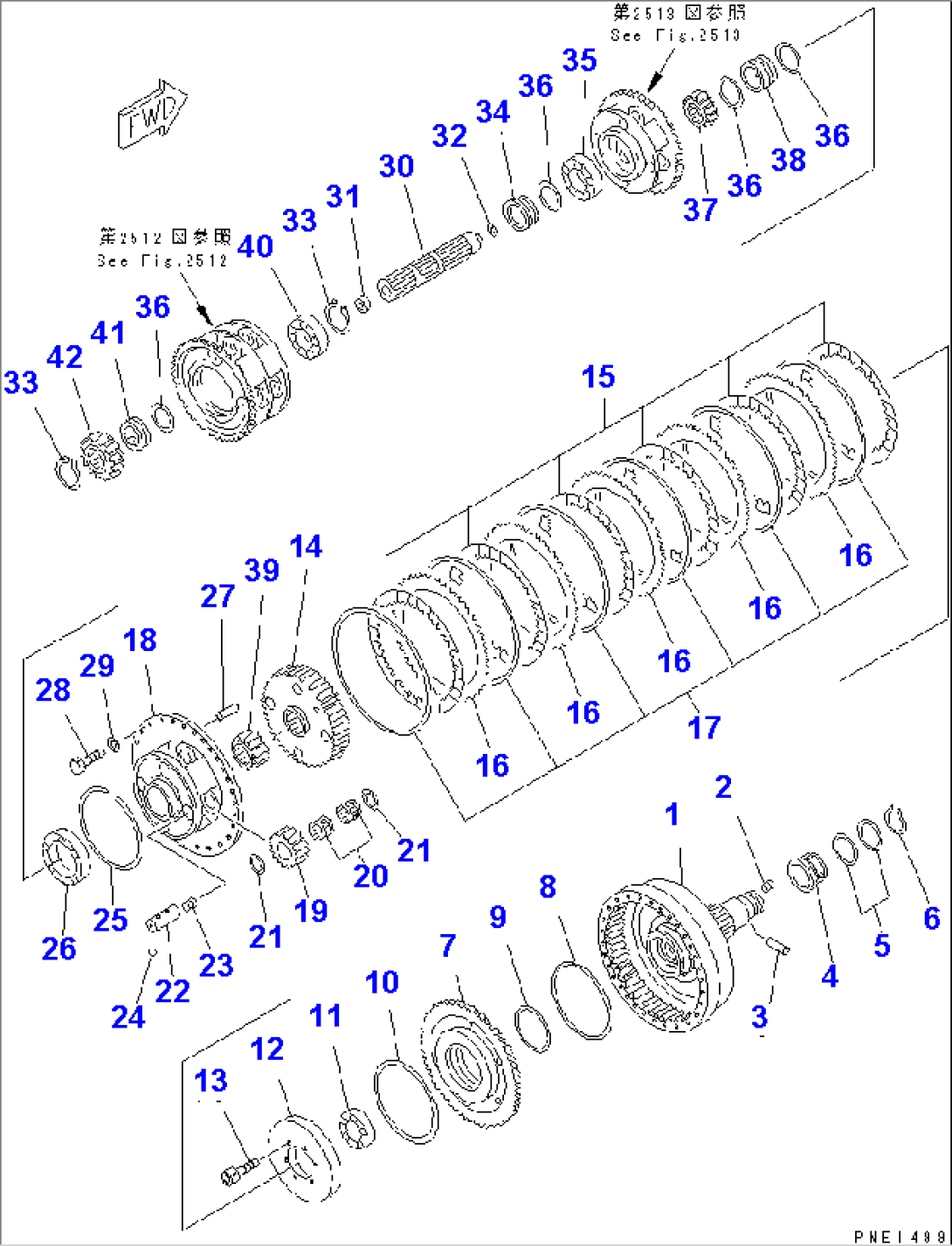

| (427-15-00013) | TRANSMISSION ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2534. | ||||
| 427-15-00111 | SHAFT ASS'Y | 10001- | ||
| 1 | \6\ | SHAFT | 10001- | |
| 2 | 234-15-12790 | SCREW | 10001- | |
| 3 | 04020-00616 | PIN,DOWEL | 10001- | |
| 4 | 427-15-13361 | COLLAR | 10001- | |
| 5 | 07018-21104 | RING,SEAL | 10001- | |
| 6 | 04064-08025 | RING,SNAP | 10001- | |
| 7 | 427-15-12750 | PISTON,3RD | 10001- | |
| 8 | 103-15-12820 | RING,SEAL (K3) | 10001- | |
| 9 | 562-15-19210 | RING,SEAL (K3) | 10001- | |
| 10 | 124-15-41920 | RING,SEAL (K3) | 10001- | |
| 11 | 06000-06214 | BEARING | 10001- | |
| 12 | 427-15-12790 | COVER | 10001- | |
| 13 | 01252-31035 | BOLT | 10001- | |
| 14 | 427-15-12270 | HUB | 10001- | |
| 15 | 198-15-22810 | DISC | 10001- | |
| 16 | 427-15-12730 | PLATE | 10001- | |
| 17 | 427-15-19810 | SPRING,WAVE | 10001- | |
| 18 | 427-15-12340 | CARRIER | 10001- | |
| 19 | 427-15-12440 | GEAR | 10001- | |
| 20 | 582-15-19720 | BEARING | 10001- | |
| 21 | 427-15-12560 | WASHER,THRUST | 10001- | |
| 427-15-00150 | SHAFT ASS'Y | 10001- | ||
| 22 | \6\ | SHAFT | 10001- | |
| 23 | 568-15-11380 | PLUG | 10001- | |
| 24 | 04260-00635 | BALL | 10001- | |
| 25 | 427-15-19520 | RING | 10001- | |
| 26 | 06000-06926 | BEARING | 10001- | |
| 27 | 04020-01434 | PIN,DOWEL | 10001- | |
| 28 | 01010-51435 | BOLT | 10001- | |
| 29 | 01643-31445 | WASHER | 10001- | |
| 30 | 427-15-12120 | SHAFT | 10001- | |
| 31 | 427-15-19420 | BUSHING | 10001- | |
| 32 | 07018-10352 | RING,SEAL | 10001- | |
| 33 | 04064-08025 | RING,SNAP | 10001- | |
| 34 | 427-15-12170 | COLLAR | 10001- | |
| 35 | 06000-06020 | BEARING | 10001- | |
| 36 | 07018-11004 | RING,SEAL | 10001- | |
| 37 | 427-15-12230 | GEAR | 10001- | |
| 38 | 427-15-12150 | COLLAR | 10001- | |
| 39 | 427-15-12240 | GEAR | 10001- | |
| 40 | 06000-06016 | BEARING | 10001- | |
| 41 | 427-15-12160 | COLLAR | 10001- | |
| 42 | 427-15-12220 | GEAR | 10001- |
