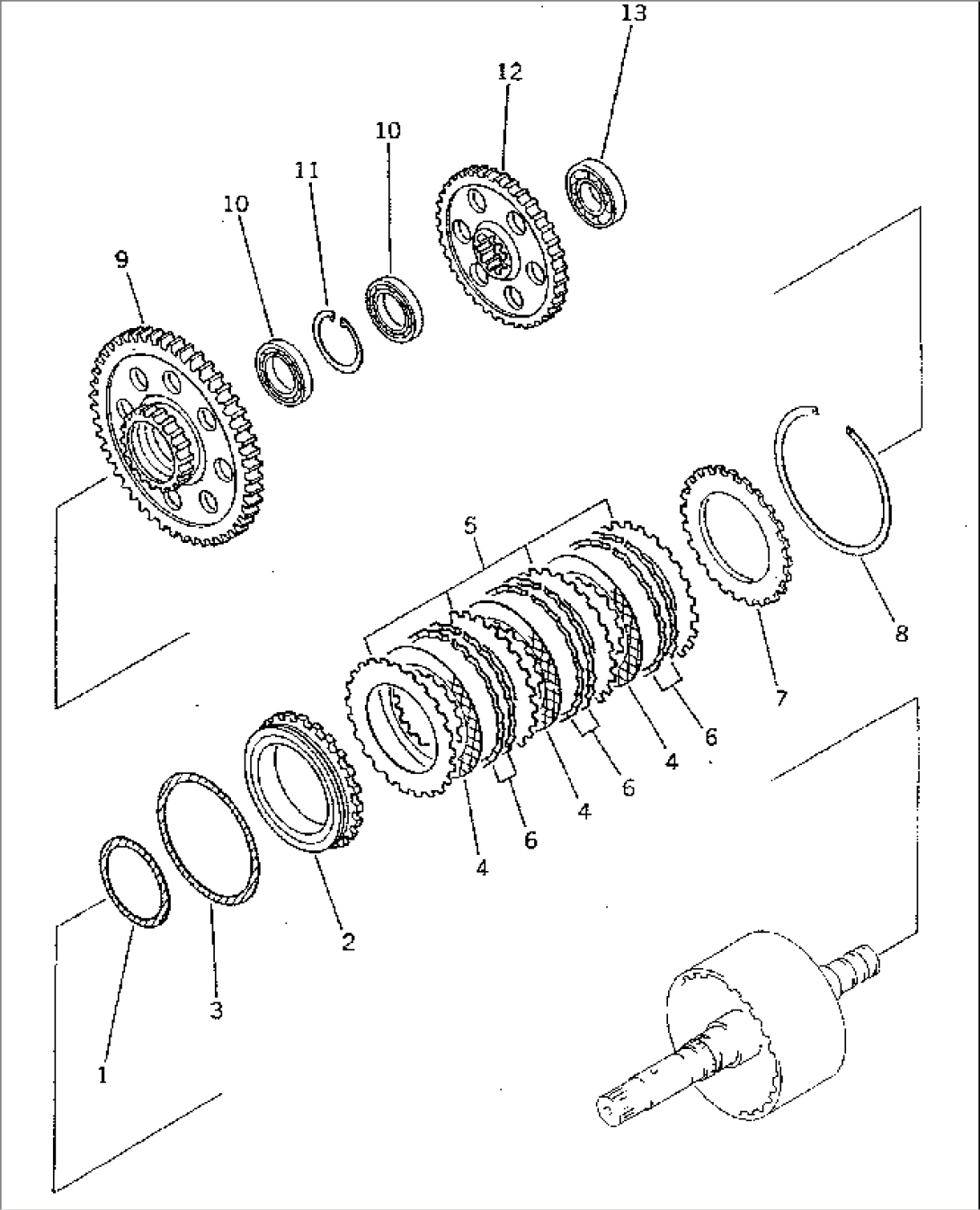

| Item | Part No. | Part Name | Qty | Serial No. |
| (415-15-11001) | TRANSMISSION ASS'Y | 10001-11999 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2111 TO 2142. | ||||
| (415-15-12502) | CLUTCH ASS'Y,2ND AND 3RD | 10001-11999 | ||
| (\2\415-15-12501) | CLUTCH ASS'Y,2ND AND 3RD | (10001-10776) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2134 AND 2135. | ||||
| 1 | 419-15-12210 | RING,SEAL (K1) | 10001-11999 | |
| 2 | 415-15-12711 | PISTON | 10001-11999 | |
| 3 | 419-15-12580 | RING,SEAL (K1) | 10001-11999 | |
| 4 | 419-15-12290 | DISC | 10001-11999 | |
| 5 | 419-15-12310 | PLATE,SEPARATE | 10001-11999 | |
| 6 | 419-15-12132 | SPRING,WAVE | 10001-11999 | |
| 7 | 419-15-12280 | PLATE,END | 10001-11999 | |
| 8 | 419-15-12140 | RING,SNAP | 10001-@ | |
| 9 | 415-15-12830 | GEAR,3RD | 10001-11999 | |
| 10 | 06030-06910 | BEARING | 10001-11999 | |
| 11 | 04065-07225 | RING,SNAP | 10001-11999 | |
| 12 | 415-15-12810 | GEAR | 10001-11999 | |
| 13 | 06030-06208 | BEARING | 10001-11999 |
