| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (415-15-11002) | TRANSMISSION ASS'Y | 12001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2111 TO 2142A. | ||||

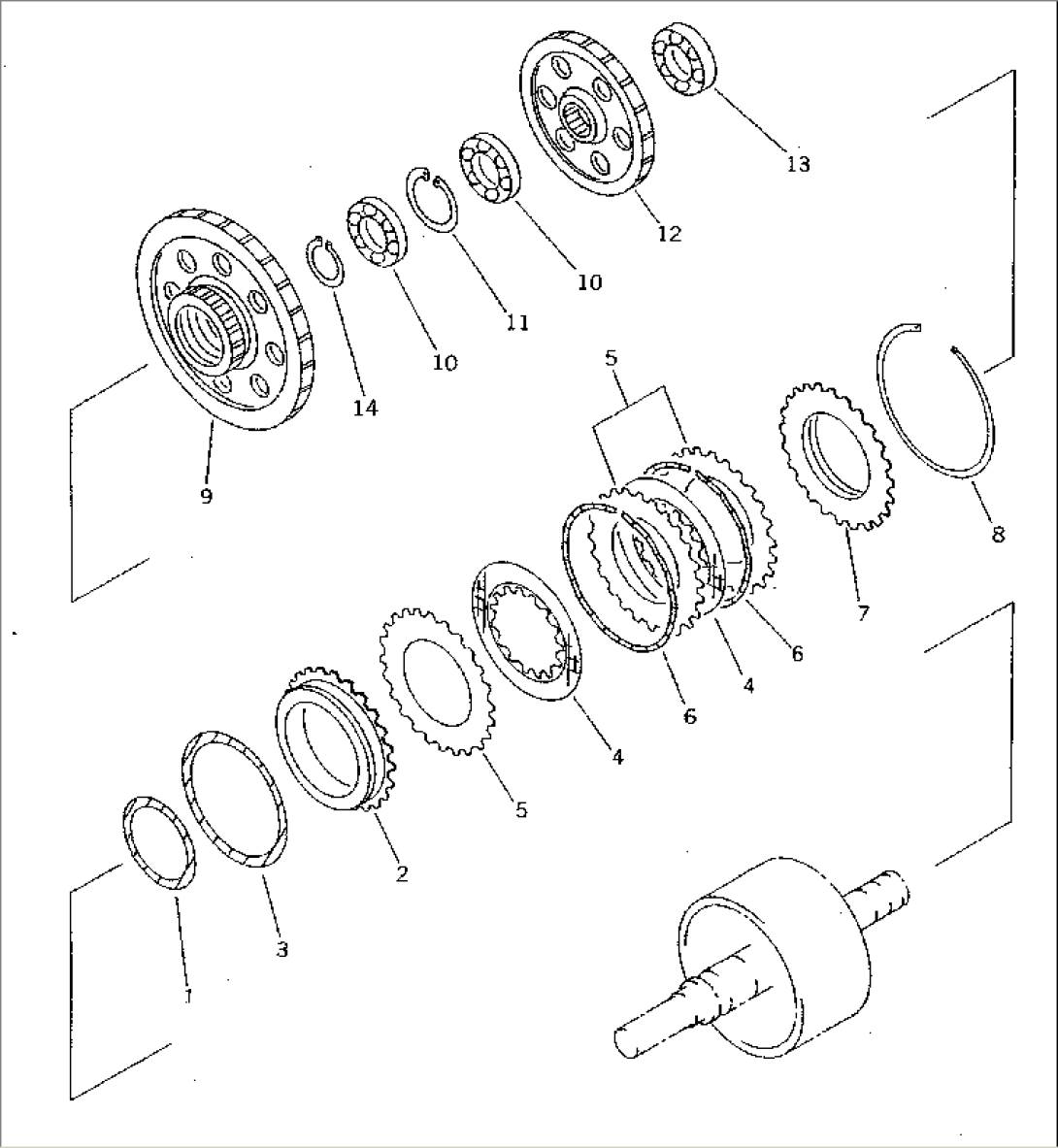

| (415-15-12504) | CLUTCH ASS'Y,2ND AND 3RD | 14615- | ||
| (415-15-12503) | CLUTCH ASS'Y,2ND AND 3RD | 12001-14614 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2134A AND 2135A. | ||||
| 1 | 415-15-12370 | RING,SEAL (K1) | 12001- | |
| 2 | 415-15-12712 | PISTON | 12001- | |
| 3 | 415-15-12750 | RING,SEAL (K1) | 12001- | |
| 4 | 7720-50-2590 | DISC | 14615- | |
| 4 | 419-15-12910 | DISC | 12001-14614 | |
| 5 | 714-16-19730 | PLATE,SEPARATE | (120125)- | |
| 5 | 419-15-12310 | PLATE,SEPARATE | 14615-(120124) | |
| 5 | 419-15-12310 | PLATE,SEPARATE | 12001-14614 | |
| 6 | 56D-15-12710 | SPRING,WAVE | 60280- | |
| 6 | \0\419-15-12133 | SPRING,WAVE | 14615-60279 | |
| 6 | 419-15-12133 | SPRING,WAVE | 12001-14614 | |
| 7 | 419-15-12281 | PLATE,END | 12001- | |
| 8 | 419-15-12140 | RING,SNAP | 10001- | |
| 9 | 415-15-12831 | GEAR, 65 TEETH,3RD | 12001- | |
| 10 | 06030-06010 | BEARING | 12001- | |
| 11 | 04065-08025 | RING,SNAP | 12001- | |
| 12 | 415-15-12811 | GEAR, 52 TEETH | 12001- | |
| 13 | 06030-06208 | BEARING | 10001- | |
| 14 | 04064-05020 | RING,RING | 12001- |
