| Item | Part No. | Part Name | Qty | Serial No. |
| 124-15-51010 | TRANSMISSION ASSEMBLY | B40001- | ||

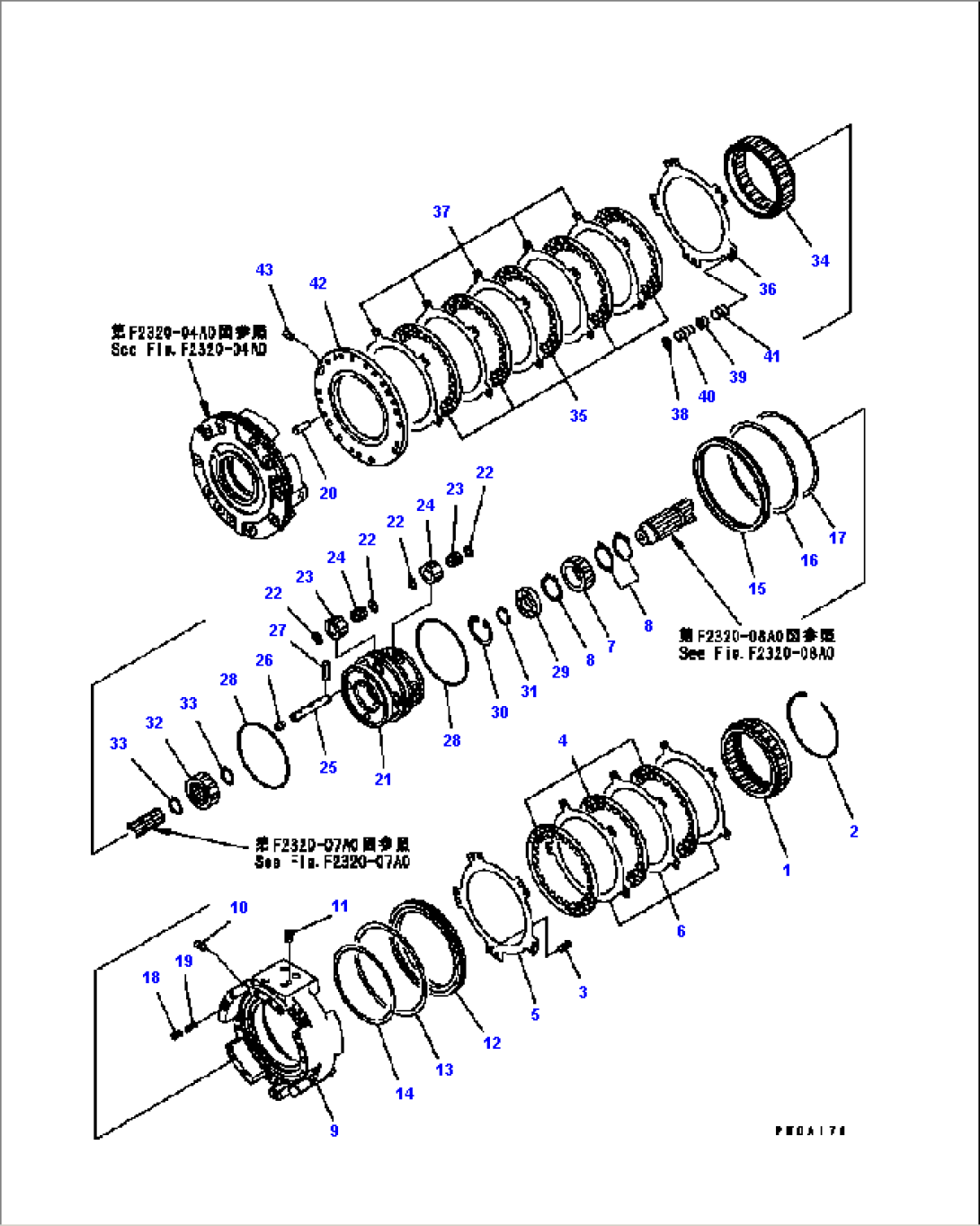

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-01A0 TO F2320-13A0. | ||||
| 1 | 124-15-52640 | GEAR, RING | B40001- | |
| 2 | 113-15-29510 | RING | B40001- | |
| 3 | 113-15-22920 | SPRING, (L= 29.0) | B40001- | |
| 4 | 124-15-52710 | DISC | B40001- | |
| 5 | 113-15-22720 | PLATE | B40001- | |
| 6 | 113-15-22730 | PLATE | B40001- | |
| 7 | 124-15-52230 | GEAR, 34 TEETH | B40001- | |
| 8 | 04064-04819 | RING | B40001- | |
| 124-15-01030 | HOUSING ASSEMBLY, 3RD AND FORWARD | B40001- | ||
| 9 | \6\ | HOUSING, 3RD AND FORWARD | B40001- | |
| 10 | 145-14-11320 | PLUG | B40001- | |
| 11 | 07043-70108 | PLUG | B40001- | |
| 12 | 103-15-22730 | PISTON | B40001- | |
| 13 | 103-15-29210 | SEAL (K1) | B40001- | |
| 14 | 113-15-29220 | RING, SEAL (K1) | B40001- | |
| 15 | 124-15-52750 | PISTON | B40001- | |
| 16 | 113-15-29250 | RING (K1) | B40001- | |
| 17 | 113-15-29261 | RING (K1) | B40001- | |
| 18 | 287-15-15360 | PISTON | B40001- | |
| 19 | 195-15-15261 | SPRING, (L= 25.4) | B40001- | |
| 20 | 113-15-21290 | PIN, (D=10.0, L= 35.0) | B40001- | |
| 21 | 124-15-52320 | CARRIER | B40001- | |
| 22 | 113-15-32560 | WASHER, THRUST | B40001- | |
| 23 | 124-15-52420 | GEAR, 19 TEETH | B40001- | |
| 24 | 124-15-59420 | BEARING | B40001- | |
| 12G-15-01040 | SHAFT ASSEMBLY | B40001- | ||
| 25 | \6\ | SHAFT | B40001- | |
| 26 | 145-14-11320 | PLUG | B40001- | |
| 27 | 124-15-52960 | PIN, (D= 3.0, L= 14.0) | B40001- | |
| 28 | 113-15-29240 | SEAL | B40001- | |
| 29 | 06000-06007 | BEARING | B40001- | |
| 30 | 04065-06220 | RING | B40001- | |
| 31 | 04064-03515 | RING | B40001- | |
| 32 | 124-15-52220 | GEAR, 34 TEETH | B40001- | |
| 33 | 04064-03215 | RING | B40001- | |
| 34 | 124-15-52631 | GEAR, RING | B40001- | |
| 35 | 124-15-52710 | DISC | B40001- | |
| 36 | 113-15-22720 | PLATE | B40001- | |
| 37 | 113-15-22730 | PLATE | B40001- | |
| 38 | 01643-51032 | WASHER | B40001- | |
| 39 | 362-15-12810 | GUIDE | B40001- | |
| 40 | 113-15-42910 | SPRING, (L= 18.65) | B40001- | |
| 41 | 113-15-42920 | SPRING, (L= 22.93) | B40001- | |
| 12G-15-01050 | PLATE ASSEMBLY | B40001- | ||
| 42 | \6\ | PLATE | B40001- | |
| 43 | 125-15-11230 | PLUG | B40001- |
