| Item | Part No. | Part Name | Qty | Serial No. |
| (569-15-71001) | TRANSMISSION ASS'Y | 10716- | ||
| (569-15-71000) | TRANSMISSION ASS'Y | 8001-10715 | ||

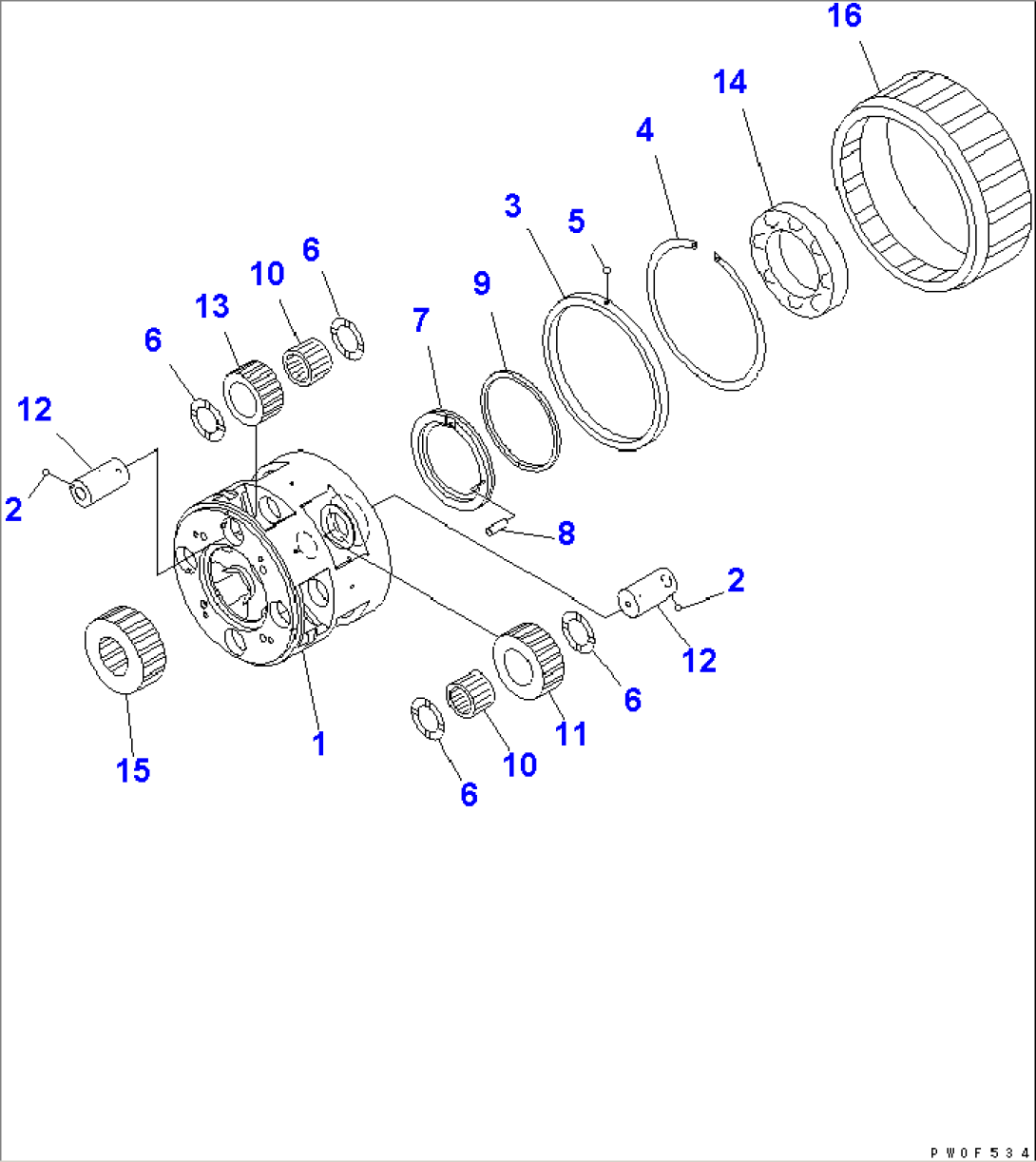

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F3320-51A2 TO F3320-66A2. | ||||
| 1 | 569-15-52351 | CARRIER | 8001- | |
| 2 | 04260-00635 | BALL | 8001- | |
| 3 | 569-15-52390 | COLLAR | 8001- | |
| 4 | 113-15-12430 | RING | 8001- | |
| 5 | 04260-00635 | BALL | 8001- | |
| 6 | 569-15-32590 | WASHER | 8001- | |
| 7 | 569-15-42361 | SPACER | 8001- | |
| 8 | 04020-00616 | PIN | 8001- | |
| 9 | 14X-15-29210 | RING (K2) | 8001- | |
| 10 | 569-15-39420 | BEARING | 8001- | |
| 11 | 569-15-32450 | GEAR | 8001- | |
| 12 | 569-15-32541 | SHAFT | (101444)- | |
| 12 | 569-15-32540 | SHAFT | 8001-(101443) | |
| 13 | 569-15-32440 | GEAR | 8001- | |
| 14 | 566-15-69640 | BEARING | 8001- | |
| 15 | 569-15-32250 | GEAR | 8001- | |
| 16 | 569-15-32610 | GEAR | 8001- |
